UGREEN 10902 M.2 PCIE NVMe SSD Enclosure
Fetaures:
Portable NVMe M.2 SSD External Enclosure
UGREEN M.2 USB-C Enclosure is designed to house an M-Key or M+B Key NVMe PCIe SSD and turn it into a portable USB 3.1 external drive for maximum utilization. Tool-free and no driver needed, just plug and play. Ideal for cloning files, backing up data, reusing old M.2 SSD, expanding storage space.

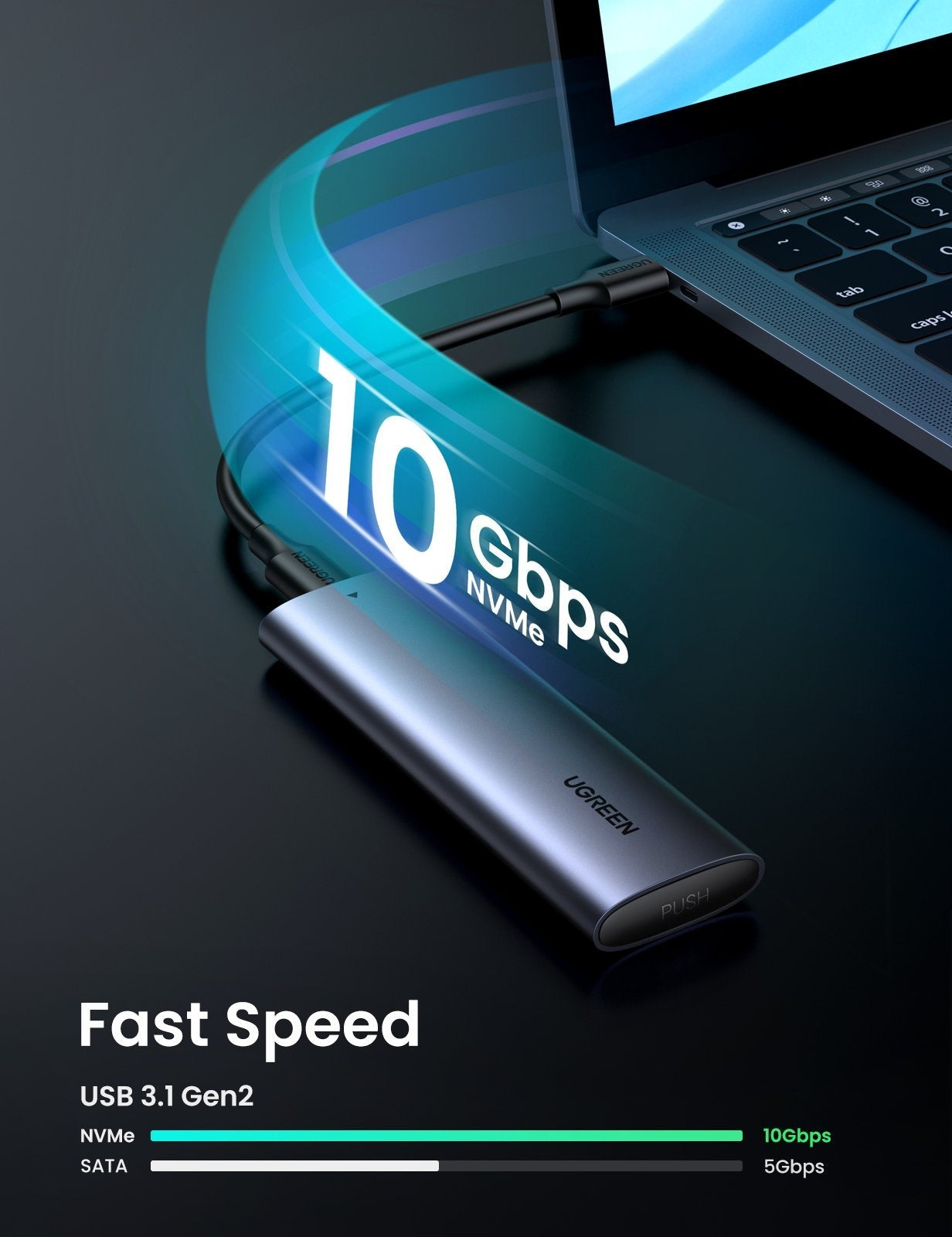

10Gbp SuperSpeed & UASP Supported
The USB 3.1 interface incorporates with UASP (USB Attached SCSI Protocol) that enables it to perform a 70% faster read speed and 40% faster write speed than conventional USB 3.1 when used with a UASP-enabled host computer.
Main Features
Plug & Play and Hot-Swapping. Easy installation & no driver required. No additional power required.
Support all 2230 2242 2260 2280 PCIe NVMe M.2 SSD of M-Key or M+B Key form factor.
Support UASP, S.M.A.R.T and TRIM.
Constructed with aluminum alloy which is better for heat dissipation, no worry about over-heat.
Built with short-circuit, over-current and multi-protection to ensure safety for your SSD and valuable data.

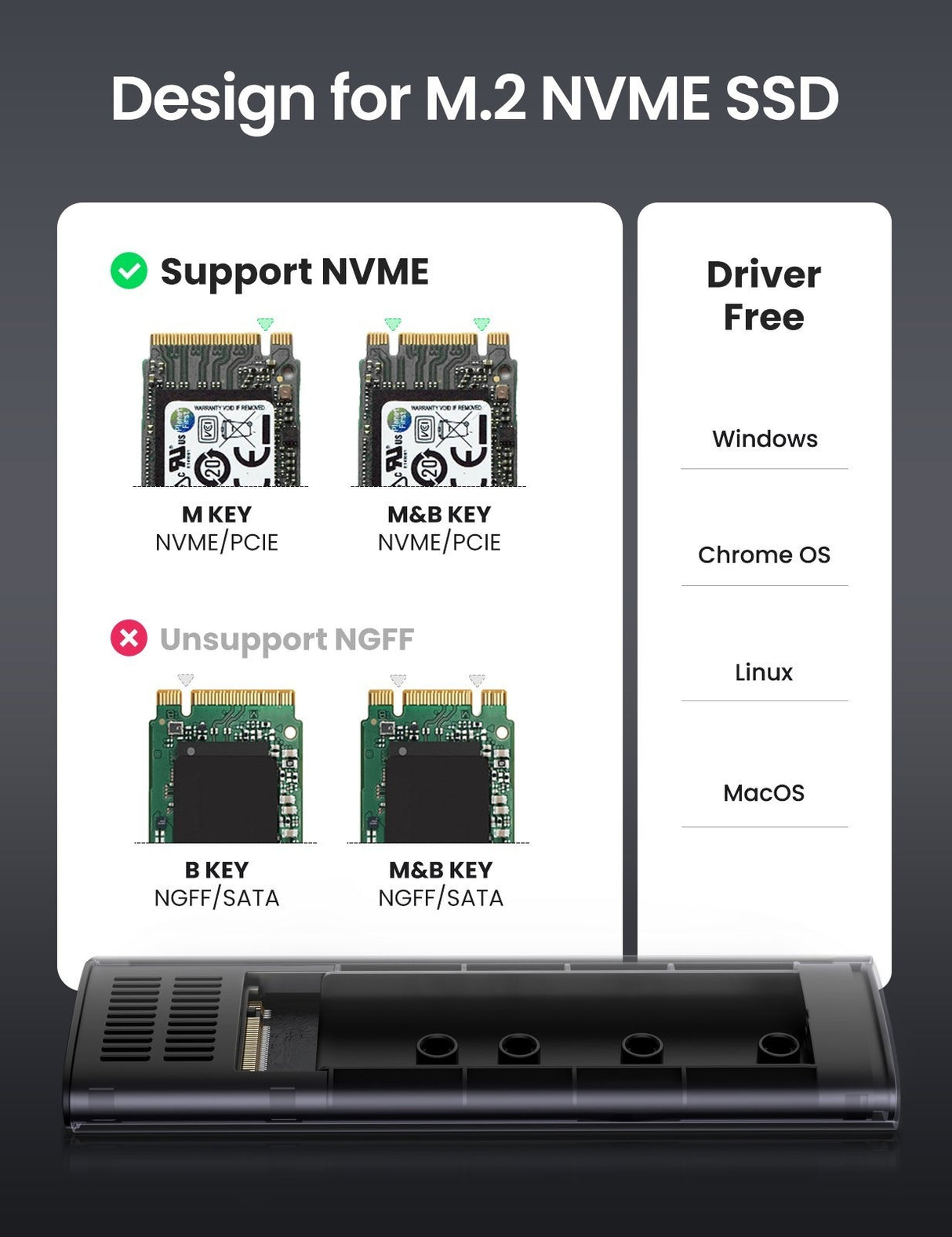

Designed for NVMe PCIe M.2 SSD
The NVMe M.2 Caddy features a sleek and compact size(L122 × W40 × H12mm), it is specially designed for M-Key and M+B Key PCIe NVMe M.2 SSD of 2230/2242/2260/2280 from factors up to 2TB, Does not support NGFF SATA based B-Key and M&B-Key M.2 SSD, M.2 PCIe AHCI SSD, mSATA SSD.
Wide Compatibility
M-Key M.2 SSD: Compatible with Samsung 970 EVO Plus 250GB/500GB/1TB, Samsung 970 EVO 250GB/500GB/1TB/2TB, Samsung 970 Pro, Samsung 960 EVO, Samsung 950 PRO, Crucial P1 500GB/1TB, WD Black SN750 250GB/500GB/1TB/2TB, WD Blue SN500 2280, Intel 760P Series, ADATA XPG SX8000/XPG SX8200, CORSAIR Force Series, Plextor M8Pe, Plextor M9Pe, HP EX900, Kingston A1000, PNY CS2030,Seagate BarraCuda 510/ FireCuda 510, EXTREME PRO 3D SSD 500GB/1GB;
M+B Key M.2 NVMe PCIe SSD: Compatible with Kingston A1000, Intel Optane 800P, Toshiba RC100, Pioneer APS-SE10G-512;
USB USB-C & USB-A Devices Supported
For USB-A devices, compatible with Sony PlayStation 4,PS4 Slim,PS4 Pro,PS3, Xbox One S, USB-A to USB-C Cable is requested (not included)
Specifications:
Input: USB-C Female
Output: M.2 M-Key
USB Standard: USB 3.1 Gen 2; 10Gbps
Supported SSD type: M.2 PCI-E NVMe SSD
Supported SSD size: 2230, 2242, 2260, 2280
Case Material: Aluminum alloy
Compatible Systems: Windows/ mac OS/ Linux
Dimension: L119mm x W37mm x H12mm
Note:
1. Not support NGFF SATA SSD.
2. Only support PCIe NVME M-Key M.2 SSD. Not Support PCIe AHCI M.2 SSD or M.2 NGFF SATA SSD. Some SSDs have both AHCI & NVMe or SATA & NVMe editions available. For example, Samsung SM951 SSD.
3. To achieve a 10Gbps data transmission rate, the USB 3.1 interface on your PC should be USB 3.1 Gen 2. Some PCs only come with USB 3.1 Gen1 whose max speed is 5Gbps.
4. It is normal that the aluminum case heating up, for the high-speed NVMe M.2 drives generates much heat while working.
5. If your M.2 SSD is the first use, you should format it before using. Only in this way can SSD be recognized by computers.
Package Content:
1 x M.2 PCIE NVMe SSD Enclosure
1 x User Manual
