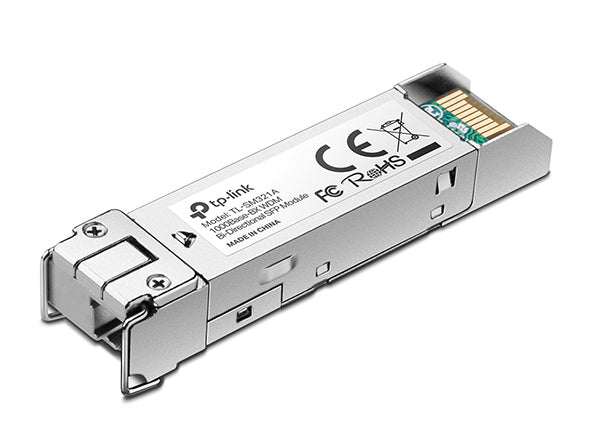

TP-Link Bi-Directional 1000Base-BX WDM SFP Module (TL-SM321A-2) - 1550 nm TX & 1310 nm RX, 2 KM Max Cable Length

TP-LINK 1000Base-BX WDM Bi-Directional SFP Module (TL-SM321A-2)

Unlock the full potential of your network with the TP-LINK 1000Base-BX WDM Bi-Directional SFP Module (TL-SM321A-2). Designed for optimal performance and reliability, this module is perfect for demanding networking environments.

Key Features:

• Latest Technology: Adopts the advanced 1000Base-BX standard for high-speed networking.
• Extended Range: Achieve up to 2 km transmission distance using 9/125 μm Single-Mode Fiber (SMF) for enhanced connectivity.
• Compatibility: Fully compatible with the Small Form Pluggable Multi-Source Agreement (SFP-MSA), ensuring seamless integration with various networking equipment.
• Digital Diagnostic Monitoring (DDM): Monitor your device's performance and status in real-time with built-in DDM support.
• Hot Swappable: Easily replace the module without shutting down your system, minimizing downtime and maximizing efficiency.

Specifications:

• Standards and Protocols: IEEE 802.3z, TCP/IP
• Wavelength: TX: 1550 nm, RX: 1310 nm
• Power Supply: 3.3 V
• Safety & Emission: Complies with FCC and CE standards
• Fiber Type: Single-Mode Fiber, 9/125 μm
• Max. Cable Length: 2 KM
• Data Rate: 1.25 Gbps
• Port Type: LC Simplex

Operating Conditions:

• Operating Temperature: 0–70 °C (32–158 °F)
• Storage Temperature: -40–85 °C (-40–185 °F)
• Operating Humidity: 10–90% RH, Non-Condensing
• Storage Humidity: 5–90% RH, Non-Condensing

Elevate your network's capabilities with the TP-LINK 1000Base-BX WDM Bi-Directional SFP Module, where reliability meets performance.
