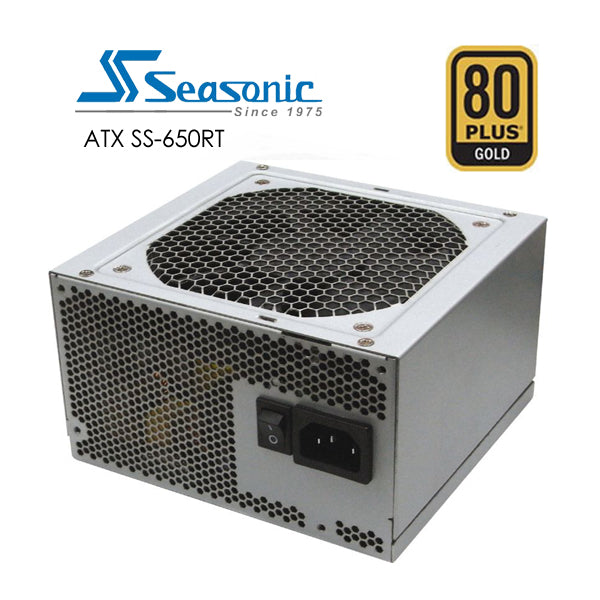

Seasonic Switch Mode Power Supply ATX12V (v2.31), SS-650RT (Active PFC)
Features:
- 80 PLUS Gold (Up to 90% efficiency at 115Vac, 50% load)
- Support the latest Intel & AMD Socket
- PCI Express & Serial ATA ready
- DC to DC converter design
- Low ripple & noise
- Super low noise fan control
- Short circuit protection on all outputs
- Over voltage protection
- Over power protection
- 100% hi-pot test
- 100% burn in, high temperature cycled on/of
Specifications:
- Form factor: ATX
- Dimension: 150mm(L)*140mm(W)*86mm(H)
- Safety: CTUVus / CUL*, TUV, CB, BSMI (* for SSP-350GT )
- EMI/RFI: CE, FCC, C-tic
- Input frequency: 47/63 Hz
- Inrush current, cold start: 100Amax.
- Line regulation: +/-1% typical
- Load regulation: +/-5% typical
- Cross regulation: +/-5% typical
- Ripple / noise:1%
- MTBF, full load @ 25℃amb. : >100K hours (Excluding the DC fan)
- Power Factor Correction: Active PFC 99% typical
DC Output: | AC Input: 100~240Vac 50/60Hz | ||||||
Model | 3.3V | 5V | 12V1 | 12V2 | -12V | 5Vsb | Total Power |
SS-650RT | 20A | 20A | 54A | 54A | 0.3A | 2.5A | 650W |
100W | 648W | 3.6W | 12.5W | ||||
SS-550RT | 20A | 20A | 45A | 45A | 0.3A | 2.5A | 550W |
100W | 540W | 3.6W | 12.5W | ||||
SS-450RT | 20A | 20A | 37A | 37A | 0.3A | 2.5A | 450W |
100W | 444W | 3.6W | 12.5W | ||||
SS-350GT | 12A | 16A | 29A | 29A | 0.3A | 2.5A | 350W |
80W | 348W | 3.6W | 12.5W | ||||
Cables and Connections:
M/B wire(mm) | GPU wire(mm) | Peripheral wire(mm) | ||
24P | 4+4P | 6+2P | B/S/SATA | Length |
550 | 550 | 550/100 | 2SATA | 270/150 |
- EPS 4+4 PIN X 1
- 20+ 4 MAIN CONNECTOR X 1
- 4PIN MOLEX X 2
- LONG SATA X 4
- FLOPPY X 1
- 6+2 PIN PCI-E X 2
Connectors:
- Main Power (24/20P) x 1
- ATX12V (4P/8P) x 1
- Peripherals: SATA, HDD, FDD
