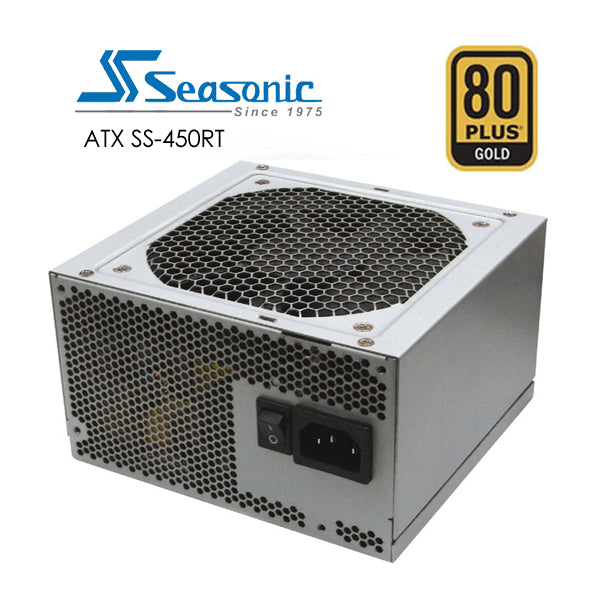

Seasonic Switch Mode Power Supply ATX12V (v2.31), SS-450RT (Active PFC)

$156.90
Out Of Stock
V28-PSUSEAOEMS450RT
-
+
Add to Wishlist
Ask about this product

Ask a question

Features:

  • 80 PLUS Gold (Up to 90% efficiency at 115Vac, 50% load)
  • Support the latest Intel & AMD Socket
  • PCI Express & Serial ATA ready
  • DC to DC converter design
  • Low ripple & noise
  • Super low noise fan control
  • Short circuit protection on all outputs
  • Over voltage protection
  • Over power protection
  • 100% hi-pot test
  • 100% burn in, high temperature cycled on/of

Specifications:

  • Form factor: ATX
  • Dimension: 150mm(L)*140mm(W)*86mm(H)
  • Safety: CTUVus / CUL*, TUV, CB, BSMI (* for SSP-350GT )
  • EMI/RFI: CE, FCC, C-tic
  • Input frequency: 47/63 Hz
  • Inrush current, cold start: 100Amax.
  • Line regulation: +/-1% typical
  • Load regulation: +/-5% typical
  • Cross regulation: +/-5% typical
  • Ripple / noise:1%
  • MTBF, full load @ 25℃amb. : >100K hours (Excluding the DC fan)
  • Power Factor Correction: Active PFC 99% typical

    DC Output:

    AC Input: 100~240Vac 50/60Hz

    Model

    3.3V

    5V

    12V1

    12V2

    -12V

    5Vsb

    Total Power

    SS-650RT

    20A

    20A

    54A

    54A

    0.3A

    2.5A

    650W

    100W

    648W

    3.6W

    12.5W

    SS-550RT

    20A

    20A

    45A

    45A

    0.3A

    2.5A

    550W

    100W

    540W

    3.6W

    12.5W

    SS-450RT

    20A

    20A

    37A

    37A

    0.3A

    2.5A

    450W

    100W

    444W

    3.6W

    12.5W

    SS-350GT

    12A

    16A

    29A

    29A

    0.3A

    2.5A

    350W

    80W

    348W

    3.6W

    12.5W

Cables and Connections:

    M/B wire(mm)

    GPU wire(mm)

    Peripheral wire(mm)

    24P

    4+4P

    6+2P

    B/S/SATA

    Length

    550

    550

    550/100
    550/100

    2SATA
    2SATA
    2B1S

    270/150
    270/150
    330/150/152

  • EPS 4+4 PIN X 1
  • 20+ 4 MAIN CONNECTOR X 1
  • 4PIN MOLEX X 2
  • LONG SATA X 4
  • FLOPPY X 1
  • 6+2 PIN PCI-E X 2

Connectors:

  • Main Power (24/20P) x 1
  • ATX12V (4P/8P) x 1
  • Peripherals: SATA, HDD, FDD
