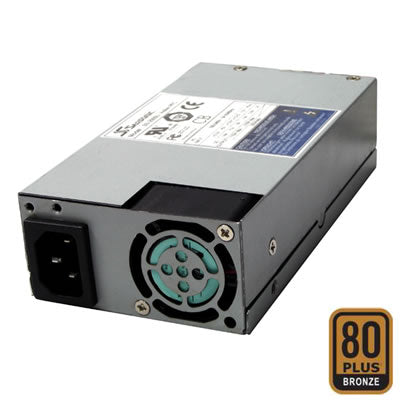

Seasonic SS-250SU APFC F0 80+ Mini 1U 250W Power Supply

$139.50
Out Of Stock
V28-PSUSEA250SUAPFC
-
+
Add to Wishlist
Ask about this product

Ask a question

Features:
- Specification compliance: Flex ATX v1.0
- Forward converter circuit
- High efficiency and reliability
- Zero minimum load on 3.3V rail
- Low ripple & noise
- Super low noise fan control
- Short circuit protection on all outputs
- Over voltage protection
- Over power protection
- 100% hi-pot test
- 100% burn in, high temperature cycled on/off
- PFC harmonics compliance: EN61000-3-2 +A1 +A2

Dimension:
L150 x W81.5 x H40.6mm
(5.9 x 3.2 x 1.6)
Connectors:
Main Power (24/20P) x 1
ATX12V (4P) x 1
Peripherals: SATA, HDD, FDD

Electrical Specifications:
- Input frequency: 50/60 Hz
- Inrush current, cold start: 80A max.
- Efficiency, at normal input voltage: > 80% (250SU Only)
- Dielectric withstand, input to frame/ground: 1800VAC, 1sec
- Dielectric withstand, input to : 1800VAC, 1sec
- Line regulation: +/-1% typical
- Load regulation: +/-5% typical
- Cross regulation: +/-5% typical
- Ripple / noise: 1%
- MTBF, full load@25℃ amb. : >100K hours
(Excluding the DC fan)
- Power Factor Correction: Active PFC 99% typical
Safety: CUL, TUV, CB, CCC, BSMI, GOST-R
EMC: CE, FCC
