SEASONIC PRIME 1200W 80PLUS GOLD SSR-1200GD

OVERVIEW

High quality components and high efficiency make this high power unit one of the best on the market. he 80 Plus® Gold certification guarantees that efficiency is kept at 90 % at 50 % system load. The large FDB fan will provide quiet cooling and the heat induced fan control will regulate fan speed according to the needs of the system. Seasonic’s latest design keeps the output voltage within a very tight range, achieving less than 1 % load regulation. This impressive electrical performance and stability makes this power supply an ideal choice for high-performance systems with multiple GPUs.

SPECIFICATIONS

• 80PLUS: Gold
• Form Factor: Intel ATX 12 V
• Dimensions: 150 mm (W) x 170 mm (L) x 86 mm (H)
• Fan Information
• Fan Size: 135 mm
• Fan Control:Premium Hybrid Fan Control
• Fan Bearing: Fluid Dynamic Bearing
• Life Expectancy: 50,000 hours at 40 °C, 15 % - 65 % RH

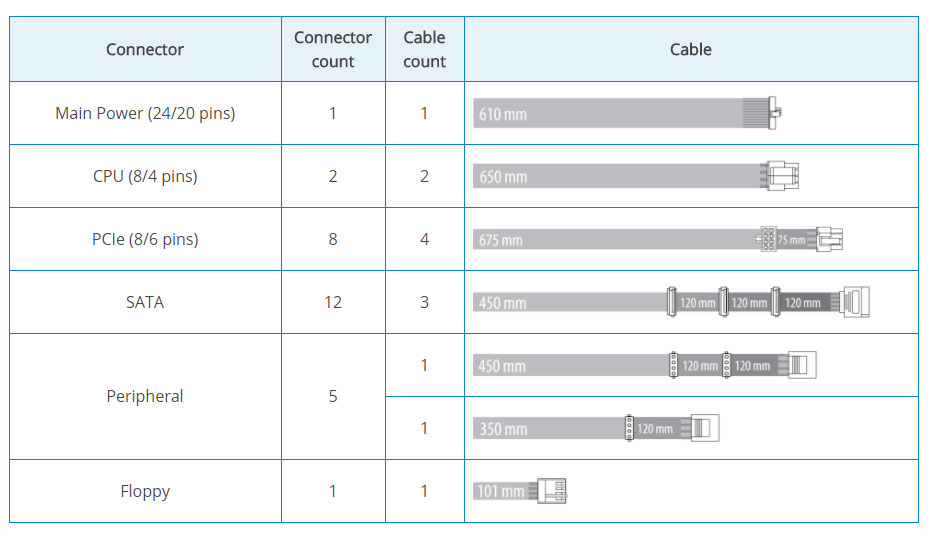

• Cable Information
• Modularity: Fully Modular
• Cable type: Motherboard, CPU, PCIe - Black webbeb cables, SATA, Molex, Floppy - Flat black cables
• Electrical Features
• Operating Temperature: 0 - 50 °C
• MTBF @ 25 °C, excl. fan: 150,000 hours
• AC Input: Full Range
• Protection: OPP, OVP, UVP, OCP, OTP, SCP
• Safety and Environmental
• Safety and EMC: cTUVus, TUV, CB, CCC, BSMI, EAC
• Environmental Compliance: Energy Star, RoHS, WEEE, ErP Lot 6, REACH

Package Content:

1 x SEASONIC PRIME 1200W 80PLUS GOLD SSR-1200GD
