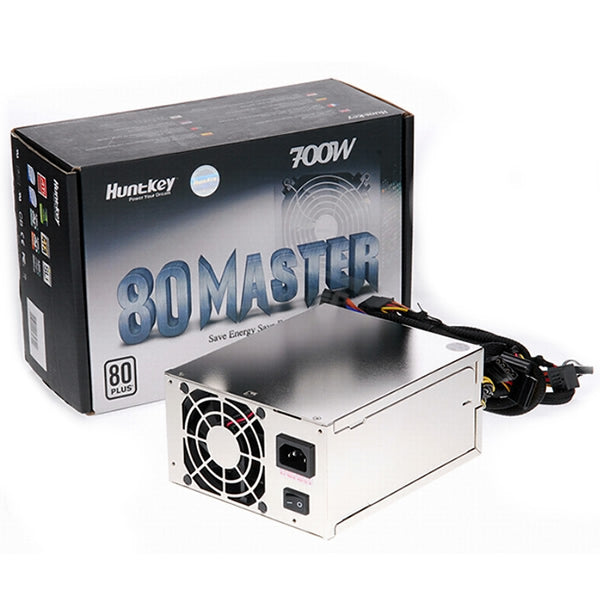

Huntkey 700W 80Master Power Supply - 85% High Efficiency

$194.90 $155.92 ( 20% off )
Out Of Stock
V28-PSUHUN80MST700W
-
+
Add to Wishlist
Ask about this product

Ask a question

Model Name: HK701-11PEP

Features

  • Intel ATX12V V2.3 & EPS12V V2.92
  • Active PFC (PF>0.99)
  • Certified by 80PLUS
  • 85% high efficiency at typical load operation
  • True-wattage rated
  • Supports Intel & AMD Dual and Multi-core CPUs
  • Provides four +12V rails, for stability and safety
  • Supports SLI & Crossfire multi-GPU VGA card
  • Low ripple & long lifetime by solid capacitor
  • Low power consumption on standby (<1W when 5VSB is 0.1A)
  • Excellent acoustic & thermal performance with intelligent-Thermal Fan Control Technology
  • Multiple Protections function: OCP, OTP, OVP, UVP, OPP, SCP
  • 100% Burn-In test & 100% Hi-Pot test
  • MTBF: 100,000 hours at 25C

Specifications

  • Dimension: 150 x 86 x 180mm (WxHxL)

Output Current Capacity

Voltage +3.3V +5V +12V1 +12V2 +12V3 +12V4 -12V +5VSB
Max. load 26A 26A 18A 18A 18A 18A 0.5A 3.0A
Min. load 1.5A 1.0A 0.5A 0.5A 1.0A 0.5A 0A 0.1A
Regulation +-5% +-5% +-5% 0.5A +-5% +-5% +-10% +-5%
Ripple&Noise 50mV 50mV 120mV 120mV 120mV 120mV 120mV 50mV

+3.3V&+5V total output don't exceed 140W

Input Spec.

  • Input voltage: 90V-264V
  • Input current: 5.0A (Max.)@115VAC
  • Input frequency: 47-63Hz
  • Inrush current: 80A at 230VAC cold start at 25C

Output Sepc.

  • Max. Output Capacity: 700W
  • Power factor>=99% (at normal input voltage and full load)
  • Efficiency: 85% high efficiency at typical load operation
  • OVP: +3.3V, +5V, +12V1, +12V2, +12V3,+12V4
  • OCP: <240VA
  • SCP: All output to GND

Safty

  • CCC , CB, UL , TUV ,CB, CE, CSA,CUL, NEMKO,SAA,GS,VDE
