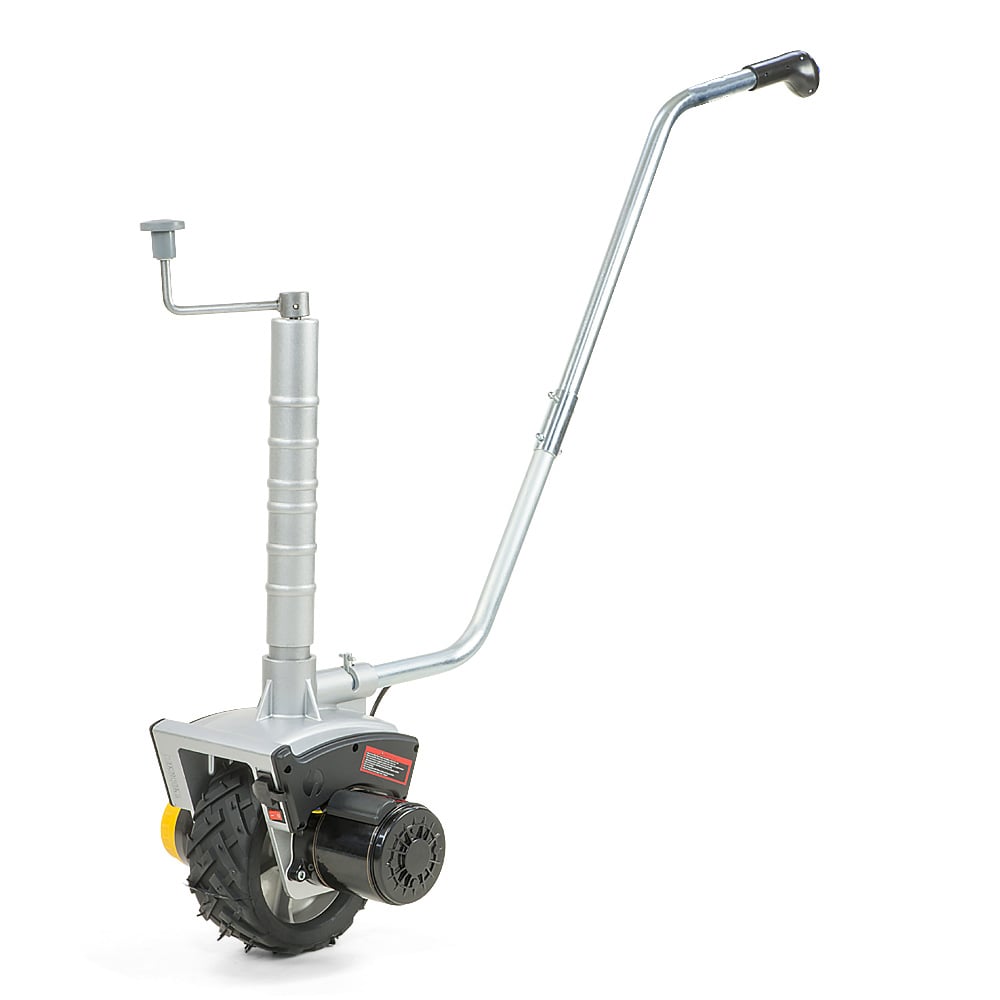

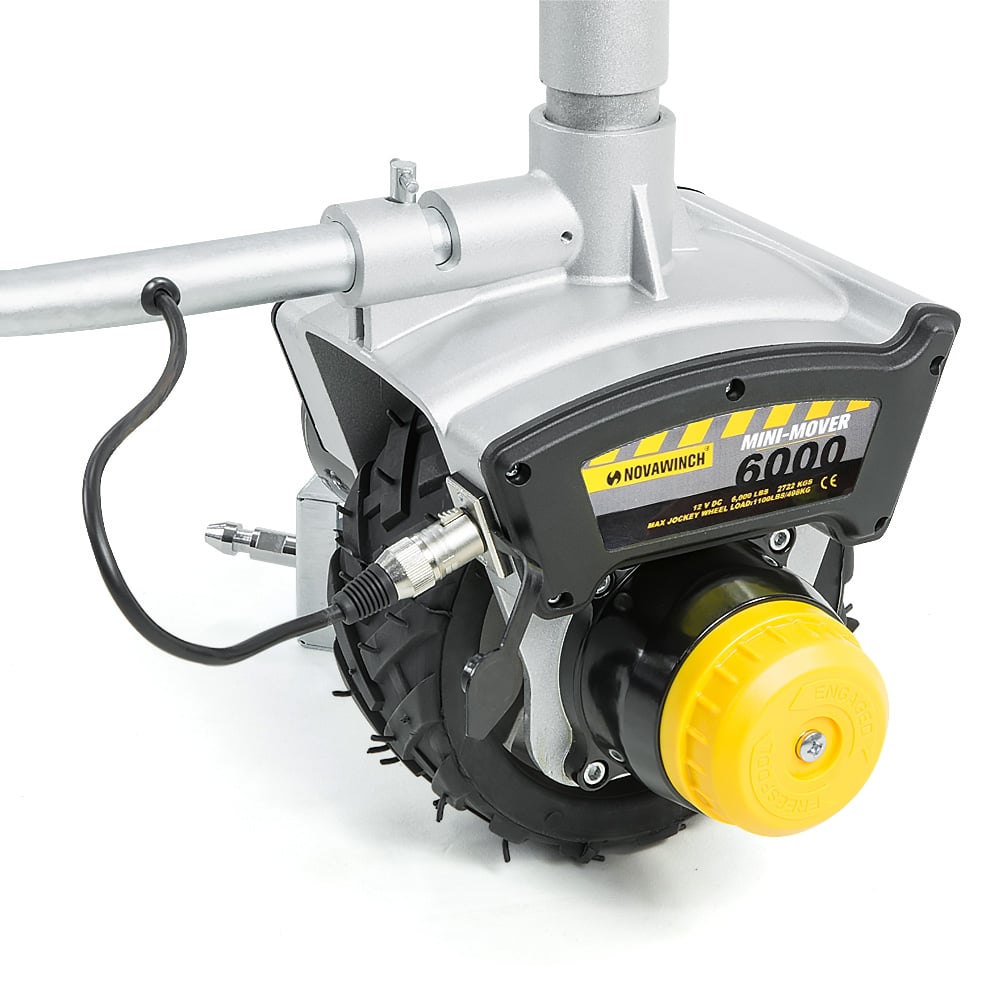

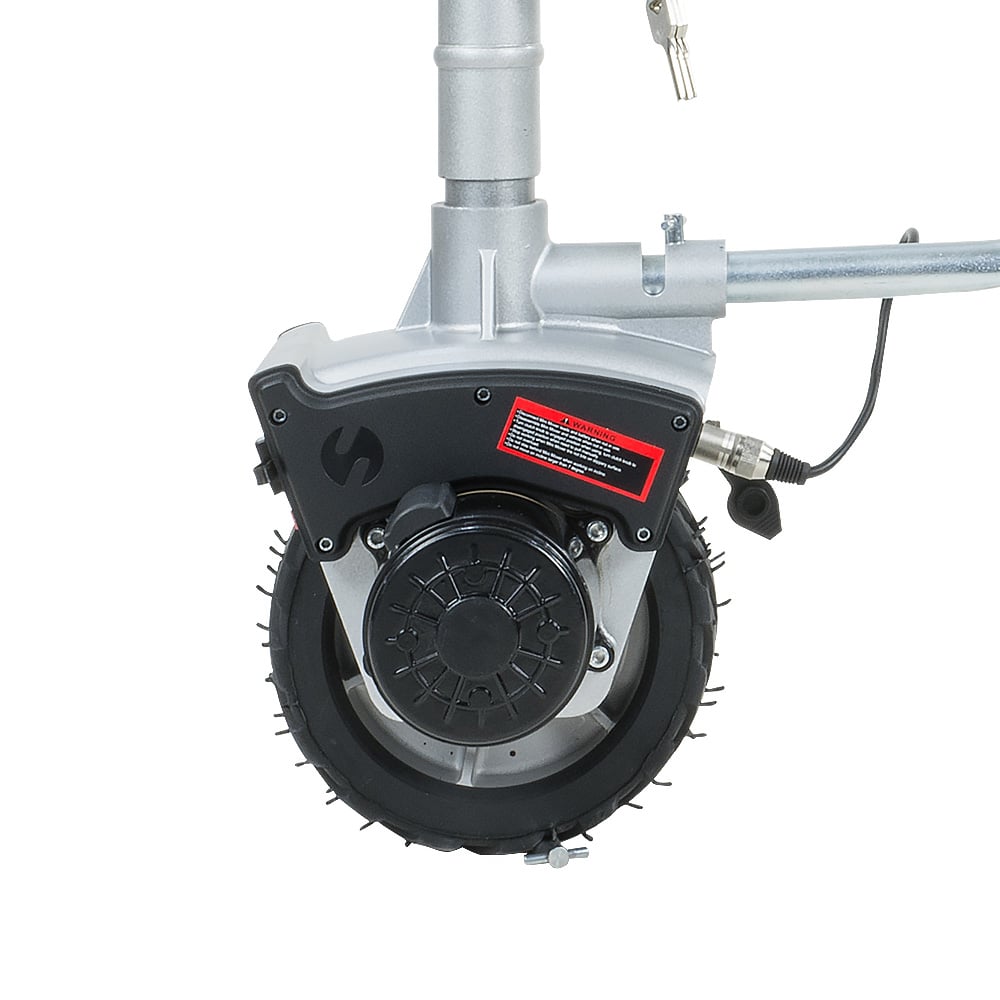

Gen2 12V Electric Motorised Jockey Wheel Mini Mover - 550W

When you need the extra muscle to move your trailer, caravan, camper, horse float, boat or anything else that uses a jockey wheel then you need the Maxi-Pro 12V Electric Motorised Jockey Wheel.

The jockey wheel is capable of moving up to 2722kg's (6000lbs) on an inline of up to 7 degrees. With both forward and reverse, a wide (8cm) heavy duty rubber wheel and an automatic braking system moving your trailer around becomes a breeze.

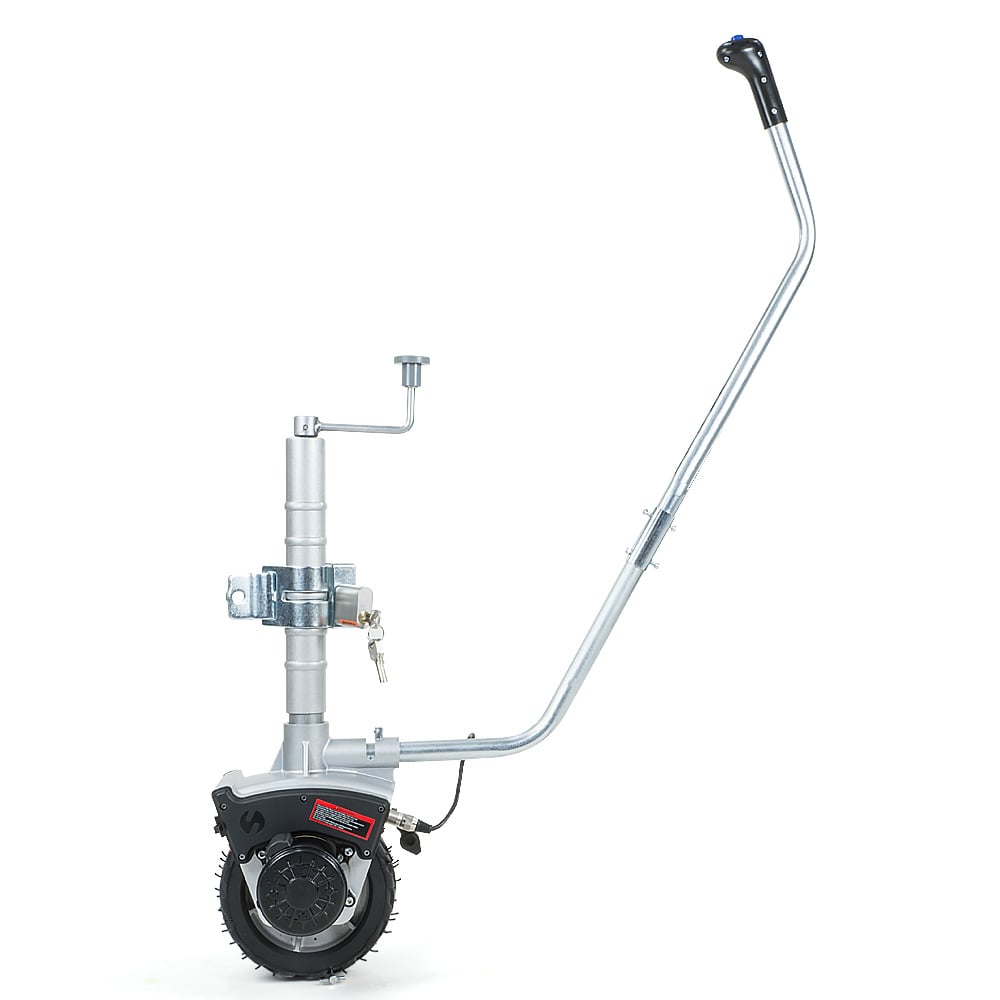

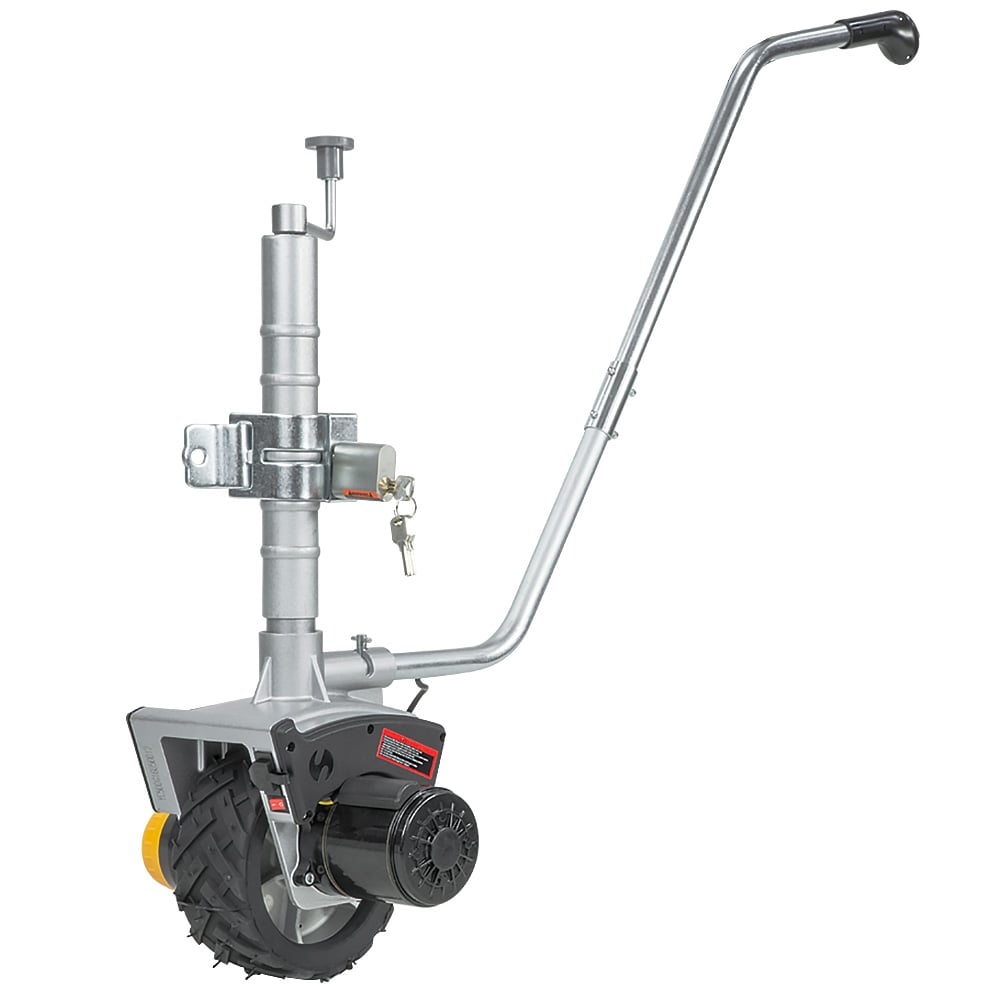

With a special jockey wheel locking system this means that once locked no-one can remove the jockey wheel without a key. The unit is supplied with 4 keys, so you'll always have one to hand!

The unit needs to be powered by a 12V DC battery with a minimum size of 24Ah (not included).

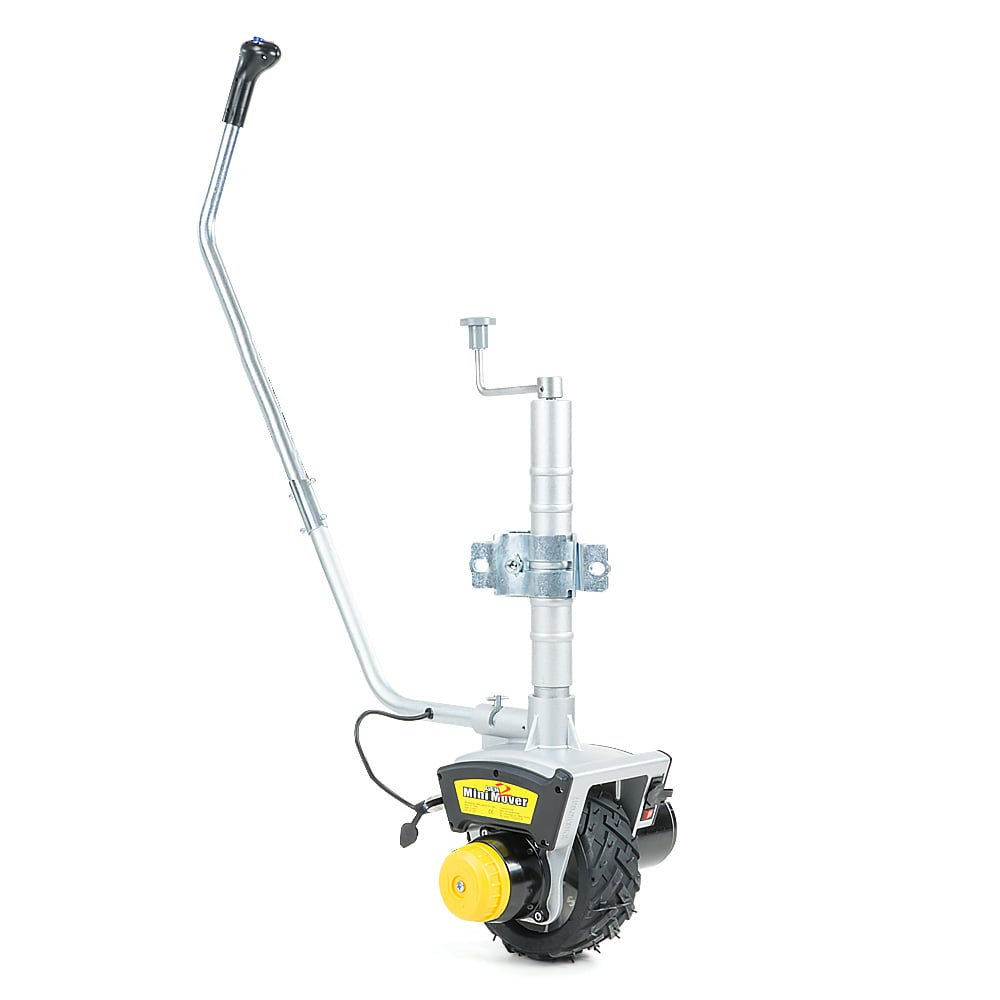

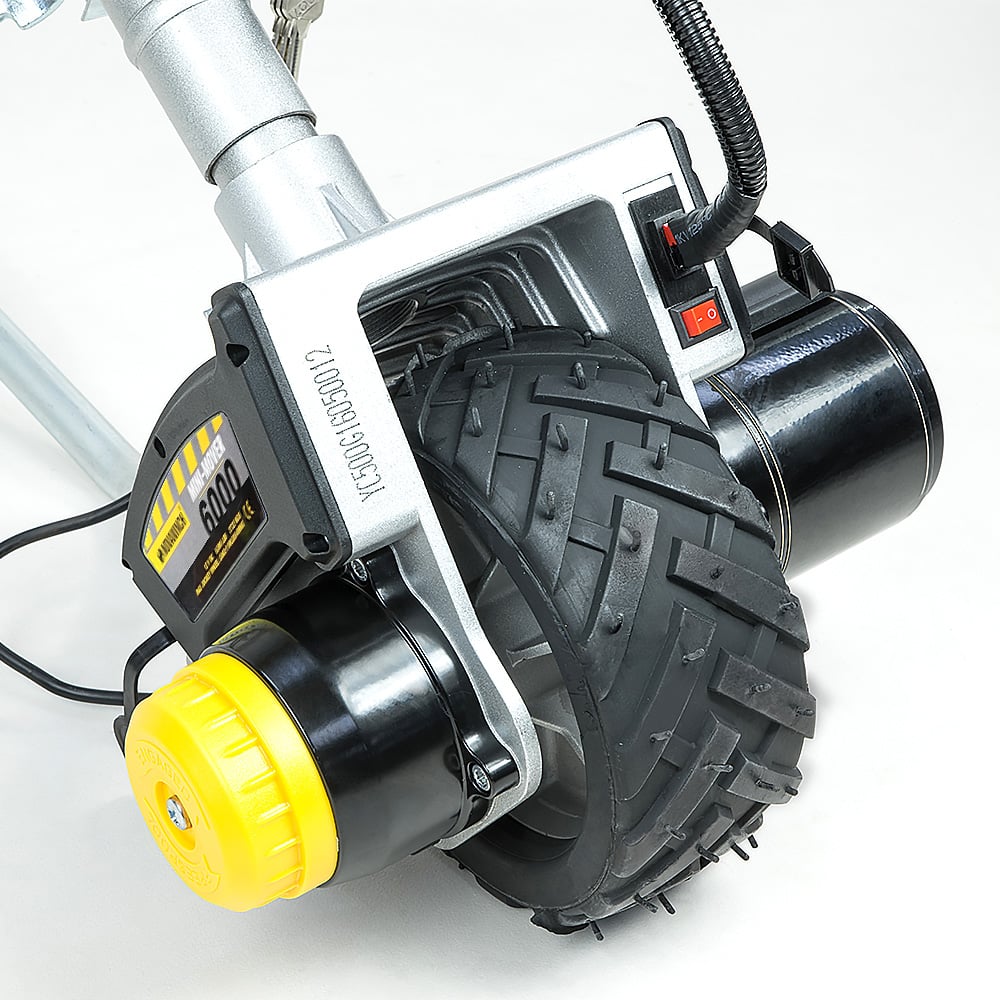

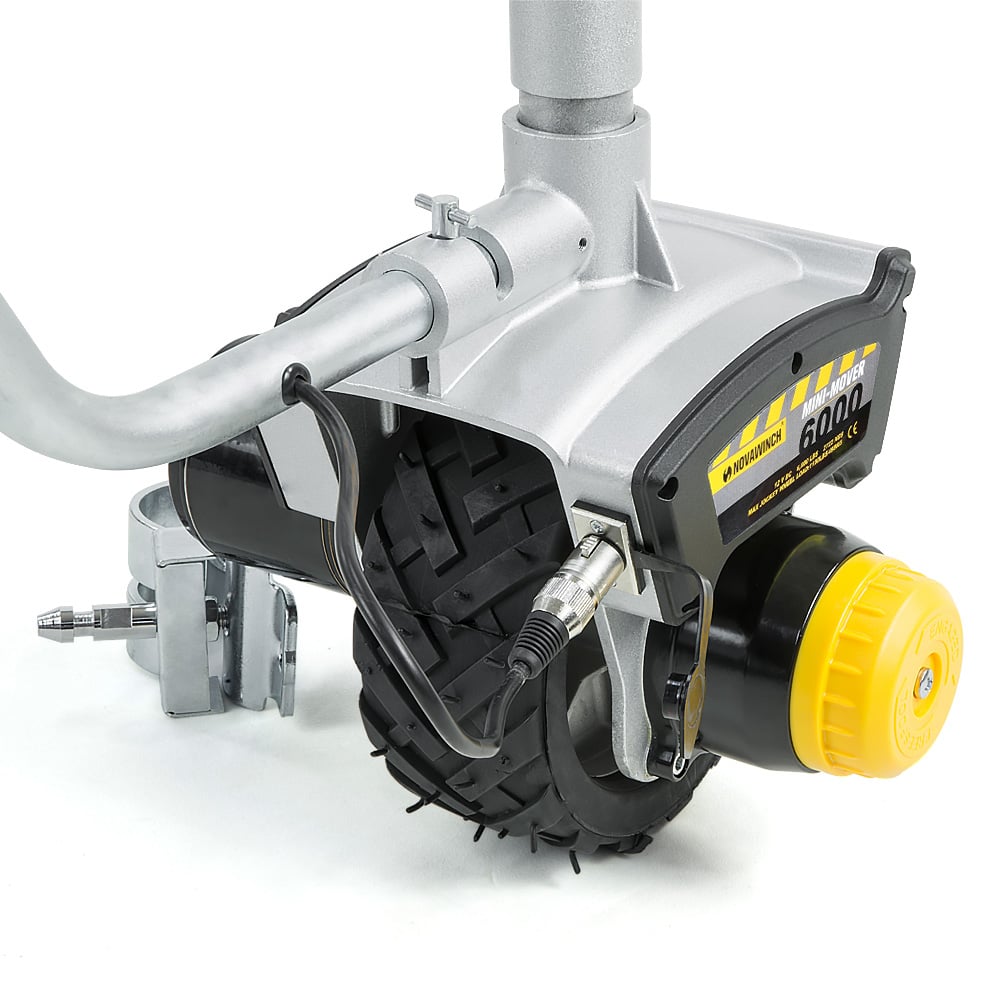

Jockey wheel can be used in manual mode (freewheel option) by roating yellow cap located on the side of the wheel.

Please note: This unit will not suit double axle trailers.

FEATURES:

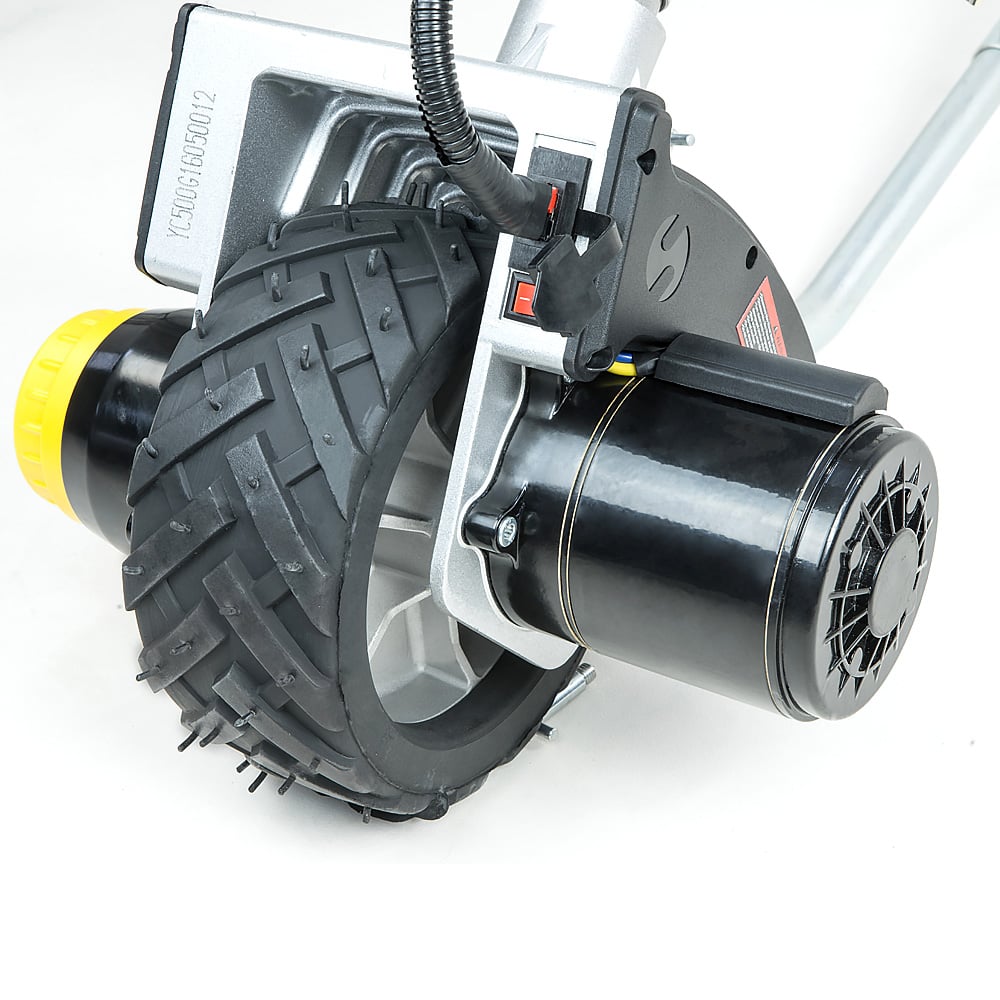

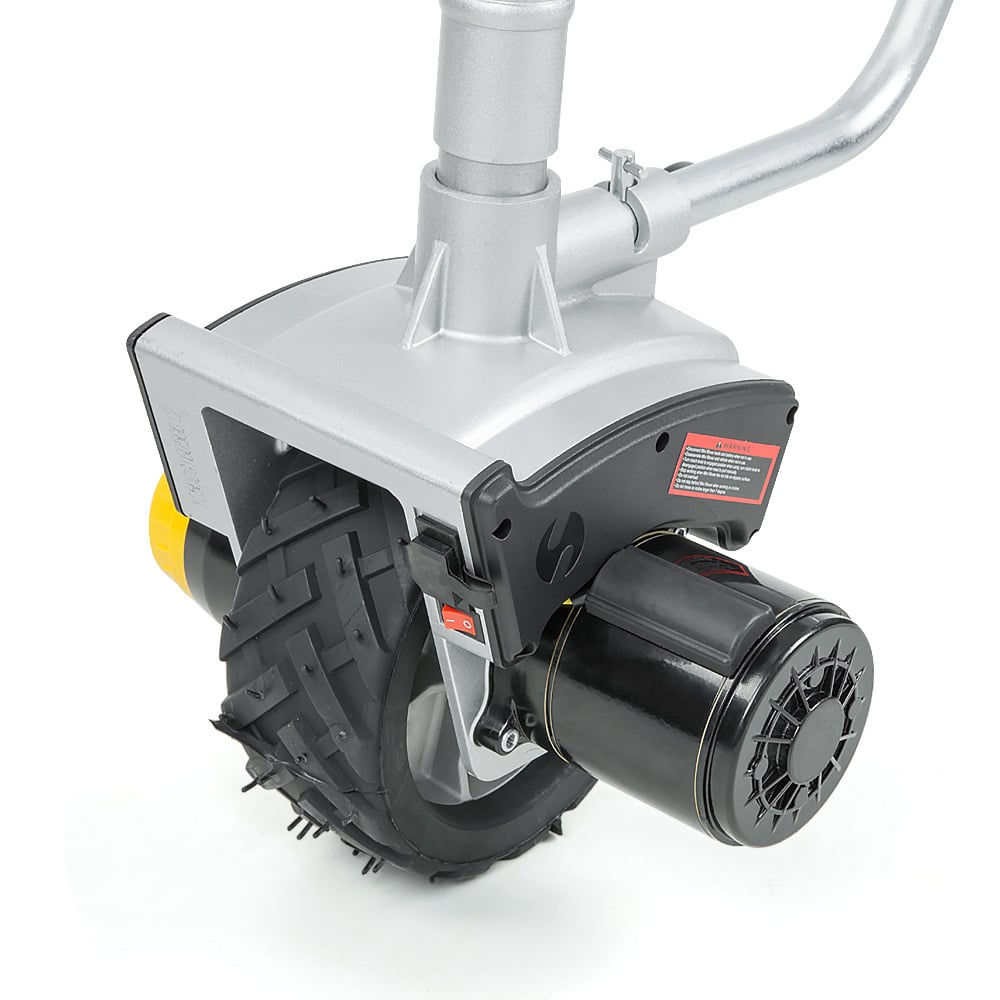

• Motor : DC 12V : 550W
• Gear ratio : 494:1
• Max Speed : 6-7m/min
• Max Pulling Incline : 7 Degrees
• Braking action : Automatic
• Max Vehicle Load : 2722kg (6000lbs)
• Max Jockey Wheel Load : 498kg
• Jockey Wheel Diameter: 8in
• Battery Lead Length : 1.6m
• Net Weight : 17kg

CONTENTS:

• 1 x Jockey Wheel
• 1 x Connection cable

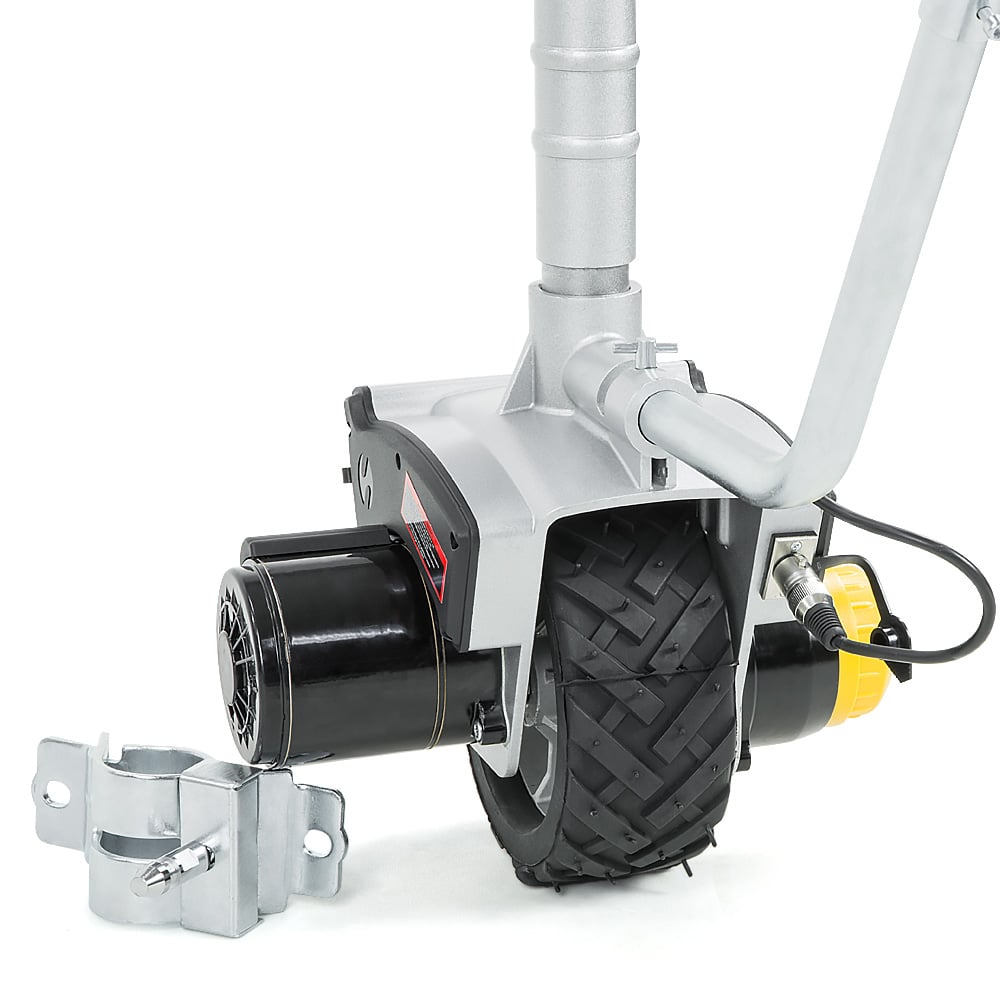

• 1 x Mounting Bracket
• 1 x Lock and Key
• 1 x Instruction Manual
