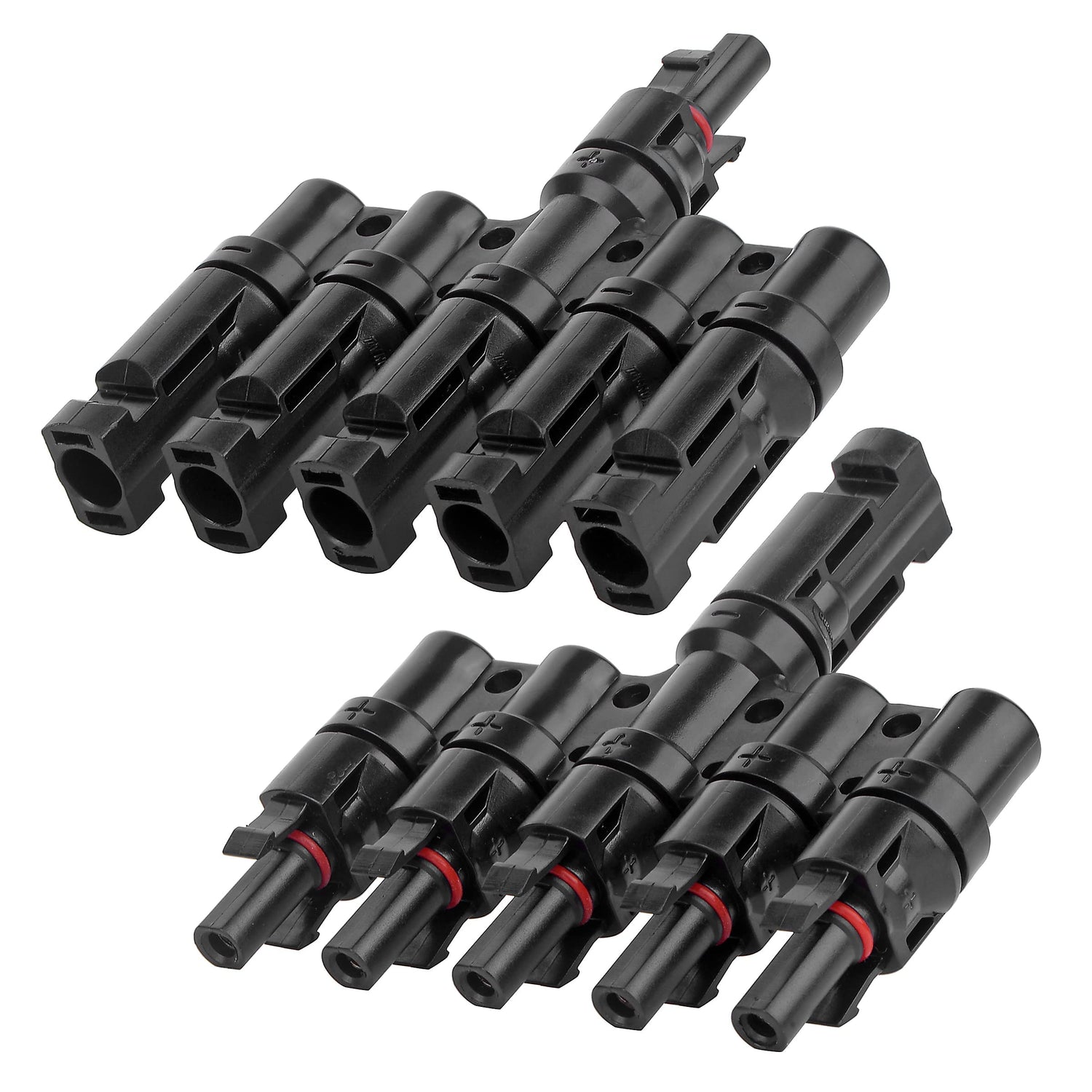

5-In-1 Waterproof Solar PV Cable Connectors - Male & Female T Branch Connectors for Paralleling Solar Panels

Maximize Your Solar Efficiency with 5-to-1 T Branch Connectors

Enhance your solar power system with our premium 1 Pair 5 to 1 T Branch Cable Connectors. Designed for both professional and DIY solar panel installations, these connectors bridge the gap between multiple panels to optimize energy output.

Key Features:

• Versatile Configuration: Each connector features 1 male to 5 female (M/FFFFF) and 1 female to 5 male (F/MMMMM) arrangements, compatible with 14AWG to 10AWG solar cables, making it ideal for paralleling solar panels.

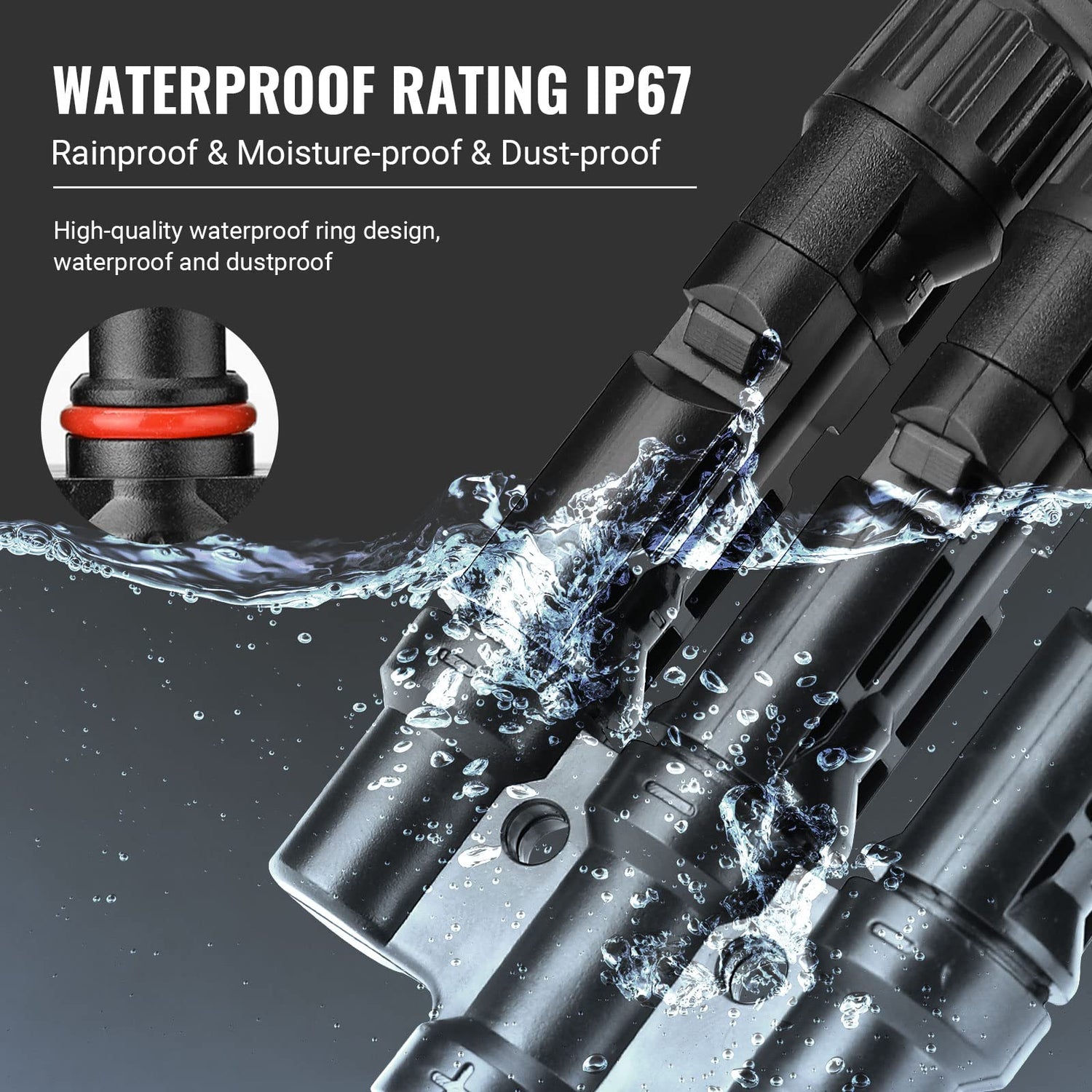

• Waterproof & Durable: Engineered with an IP67 waterproof rating, our connectors are designed to keep moisture and dust out, ensuring long-lasting performance and preventing corrosion.

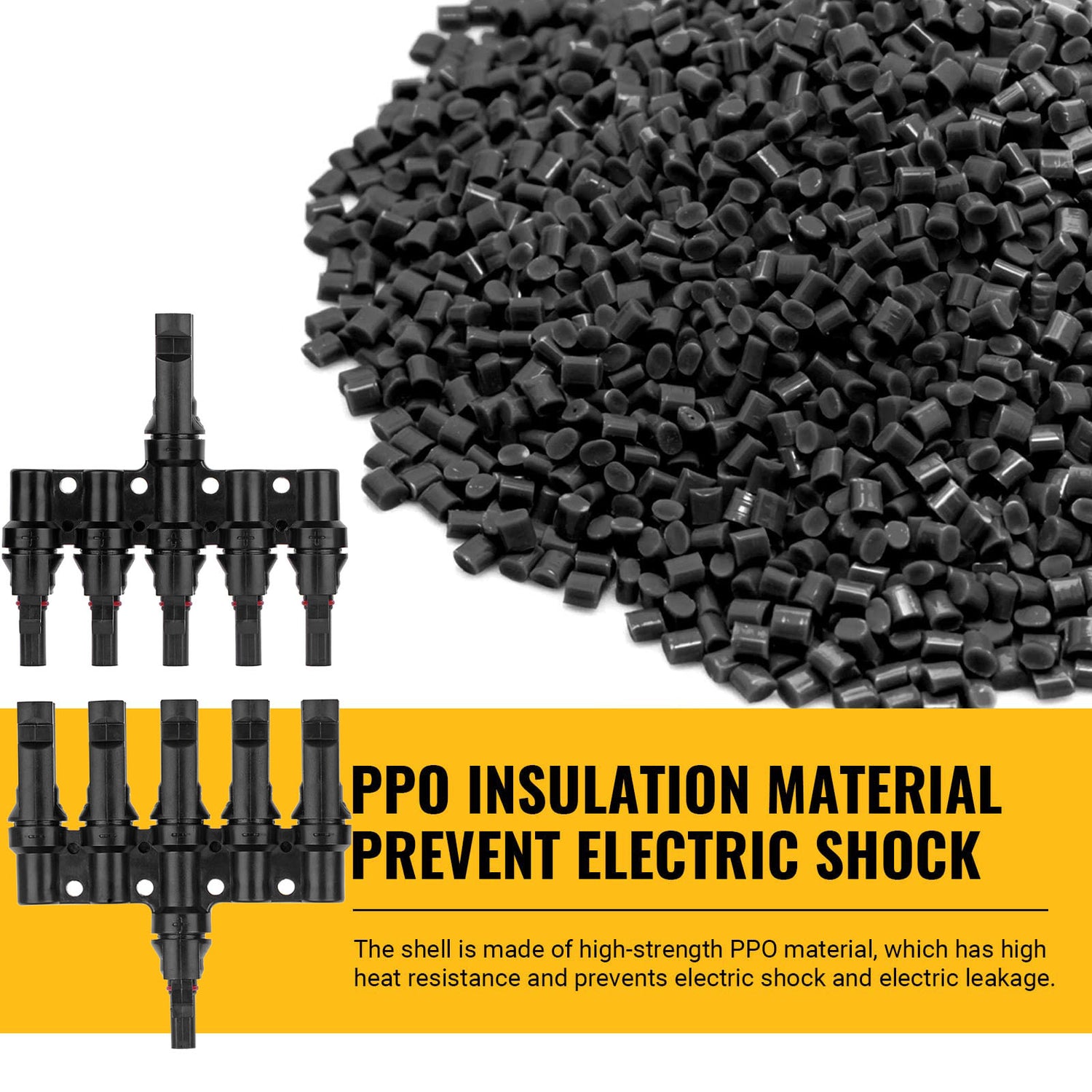

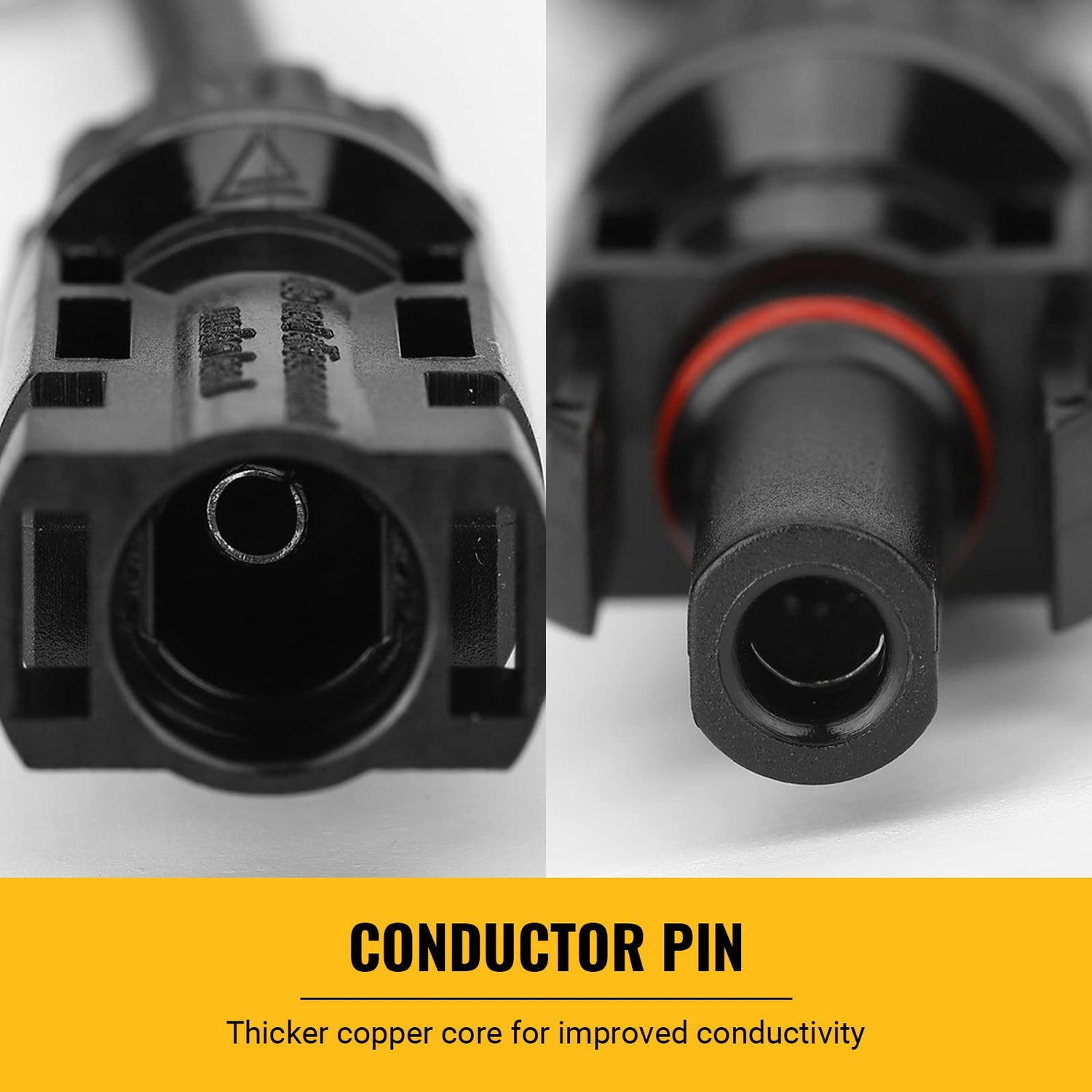

• High Security Standards: Constructed from robust PPO material and featuring copper contacts that are silver-plated, these connectors maintain stability and safety even in extreme temperatures ranging from -40°F to +90°F.

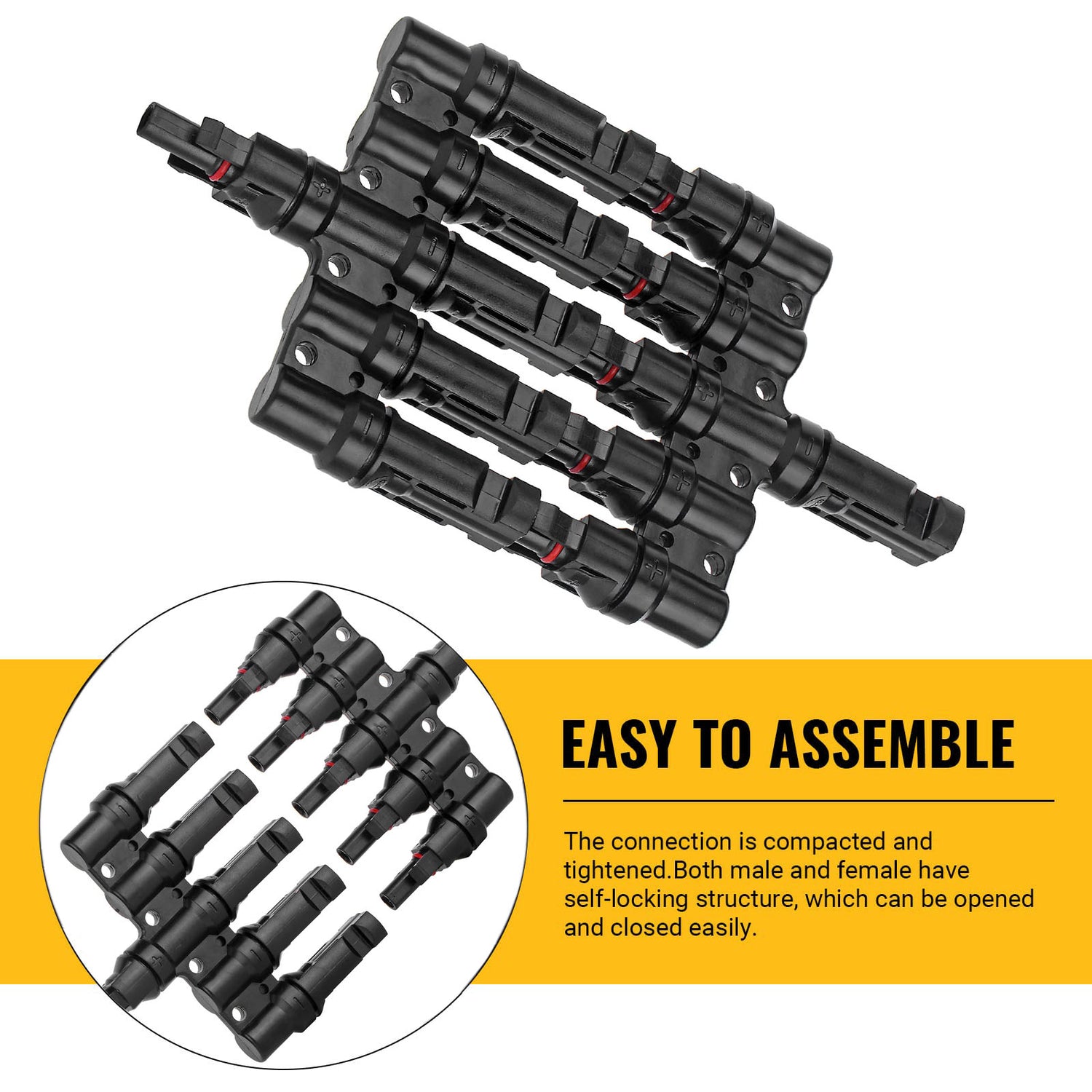

• Effortless Installation: Enjoy a hassle-free setup with our plug-and-play design. The built-in lock allows for easy connection and disconnection, requiring no additional tools.
• Wide Compatibility: Suitable for most PV products on the market, these connectors are CE and TUV certified, ensuring reliability in various applications.

Specifications:

• Withstanding Voltage: 1000V DC (TUV), 600V (UL)
• Contact Resistance: 1m
• Protection Class: Class II
• Temperature Range: -40°F to +90°F
• Flame Class: UL94-V0 or UL94-5VA
• Weight per Connector: 117g

Package Includes:

1 Pair of 5 Branch Connectors (1 MMMMMF Solar Branch Connector, 1 FFFFFM Solar Branch Connector)

Upgrade your solar setup today and experience the difference in efficiency and reliability with our 5-to-1 T Branch Connectors.
