X-BULL Winch Solenoid Relay Wiring Controller 500A 12V and 150ft Wireless Remote

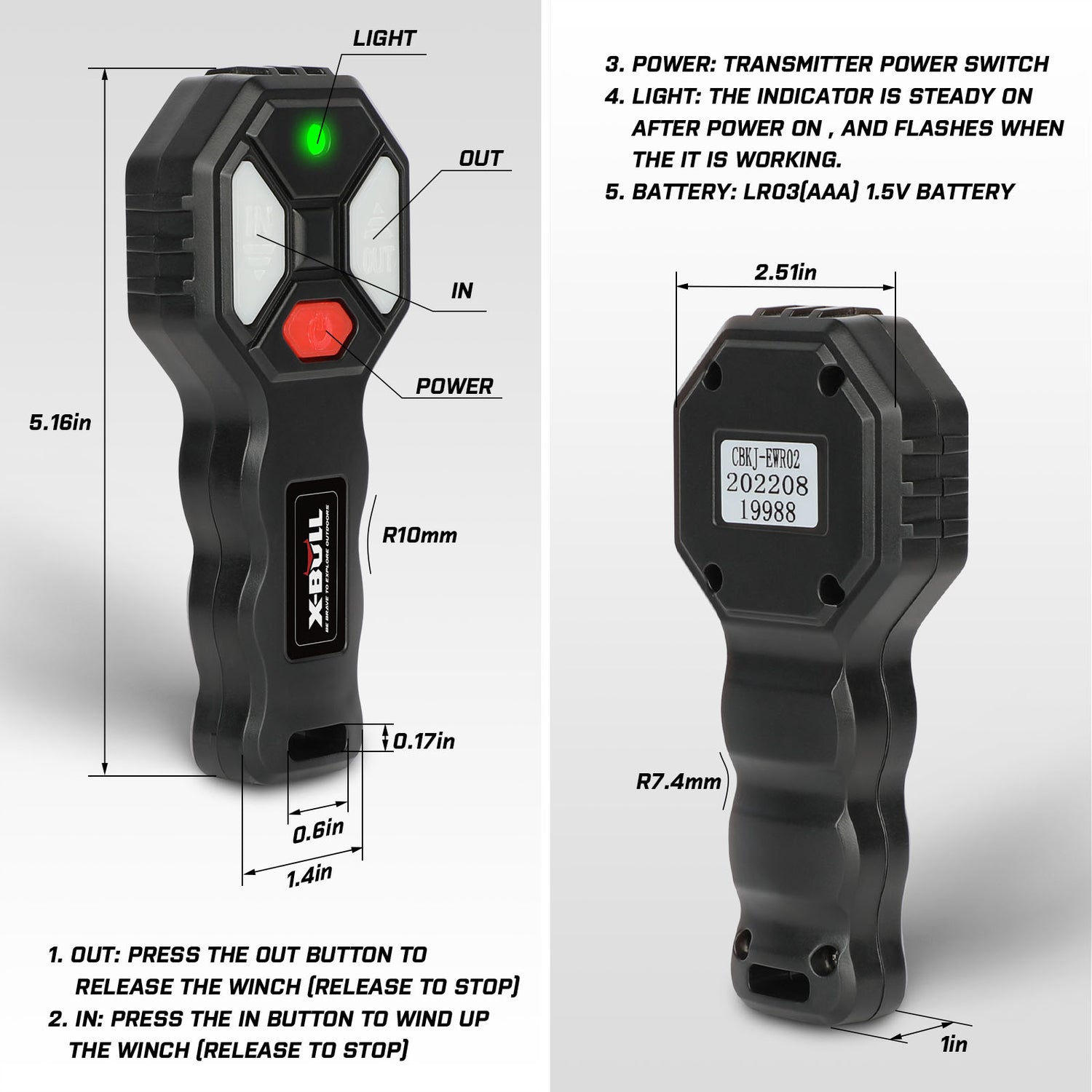

Wireless remote control

Features:
Wireless winch remote control with twin handset.
Will work with any 12 volt solenoid operated winch.
Latest heavy duty long range model

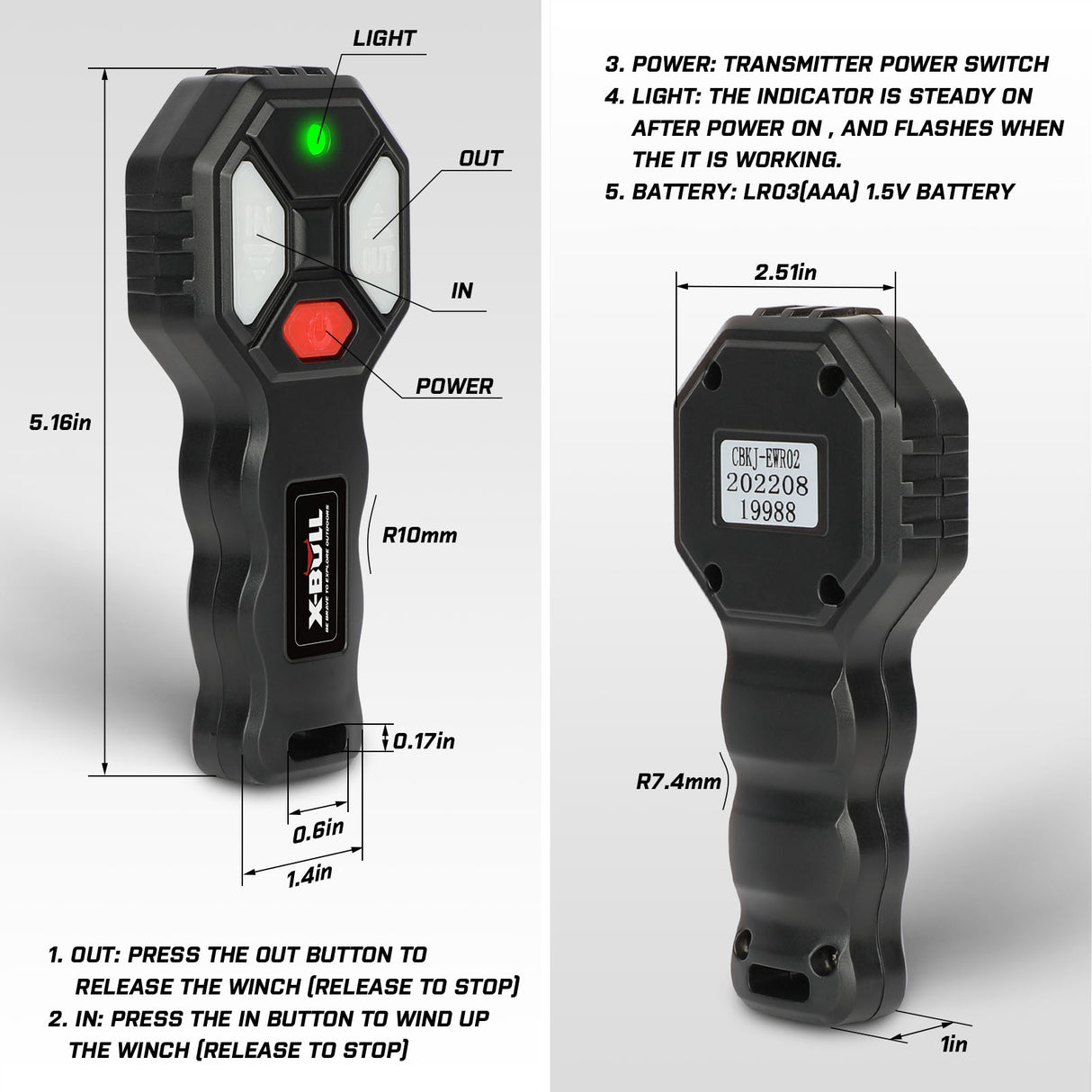

Visual indicator light shows remote operation
2 wireless remotes

Specification:

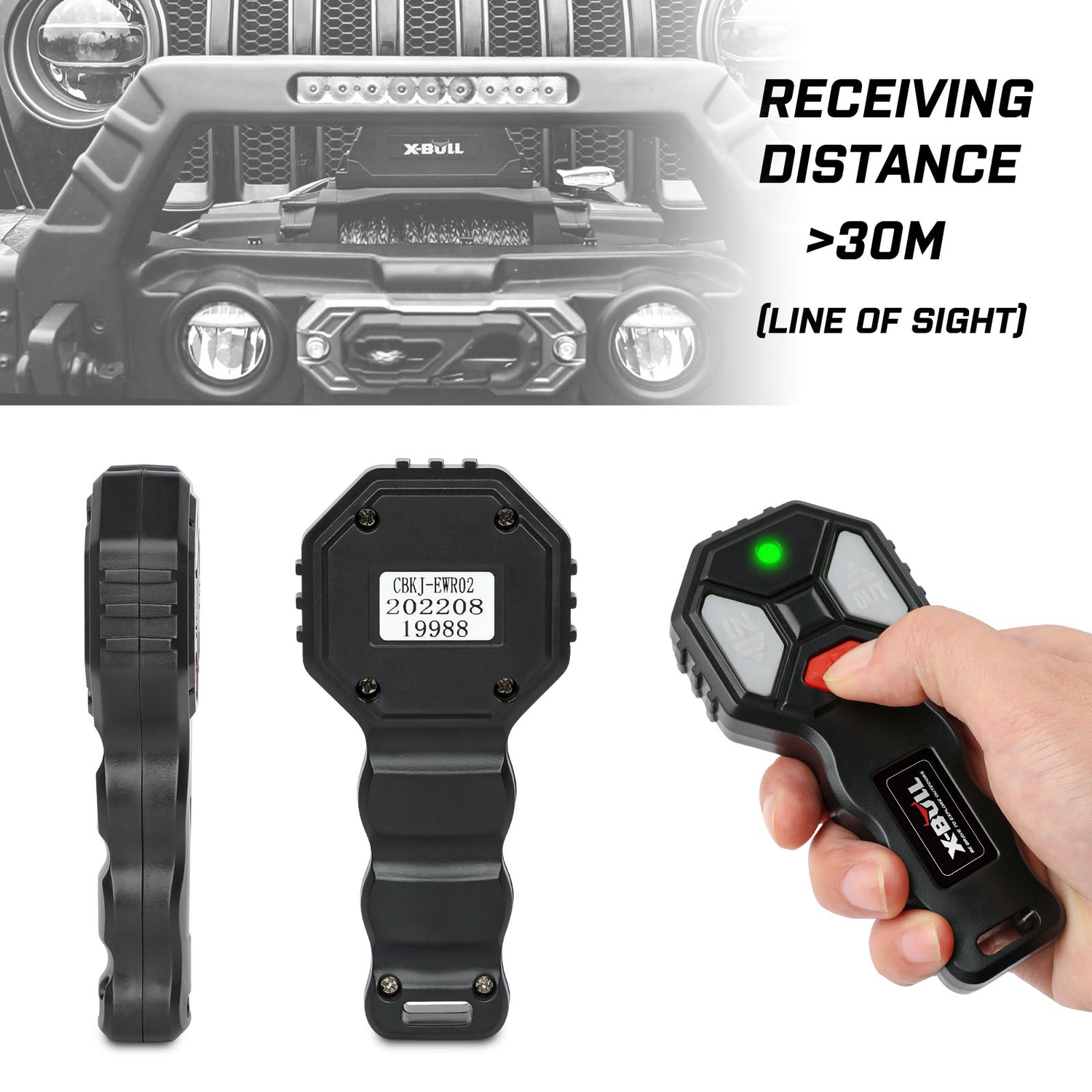

Range: Approx 45metres
Power voltage:12V
Working Frequency: 315MHz/433.92MHz

The Remote control needs to be activated
To activate
Press both the two buttons at same time for 5 seconds until the LED lights up.
Turn off
Press both the two buttons at same time for 5 seconds until the LED lights turn off.
Caution
the remote will power off automatically after 2 minuies.

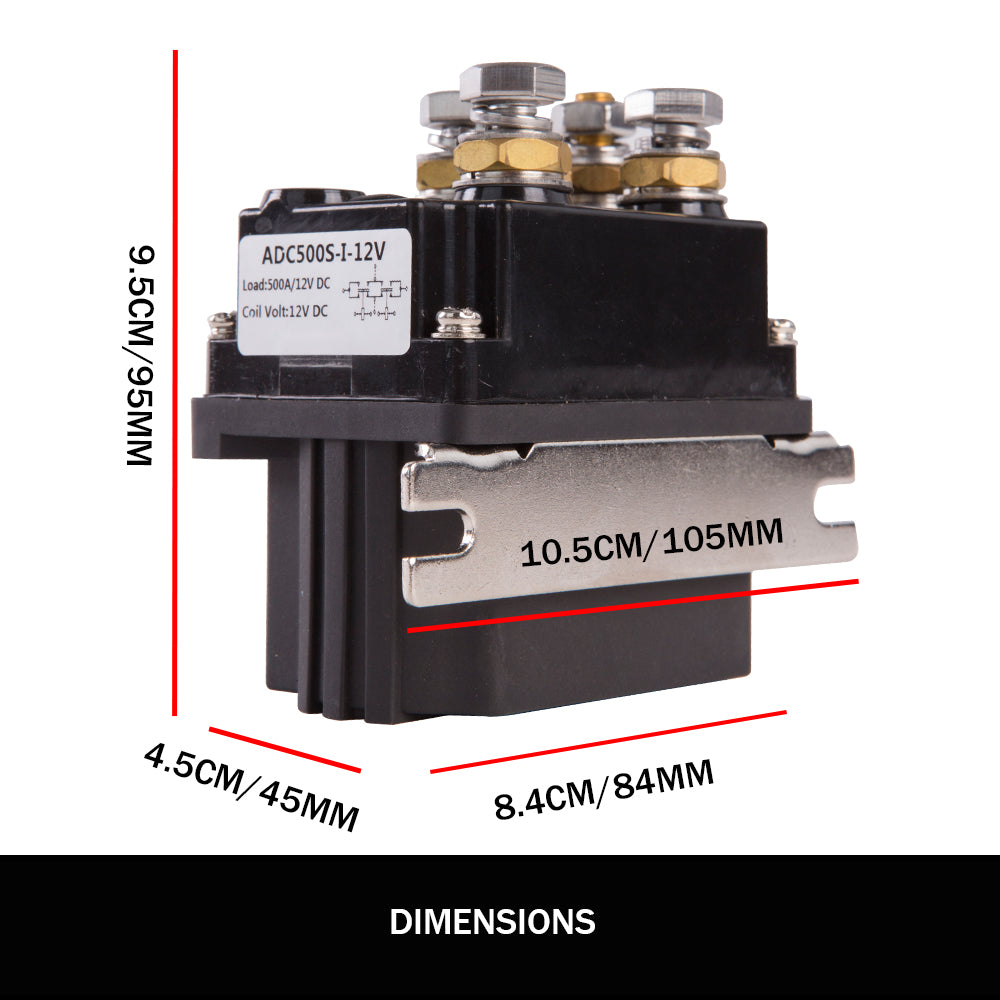

Winch Solenoid

Description:
Coil rated voltage :6-110V DC
Operating power :15W
Contact circuit voltage and loading current:80V DC Max 250V AC 500A
Mechanical life :100,000Ops
Electrical life :50,000Ops
Environment temperature :-40 C -85 C
Frequency :10Hz-200Hz
Speed : 60-100 per min
Operation regulation :Continue
Installation direction :Random

Features:
500amp 12v Winch Solenoid
Sealed and corrosion resistant
Solid heavy duty construction

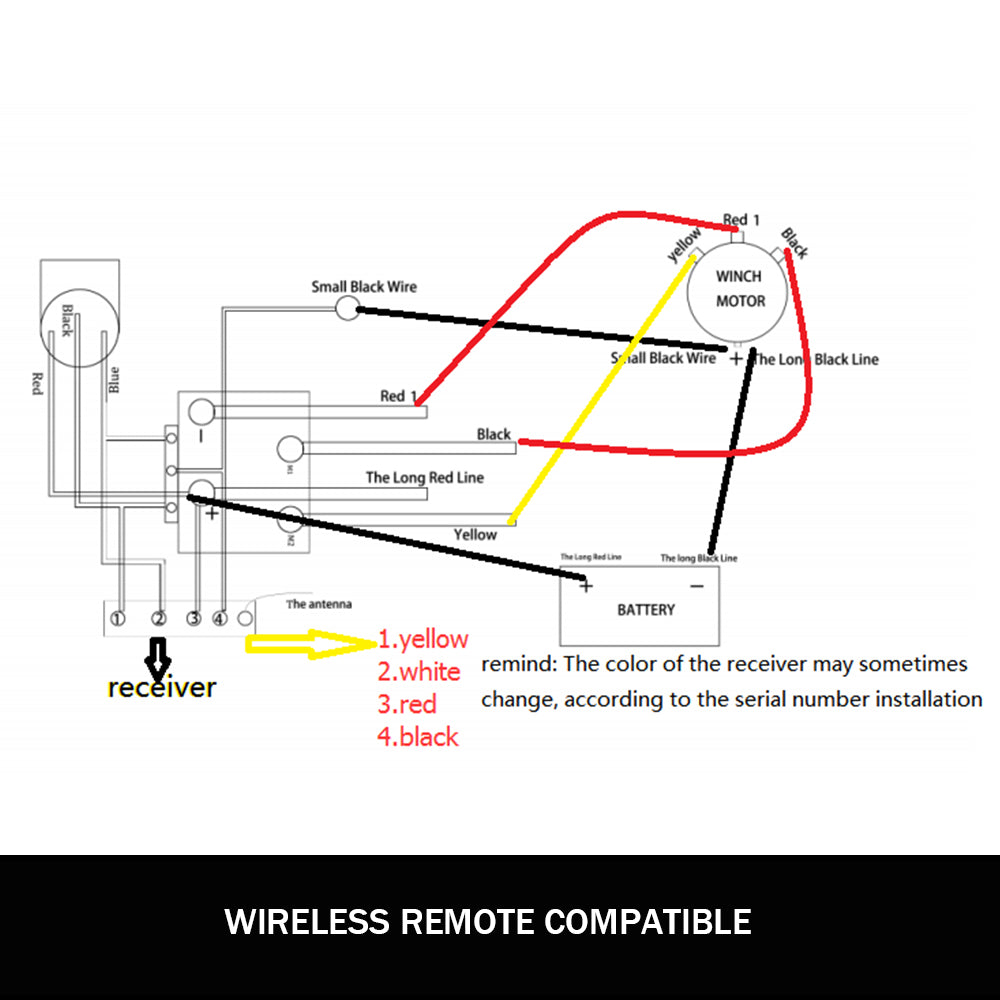

Wireless remote compatible
Solid heavy duty construction
Suitable 9500lbs-17000lbs - Series wound and permanent magnet

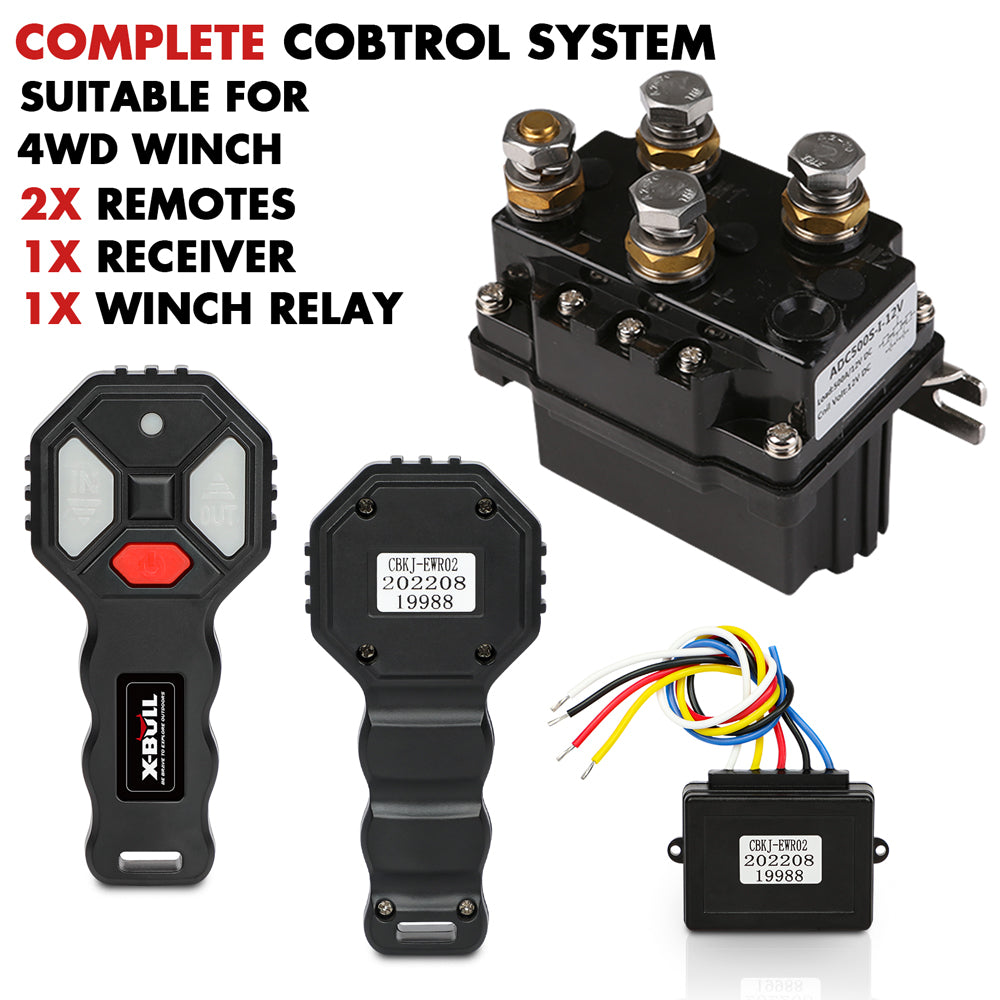

Package Contents:
2 x Remotes

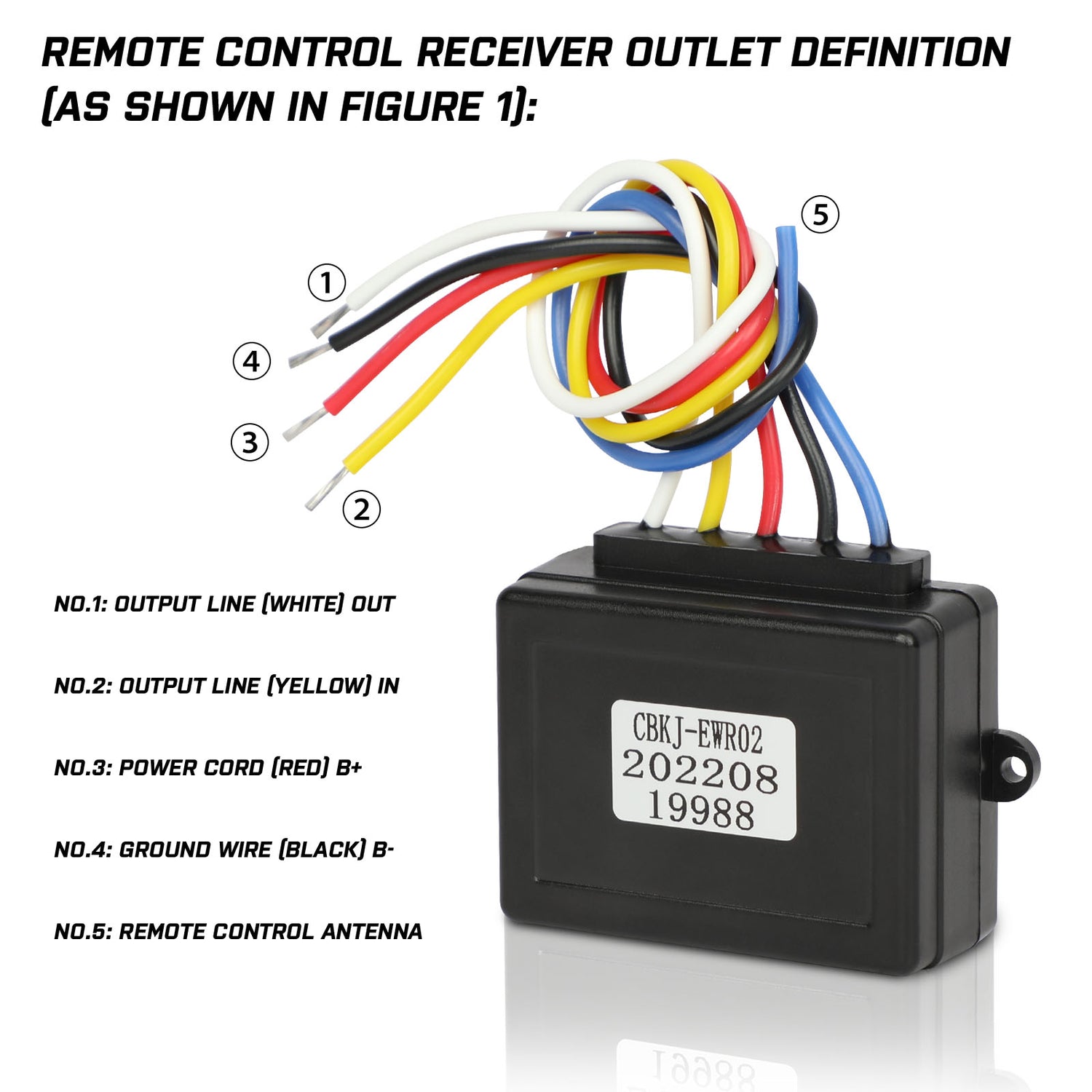

1 x Receiver
1 x User manual and battery included
1 x Winch Solenoid
