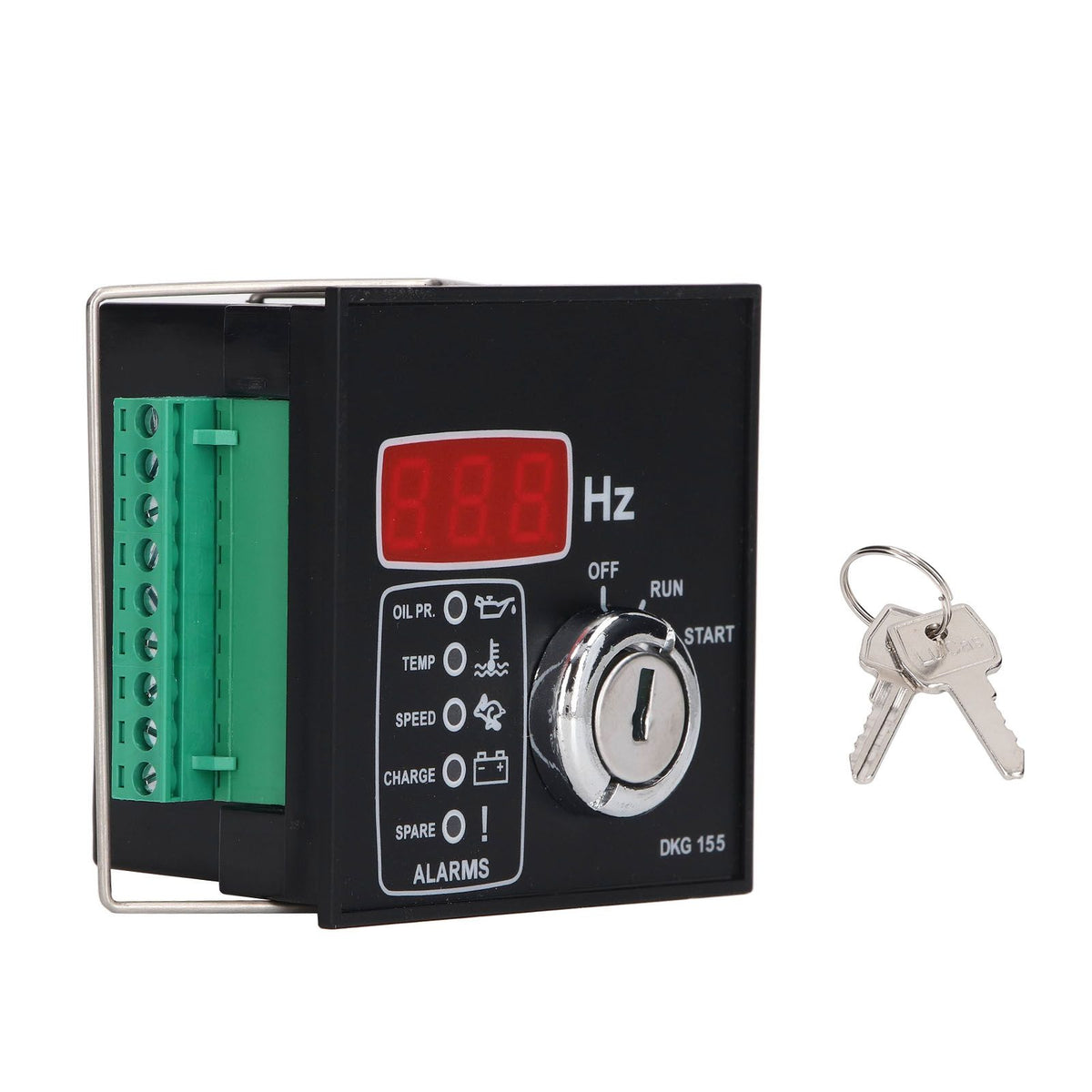

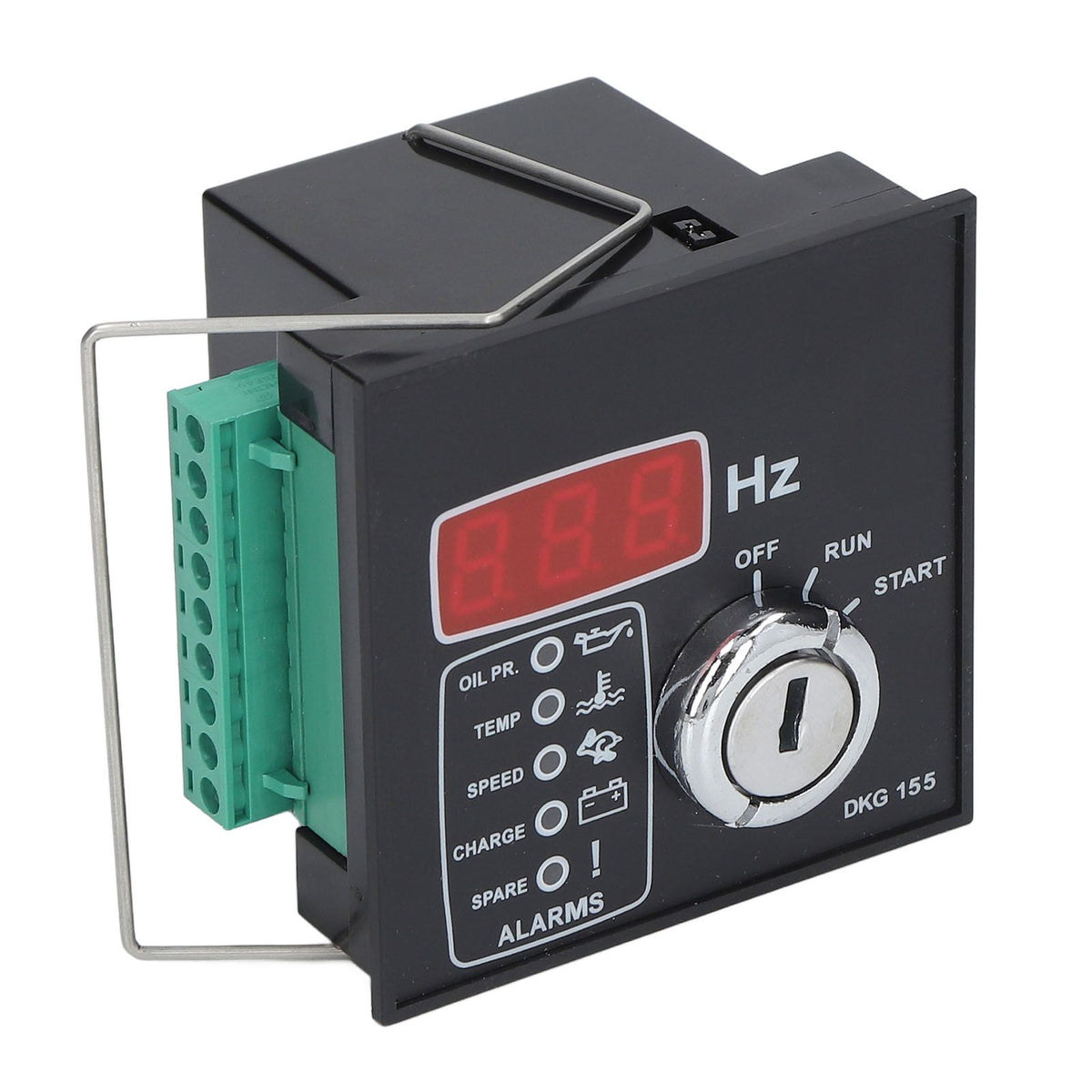

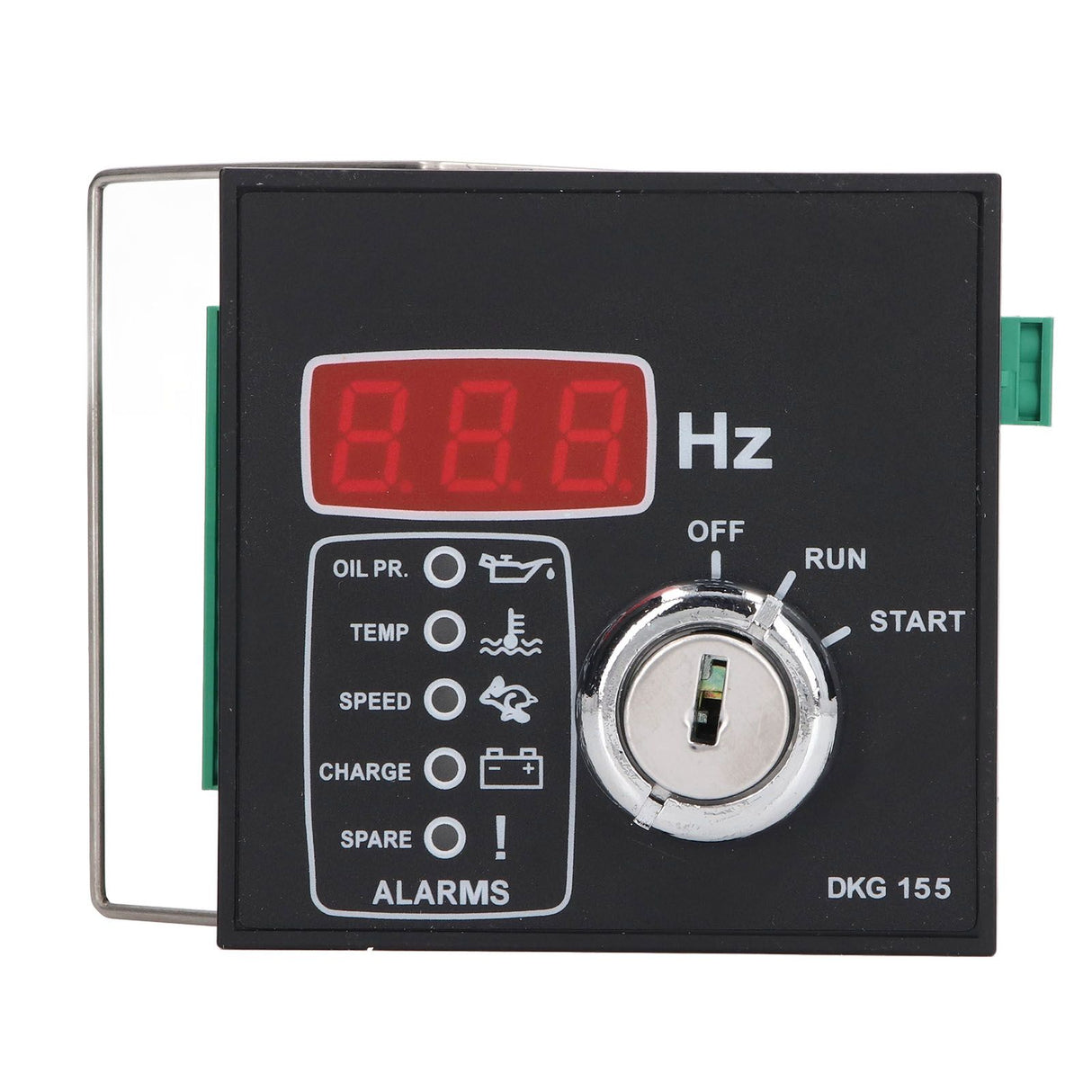

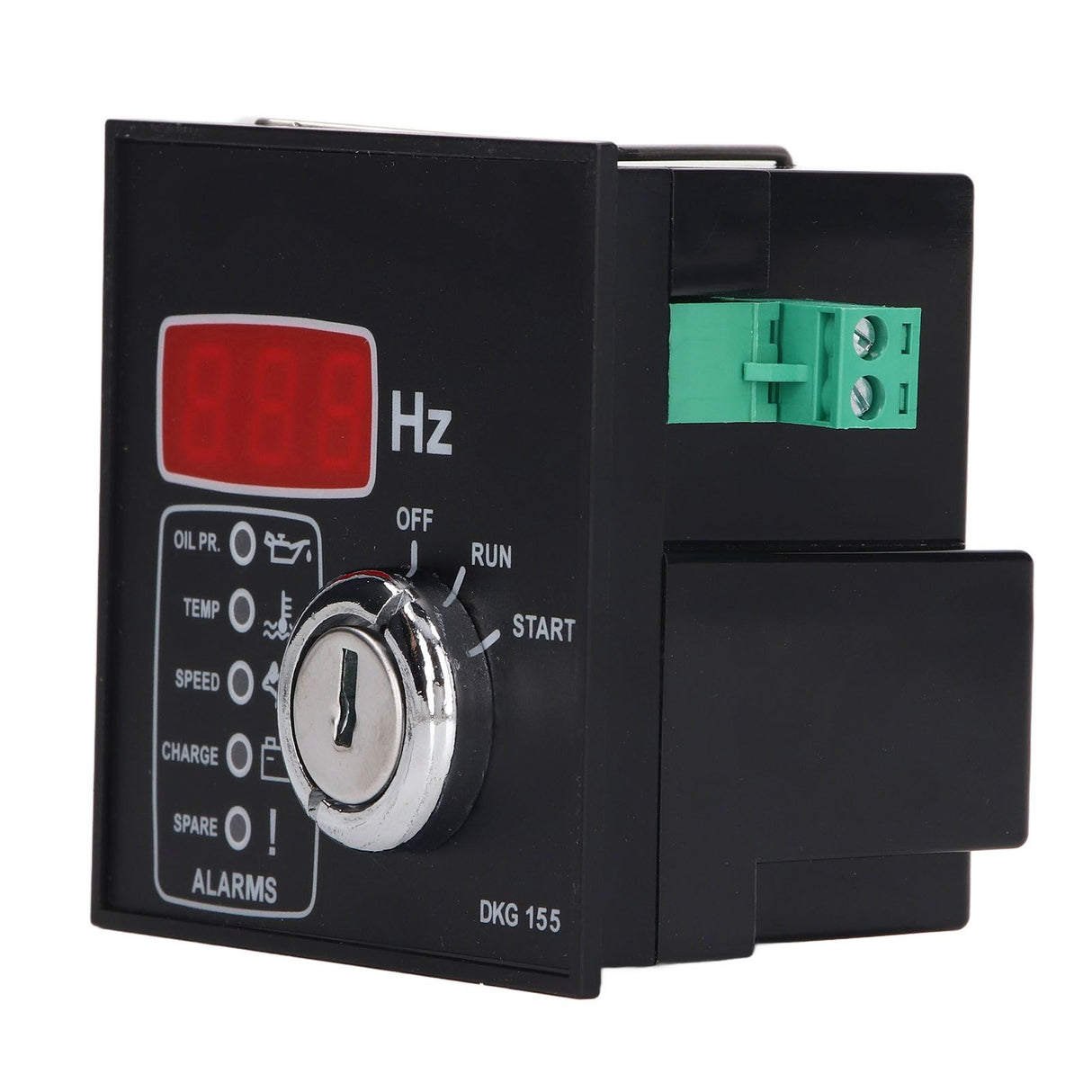

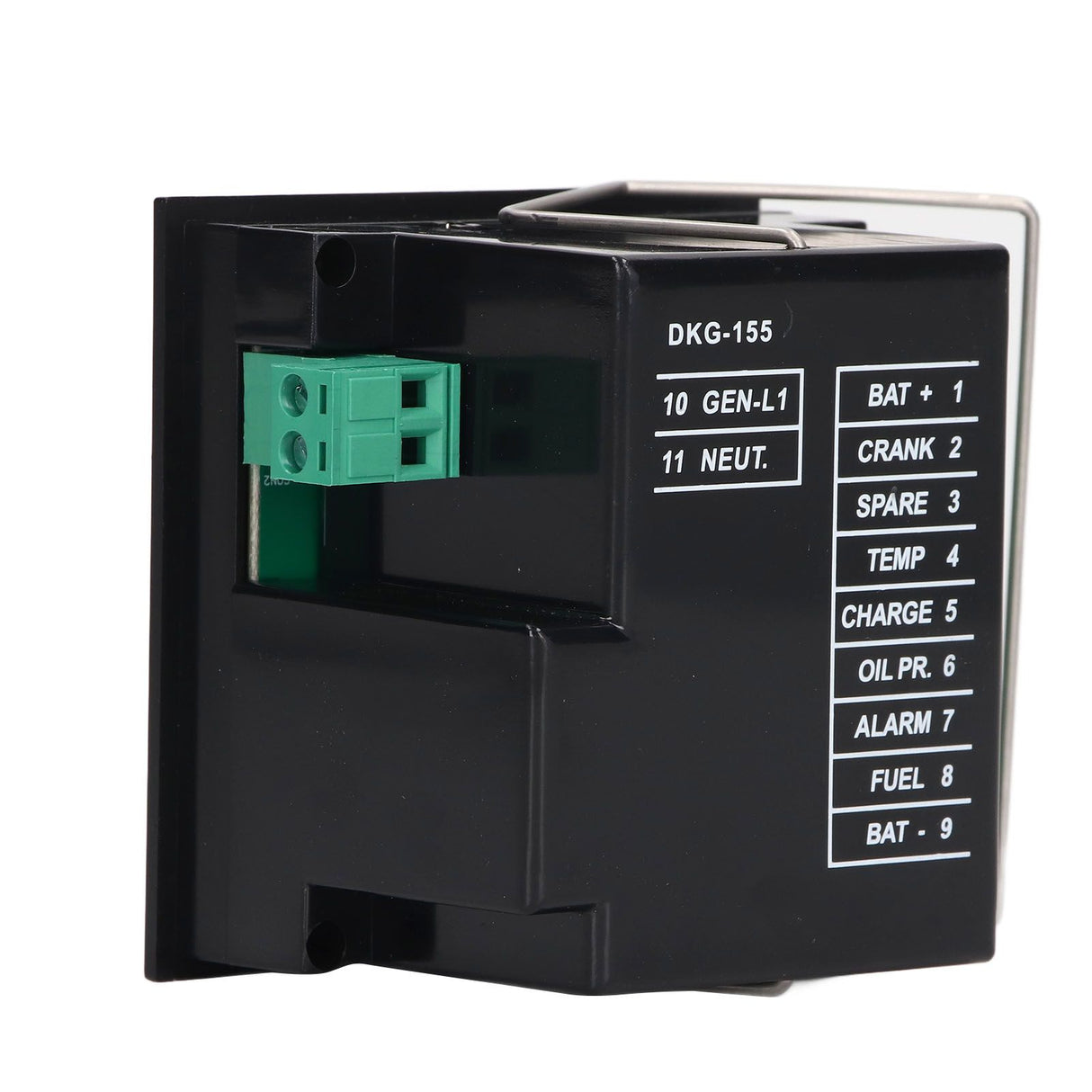

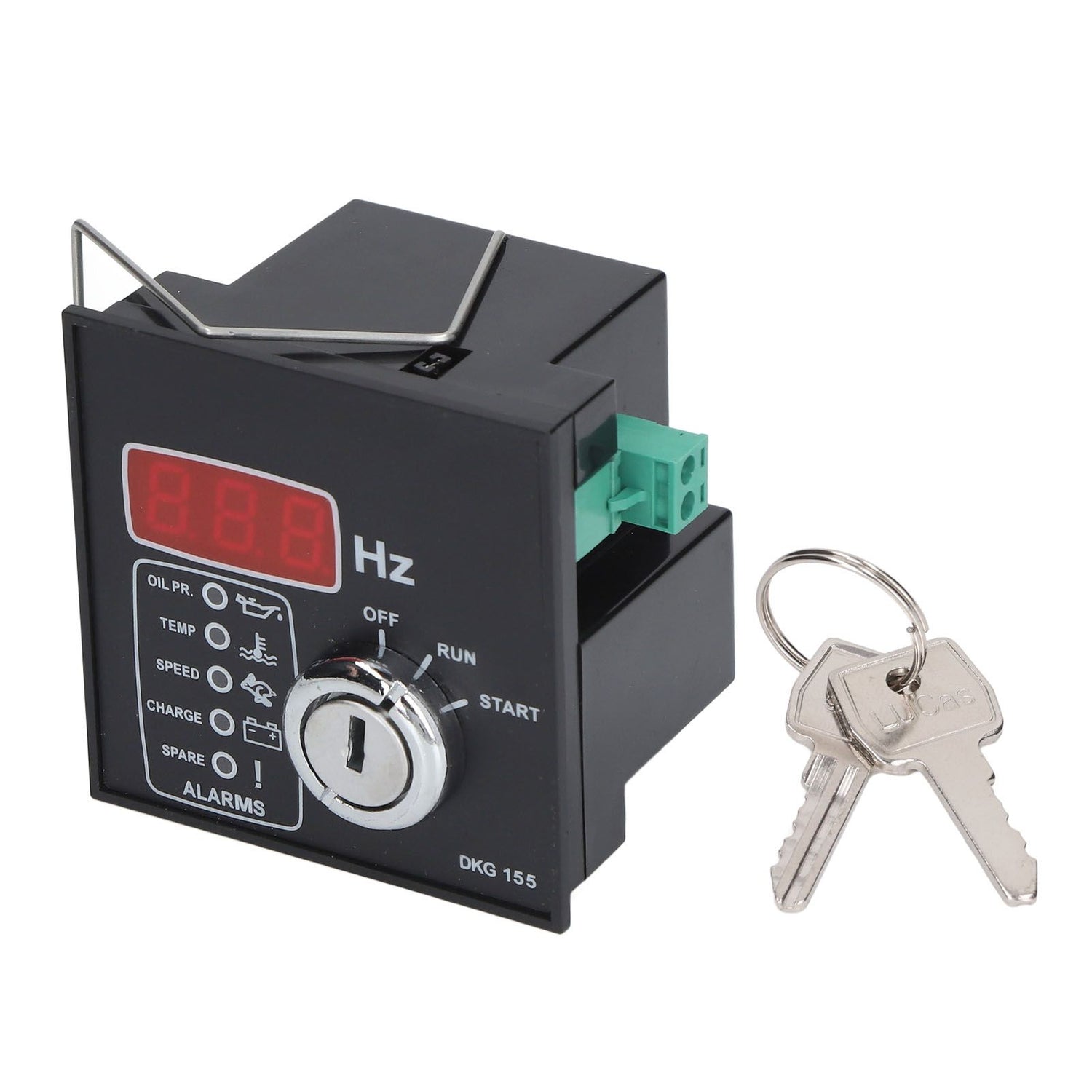

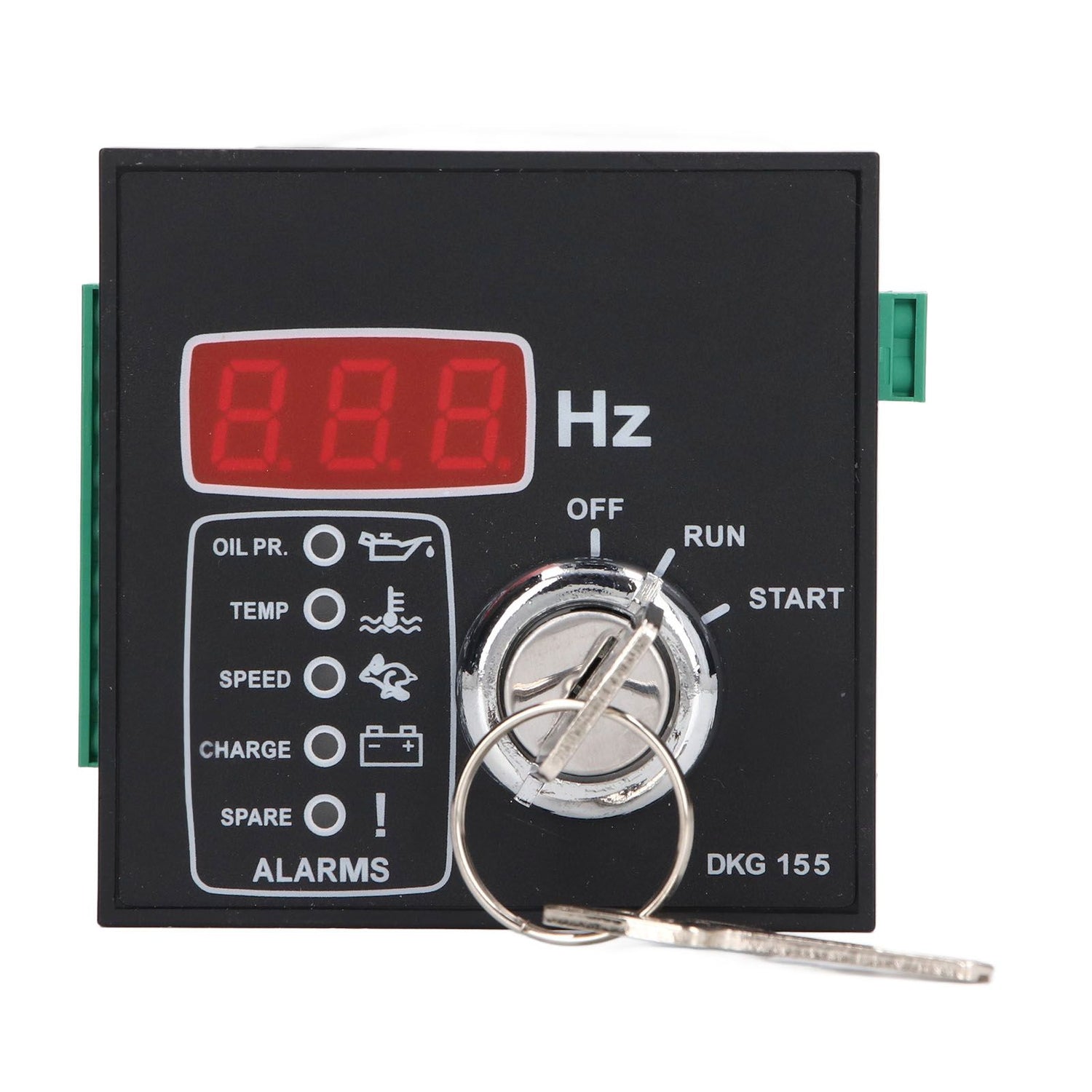

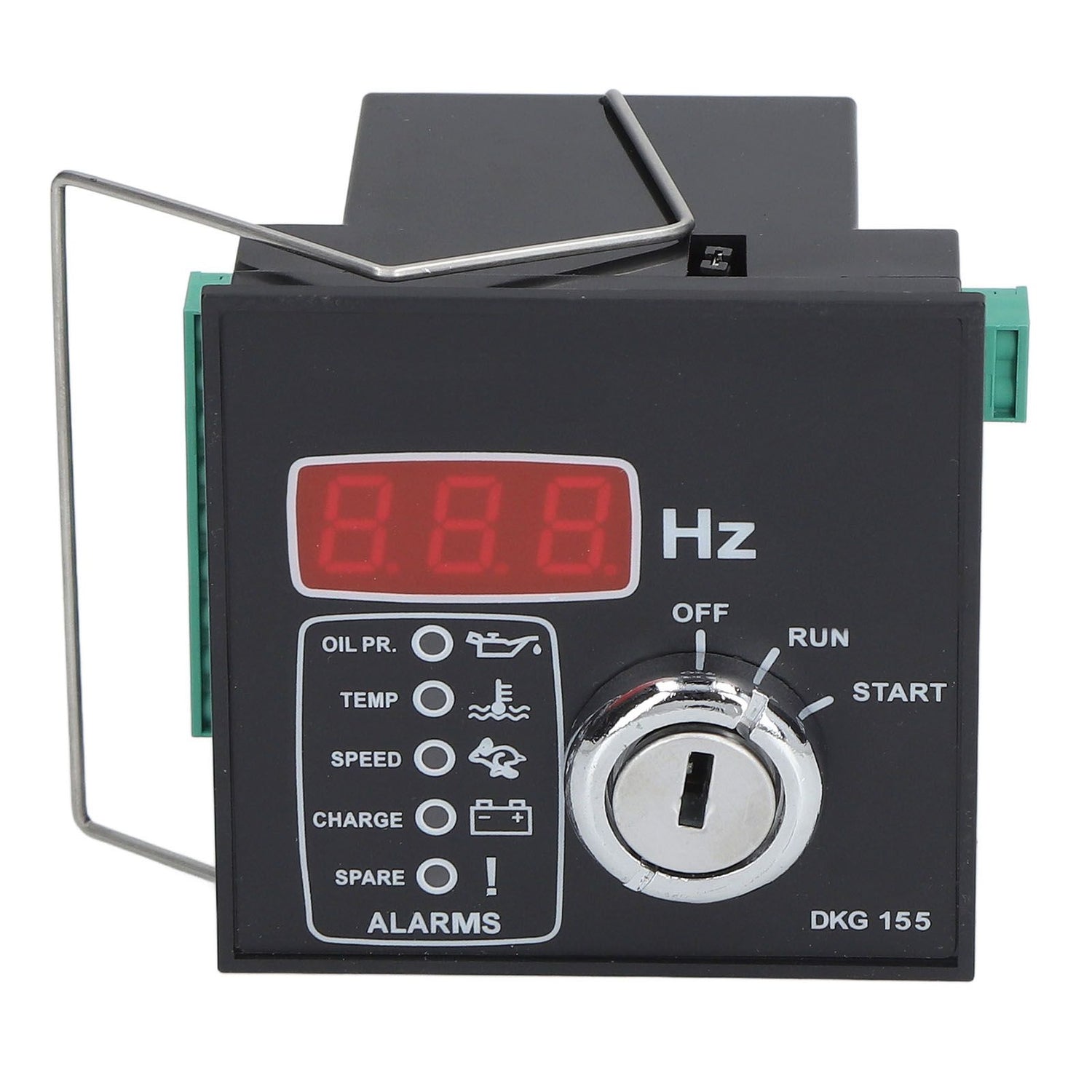

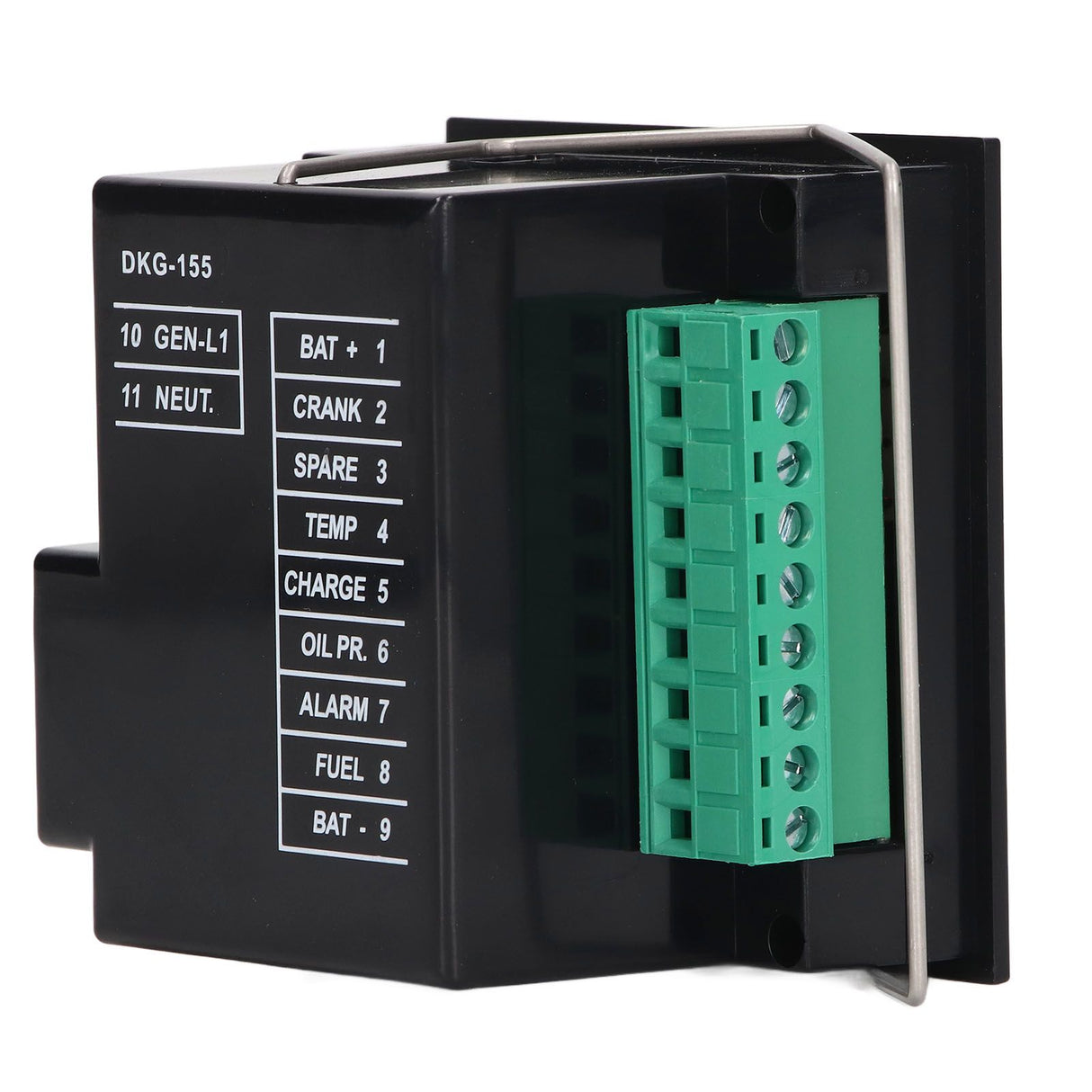

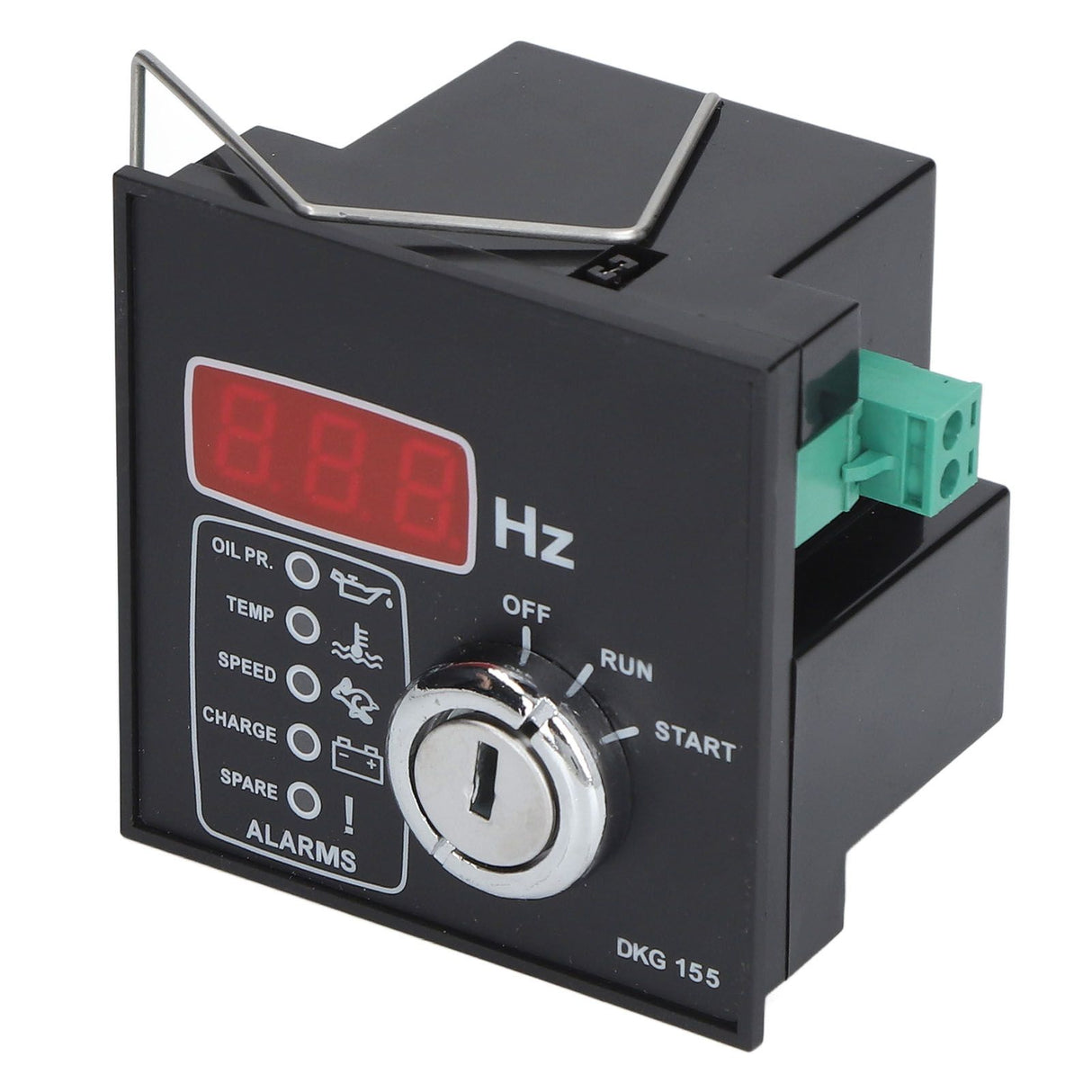

Generator Controller Electronic Generator Controller Module Control Module Replacement for Diesel Engine Or Generator

1、Automatic Control: Electronic generator controller is designed to automatically start and stop generators with a low cost controller.
2、Scope of Application: The electronic generator controller module is suitable for Class 1 to 3 gasoline and diesel generator sets.
3、Multifunctional: Generator automatic control module with generator protection, integrated alarms and warnings, etc.
4、Basic Parameters: DC power range: 9‑33V DC; AC generator voltage: 15‑300V AC, AC generator frequency: 50‑60 Hz.

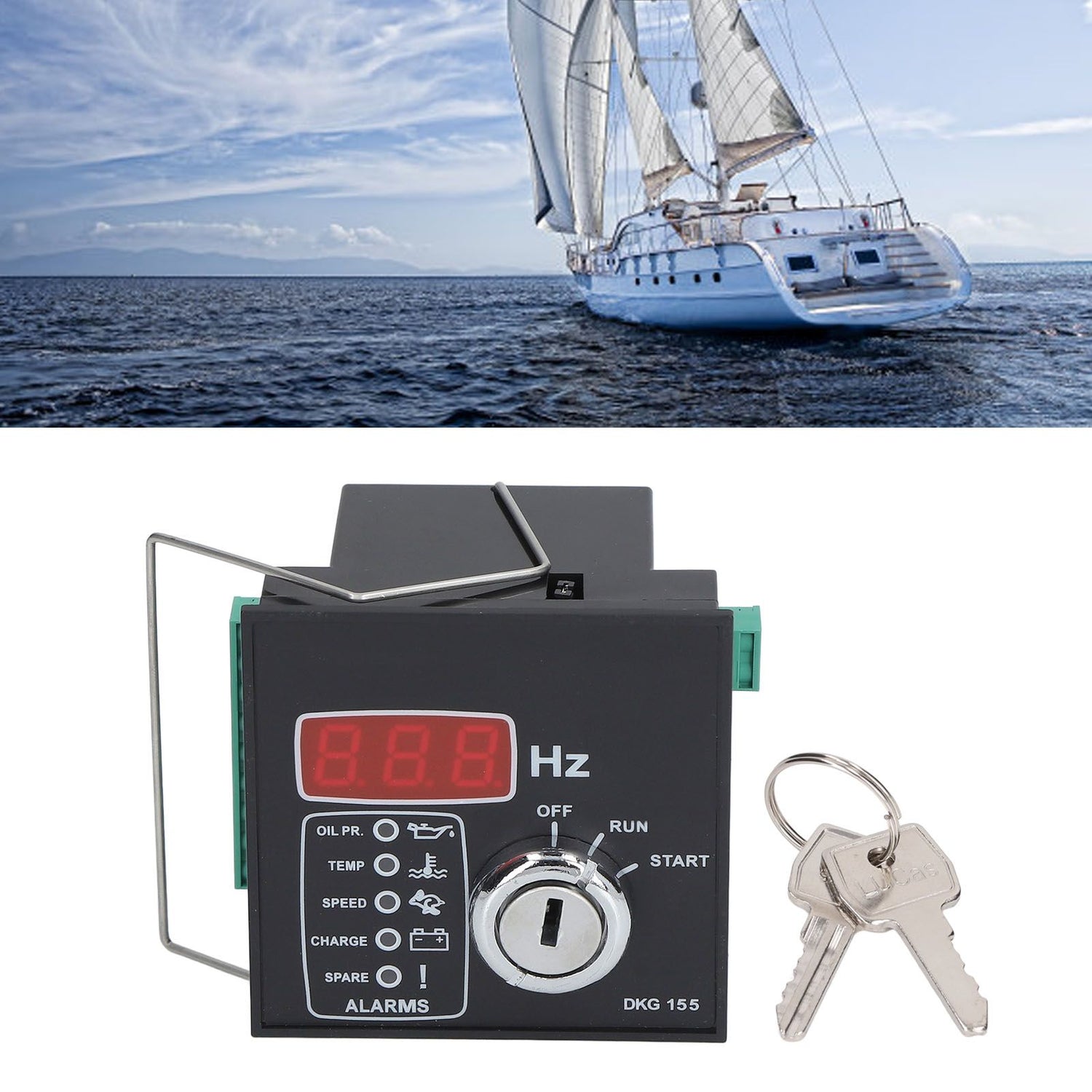

5、Easy to Install: Designed for front panel mounting. Universal use in marine, power, communications and where generators are required.
Item Type: Electronic Generator Controller
Material: ABS
Size: Approx. 8 x 7.3 x 5.7cm/3.1 x 2.9 x 2.2in
Panel Size: Approx. 68 x 68mm/2.68 x 2.68in
Alternator Voltage: 15-300V AC
Alternator Frequency: 50-60Hz
Frequency: Nominal Frequency +14% (Overshoot +24%)
Low Speed: 30Hz
DC Power Range: 9-33V DC
Current Consumption: 150mA Maximum (Relay Output On)
Charge Failure Threshold: 6V-DC
Charge Excitation Current: Connected to Fuel Output Via 220 Ohm Resistor
Operating Temperature: -20℃ (-4℉) to 70℃ (158℉)
Storage Temperature: -30℃ (-22℉) to 80℃ (176℉)
Maximum Humidity: 95% Non Condensing

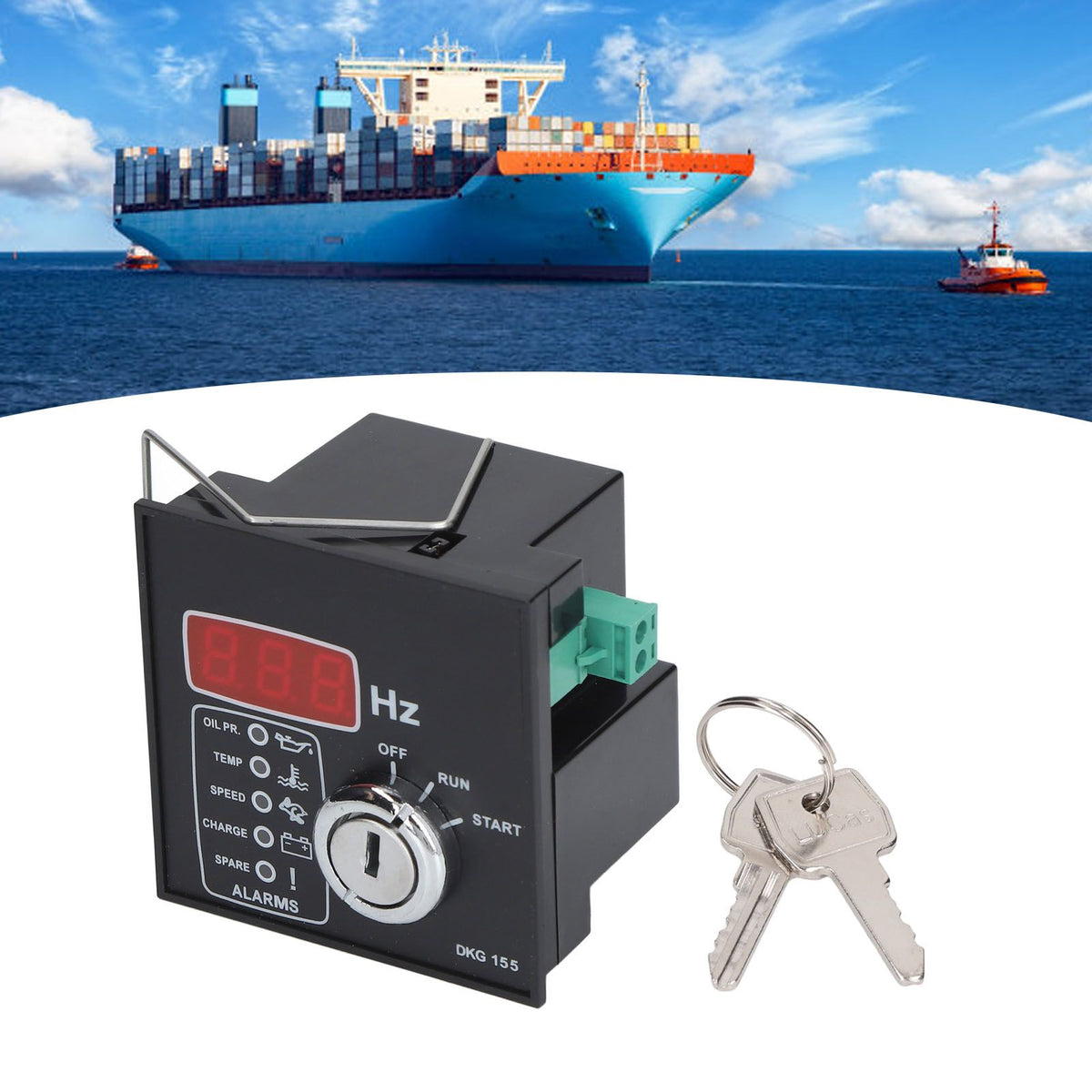

Use: Universal in Ships, Electricity, Communications,, Where Generators Are Needed
Gross Weight: Approx. 242g/8.5oz

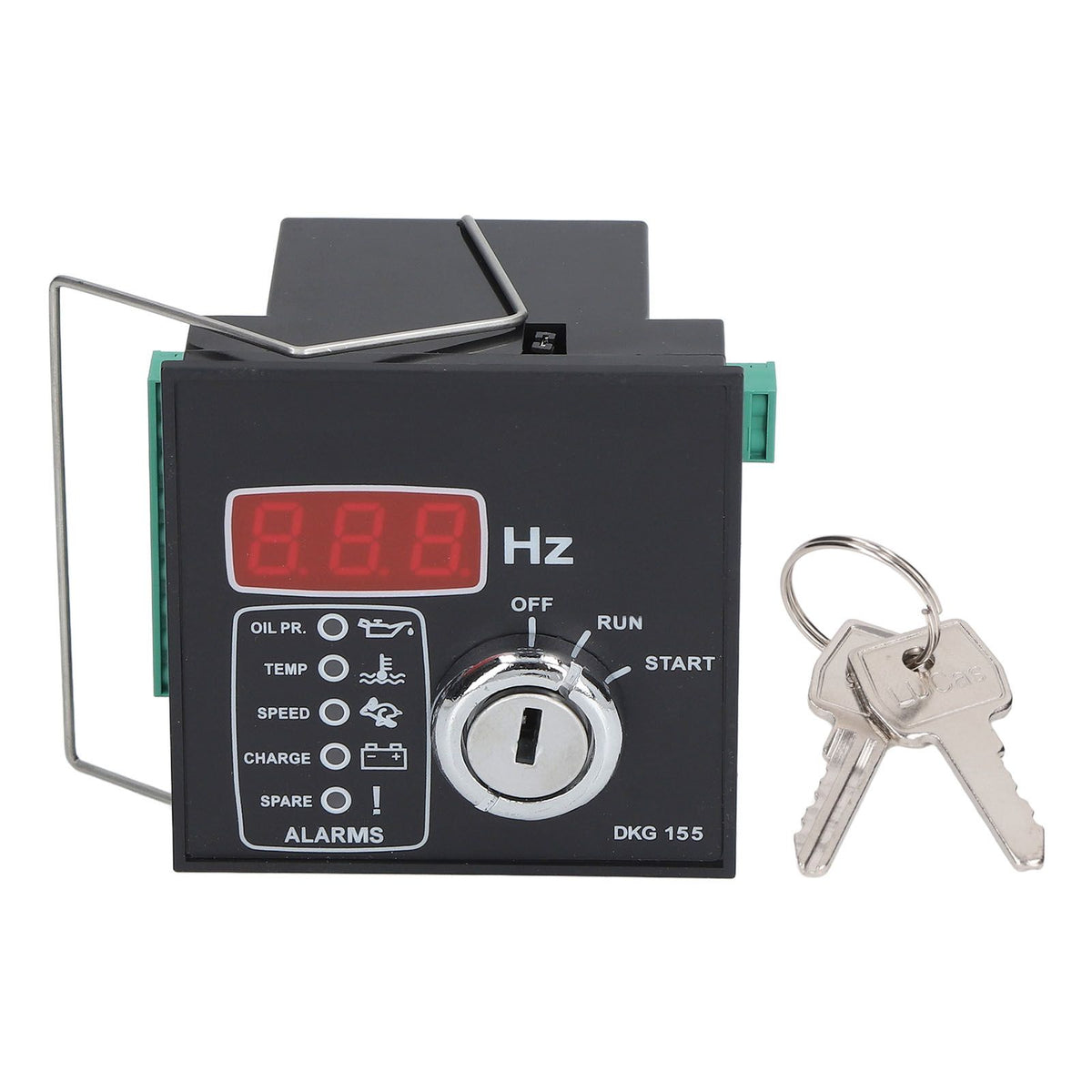

1 x Electronic Generator Controller
2 x Keys
1 x Manual
