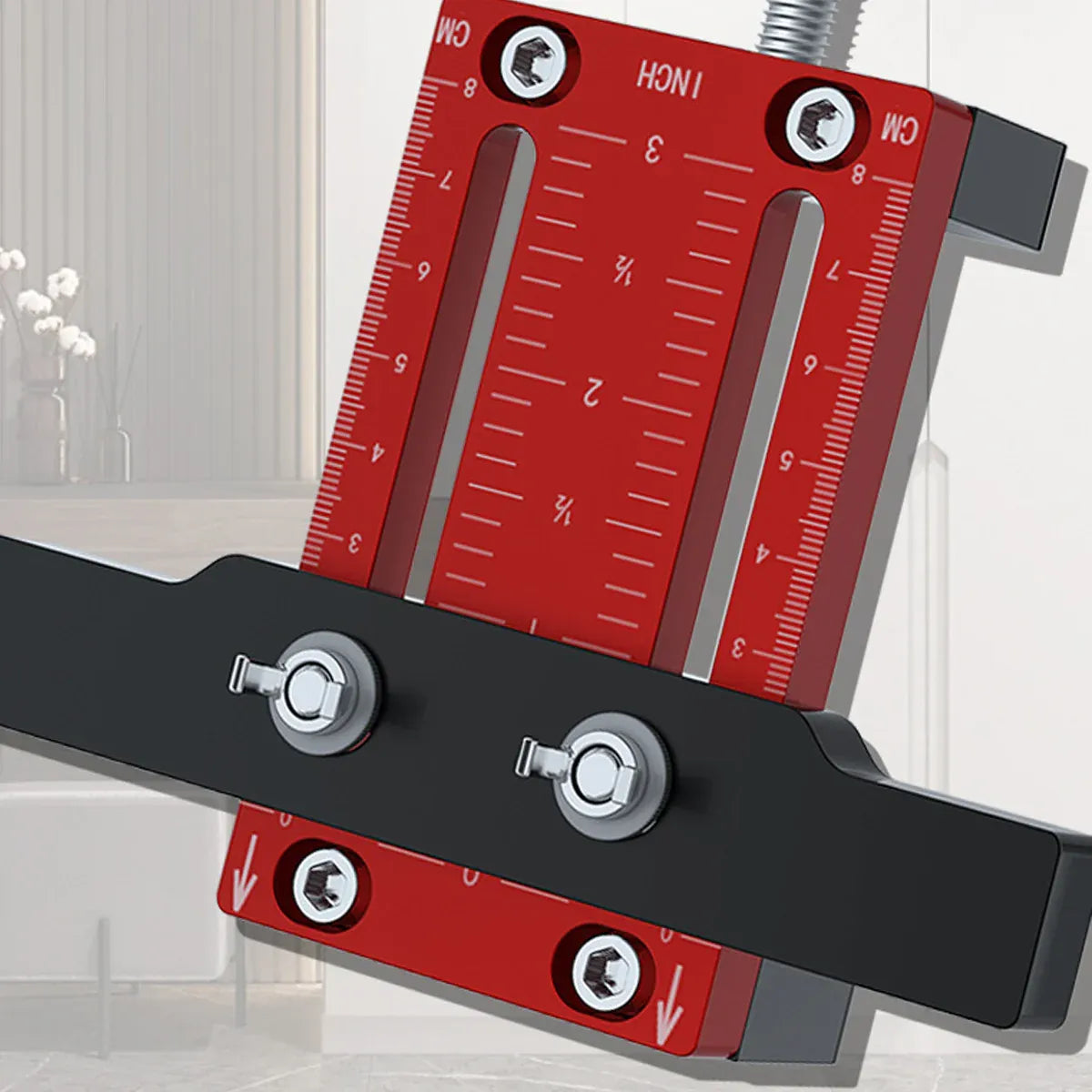

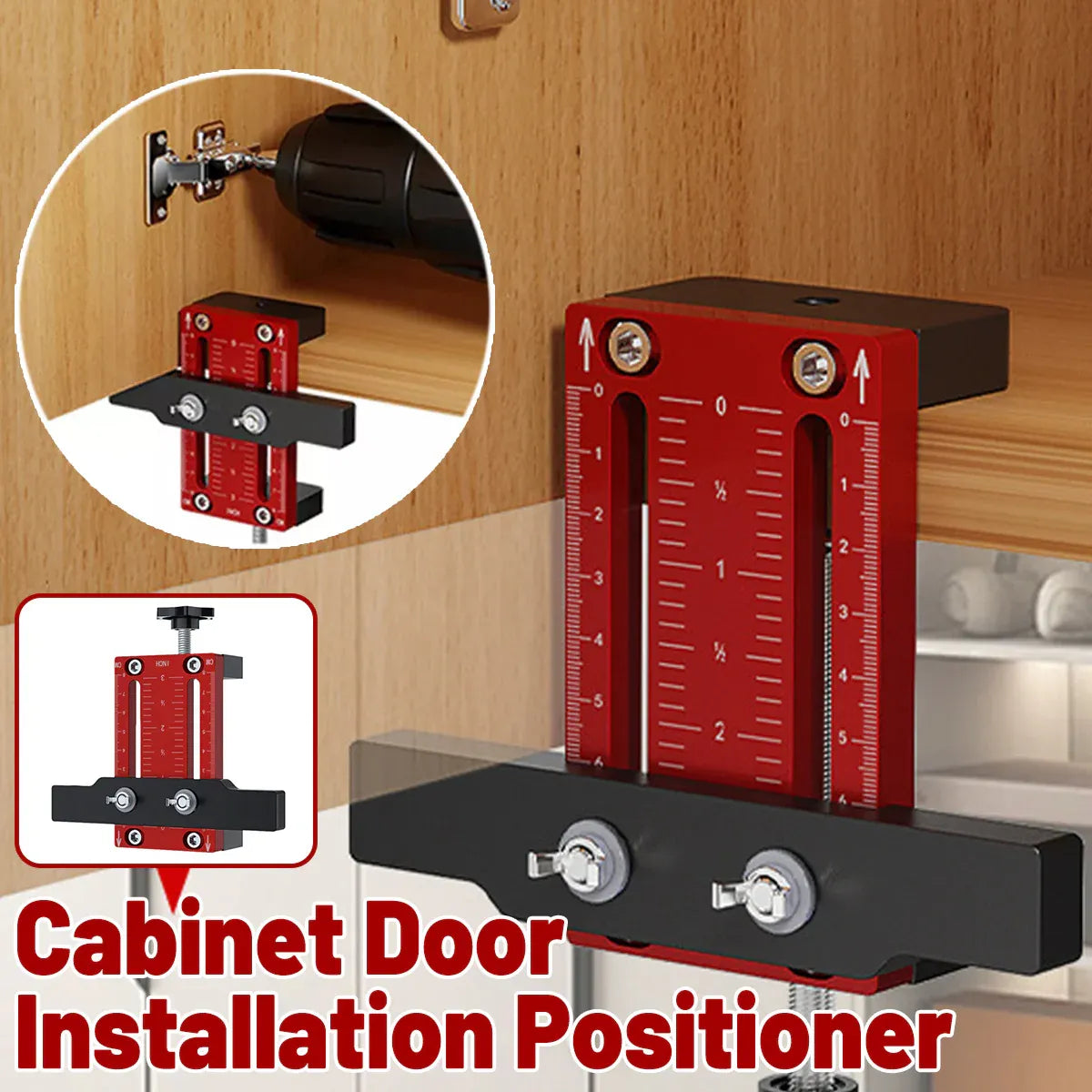

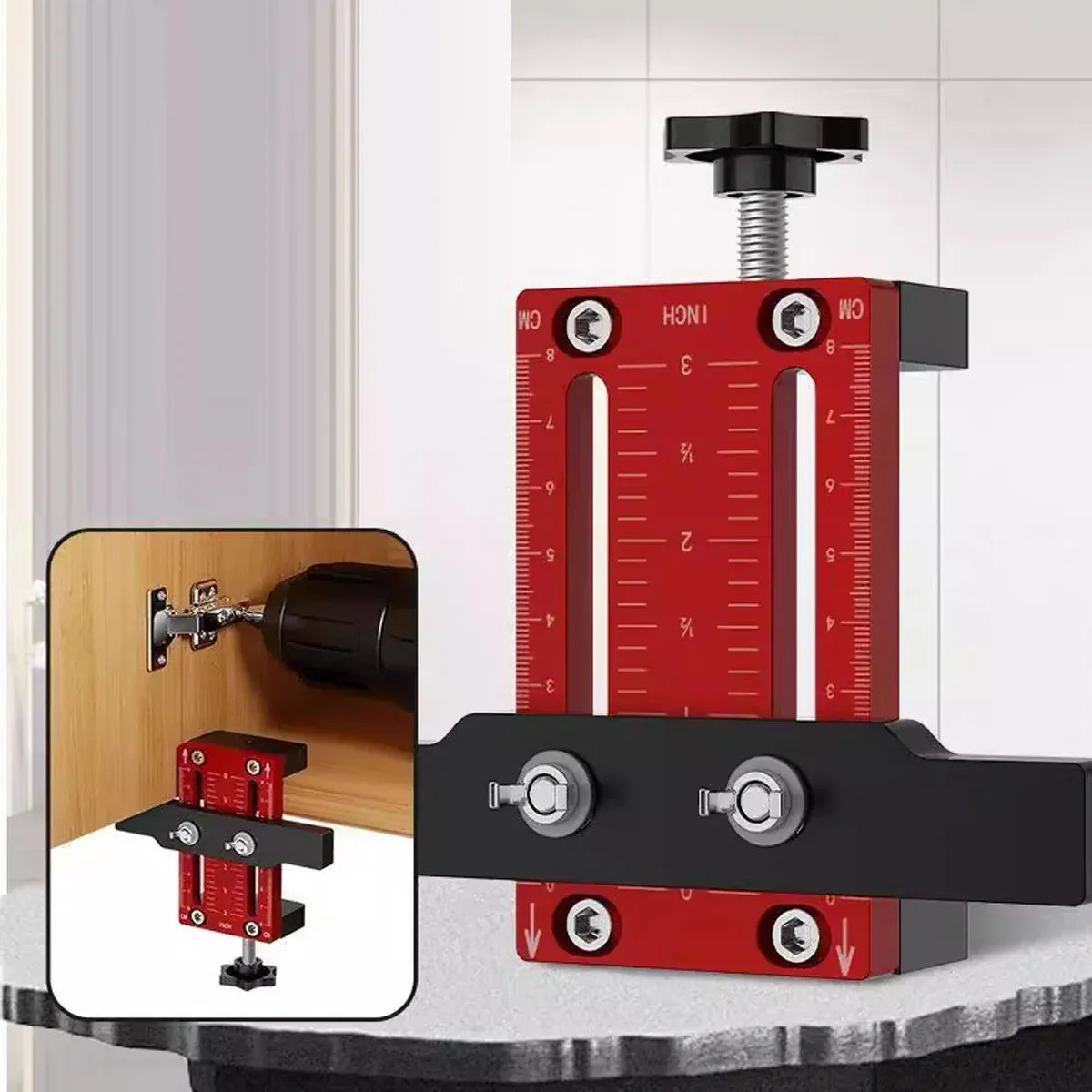

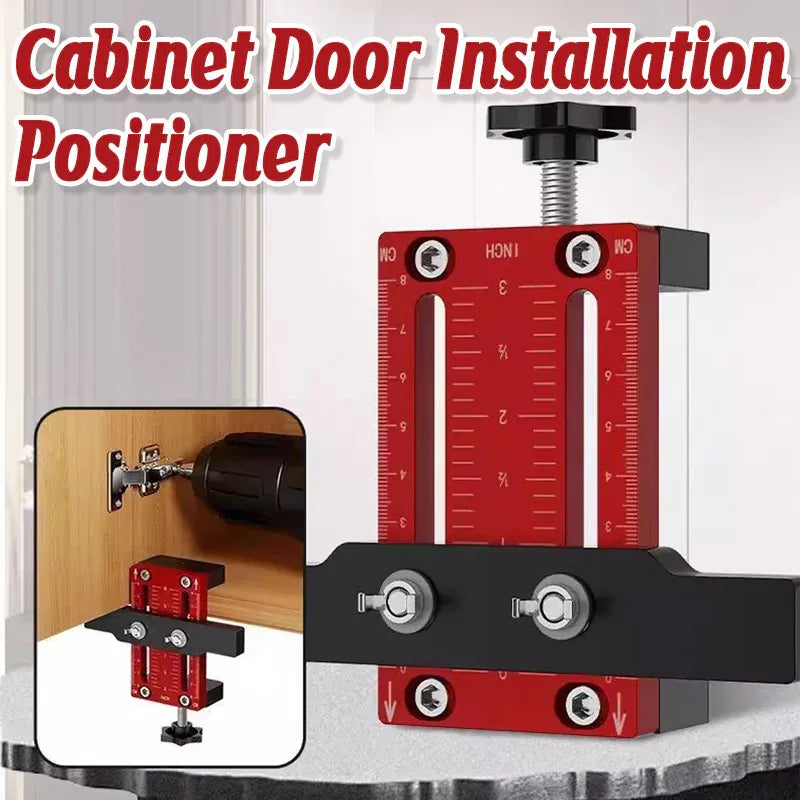

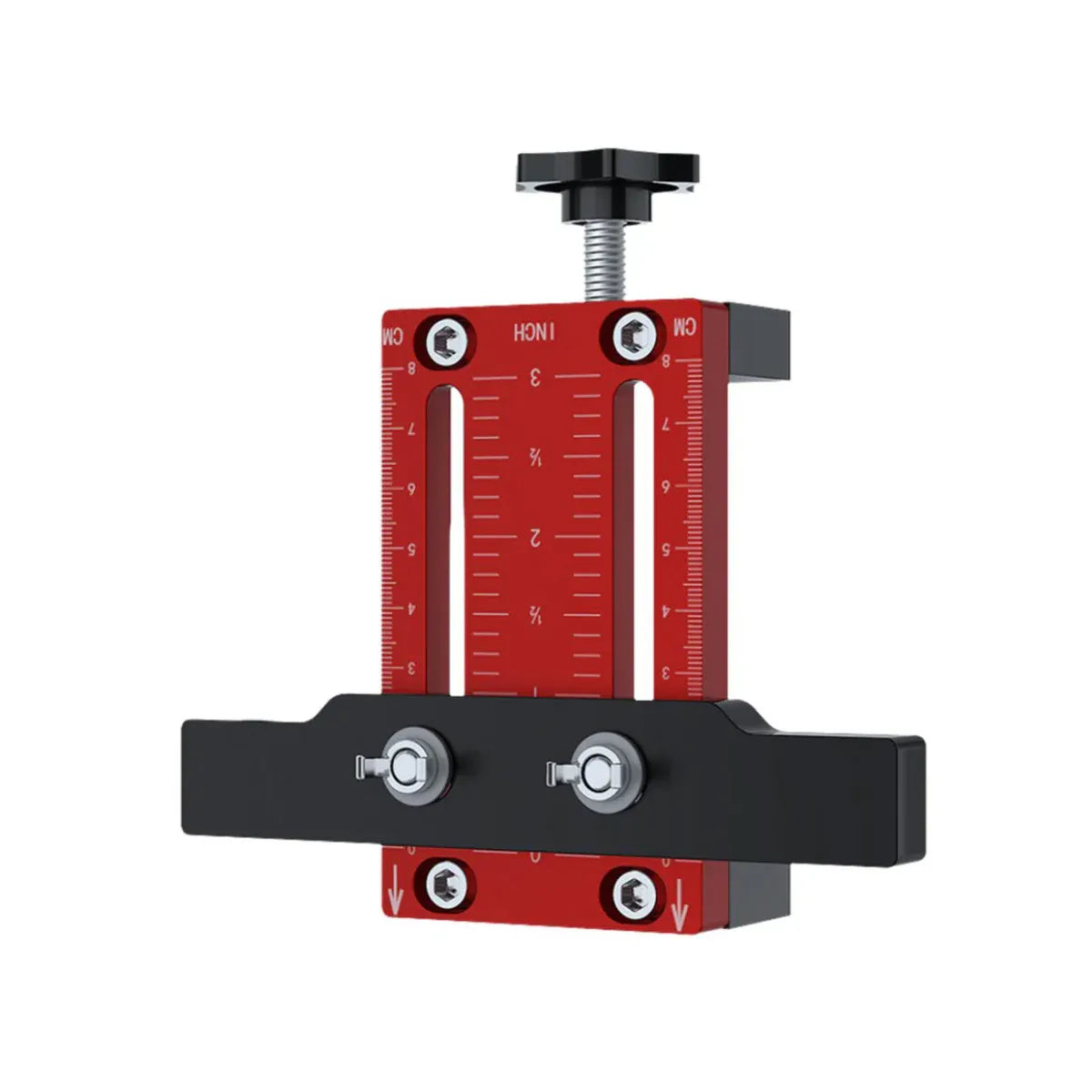

Cabinet Door Installation Locator Handle Mounting Precision Measuring Tool

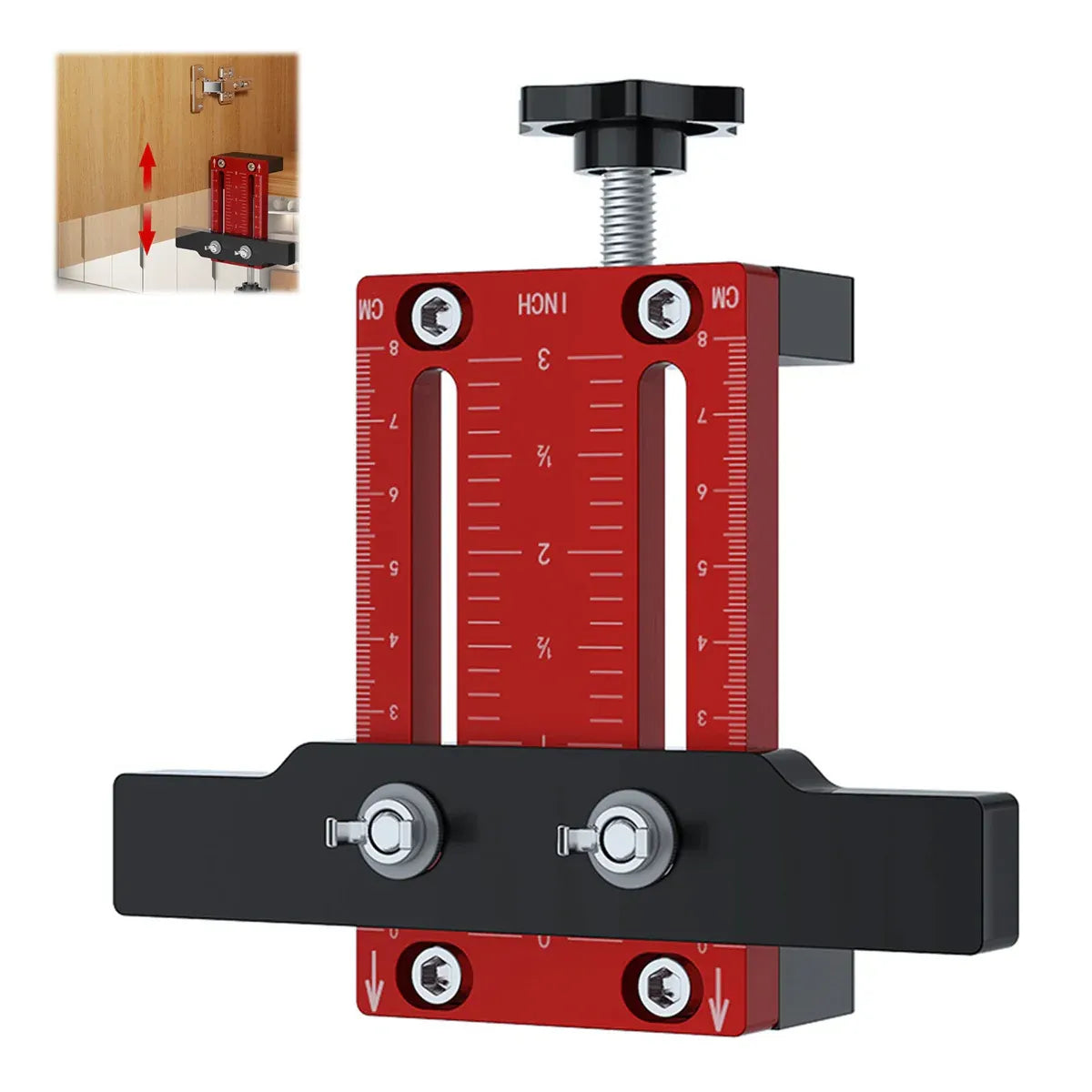

Achieve precise and hassle-free cabinet door installations with this adjustable aluminium alloy locator tool. Designed for handle, hinge, and hardware positioning, it accommodates board thicknesses from 10mm to 60mm and offers adjustable height from 120mm to 190mm (4.72in to 7.48in). It features a durable high-strength aluminium alloy frame, fine inch/metric dual-scale markings, and non-slip pads, helping professionals and DIYers drill accurately. Note: Slight colour differences may occur due to lighting and screen settings, and a 1-3cm size error is allowed due to manual measurement.

Features

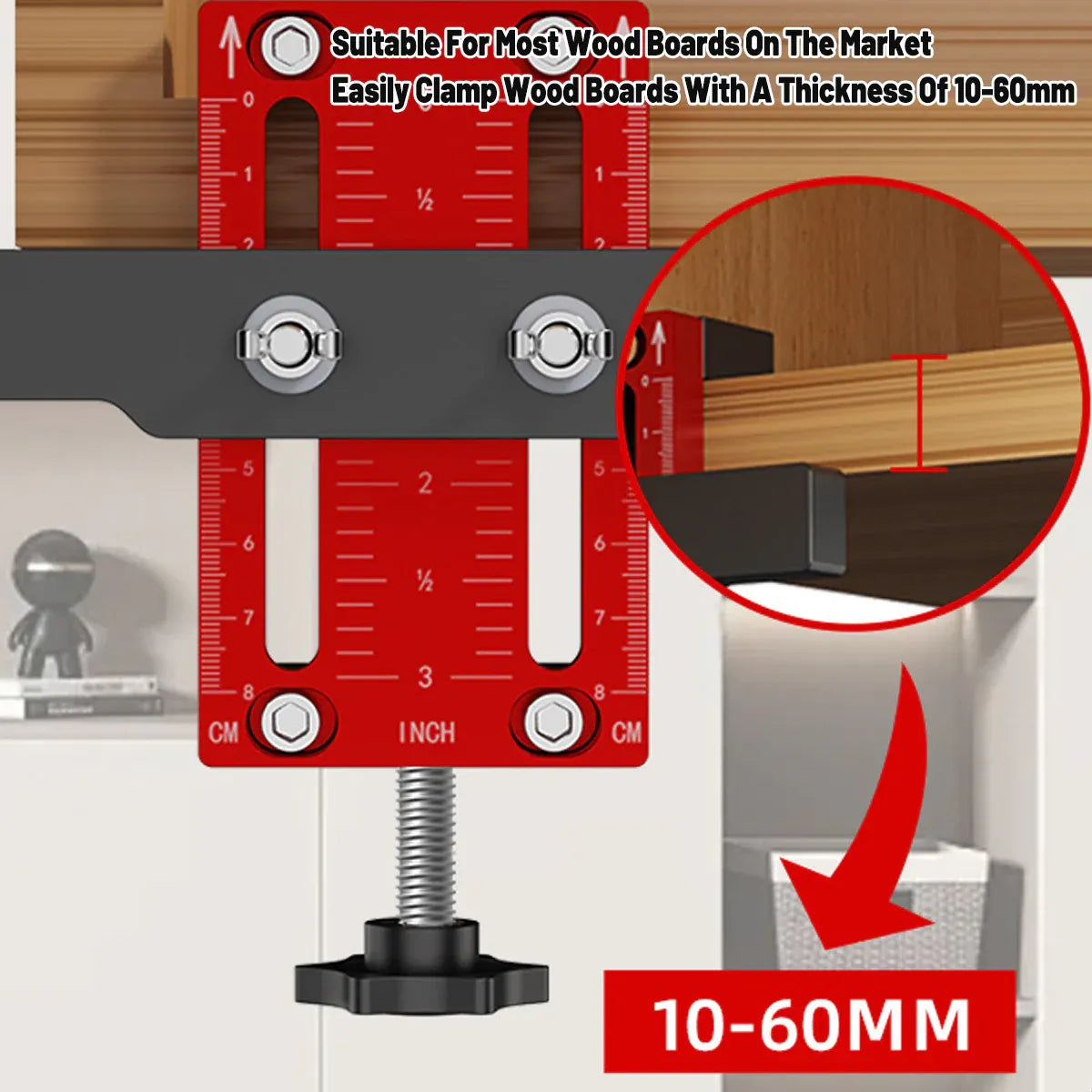

Wide Compatibility: Fits most cabinet doors and wood boards (10mm–60mm thick)

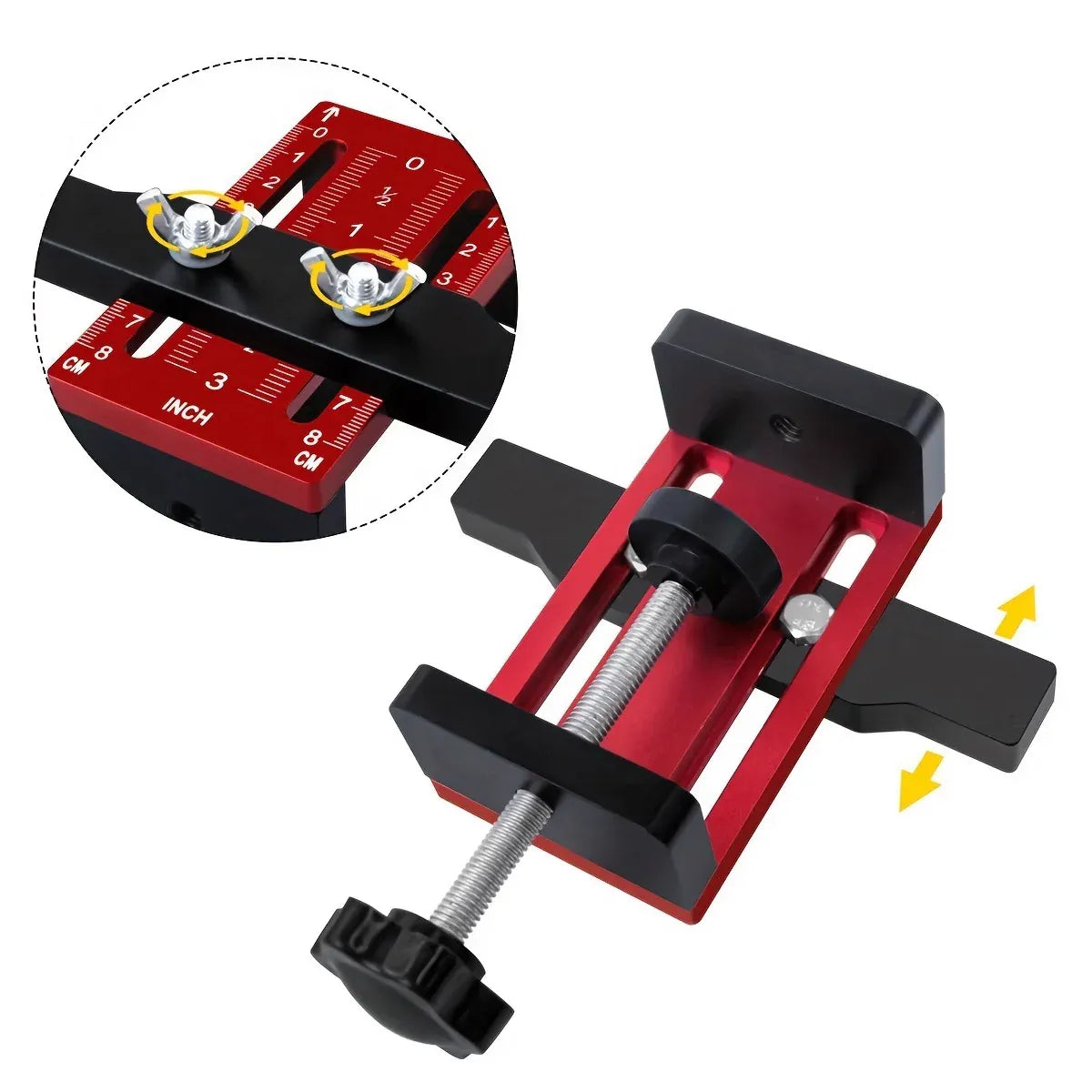

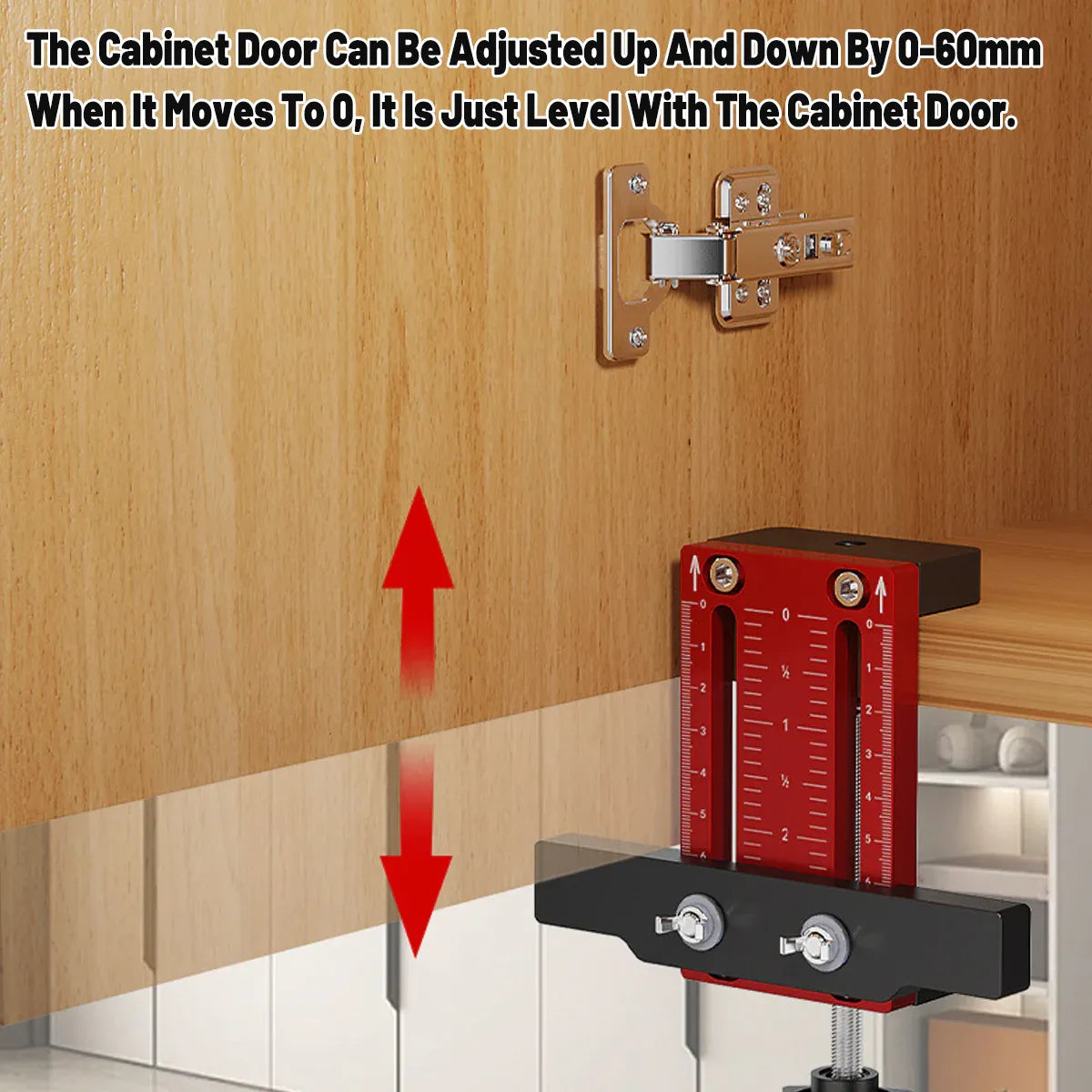

Height Adjustable: 120mm–190mm (4.72in–7.48in) adjustable height for different scenarios

Dual-Scale Precision: Clearly etched inch and metric scales for easy accurate reference

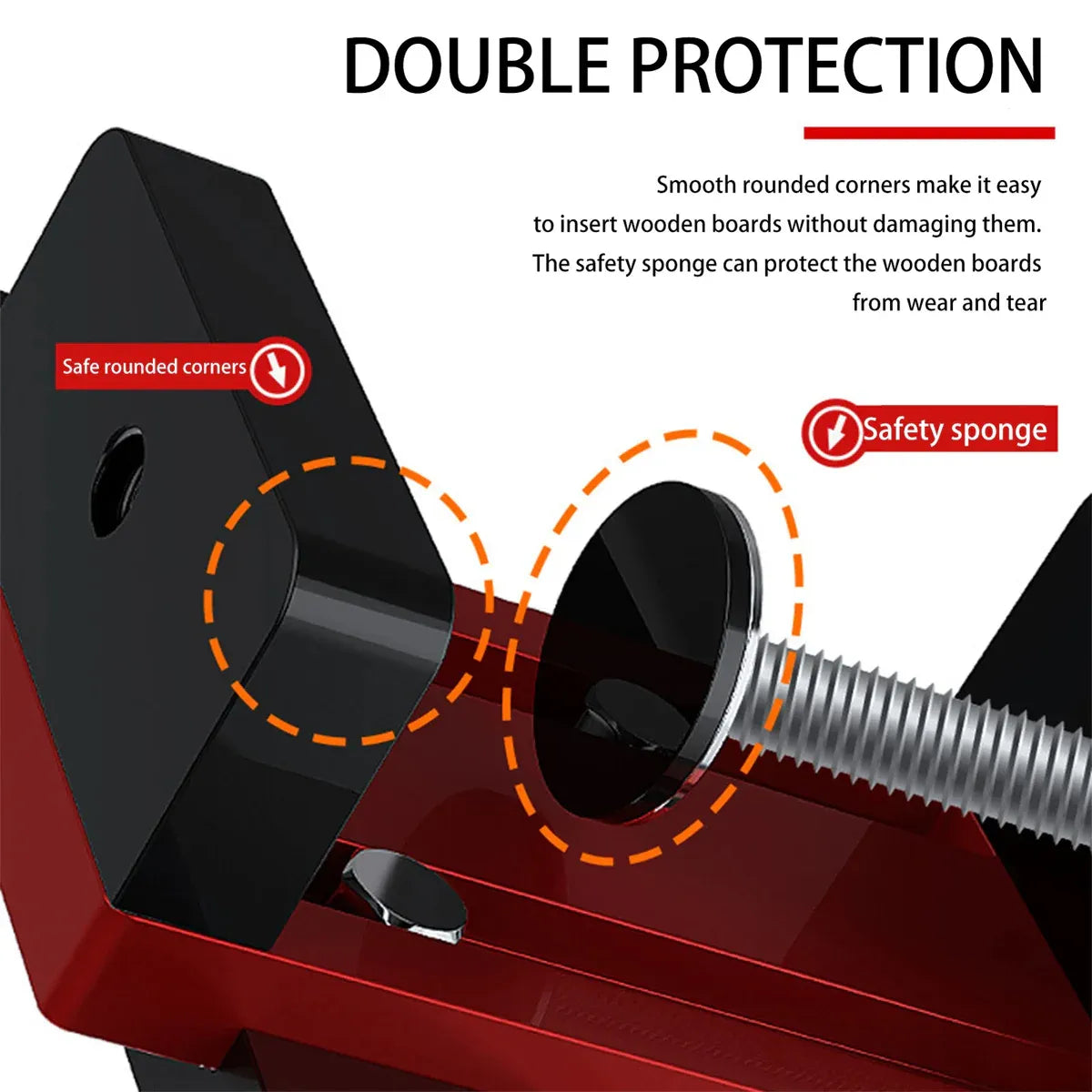

Protective Design: Rounded corners and foam pads prevent wood surface damage

Durable Aluminium Alloy: Corrosion-resistant, rustproof material for long-lasting use

Specifications

Material: Aluminium alloy

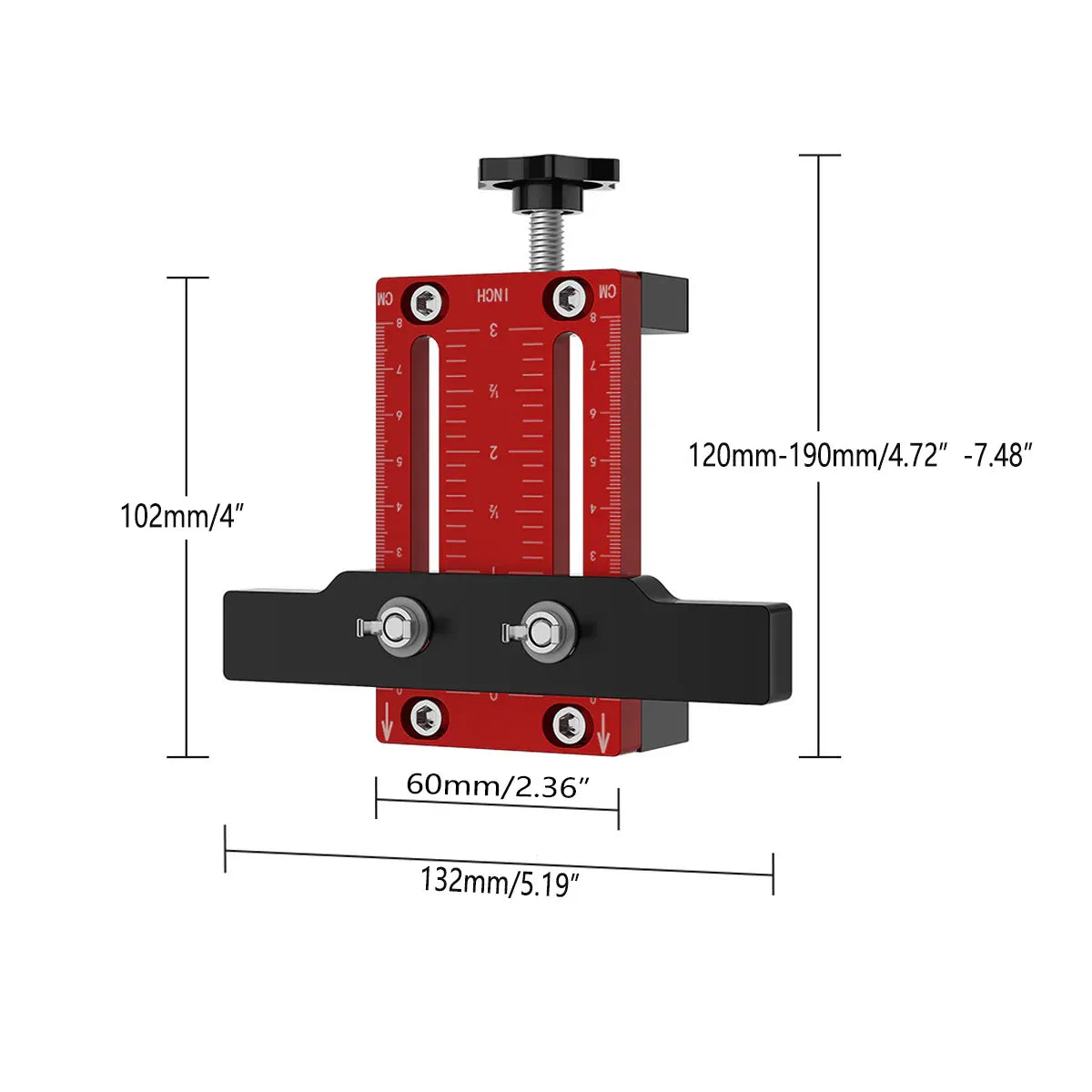

Size: Width 132mm/5.19in, Base Height 102mm/4in, Adjustable Height 120–190mm/4.72in–7.48in (1-3cm size error allowed)

Board Thickness Compatibility: 10–60mm

Measurement Units: Inch cm (dual scale)

Package Includes

1 × Cabinet Door Installation Locator Tool

Note

Please ensure the board thickness does not exceed 60mm.

Keep out of reach of young ones when in use.

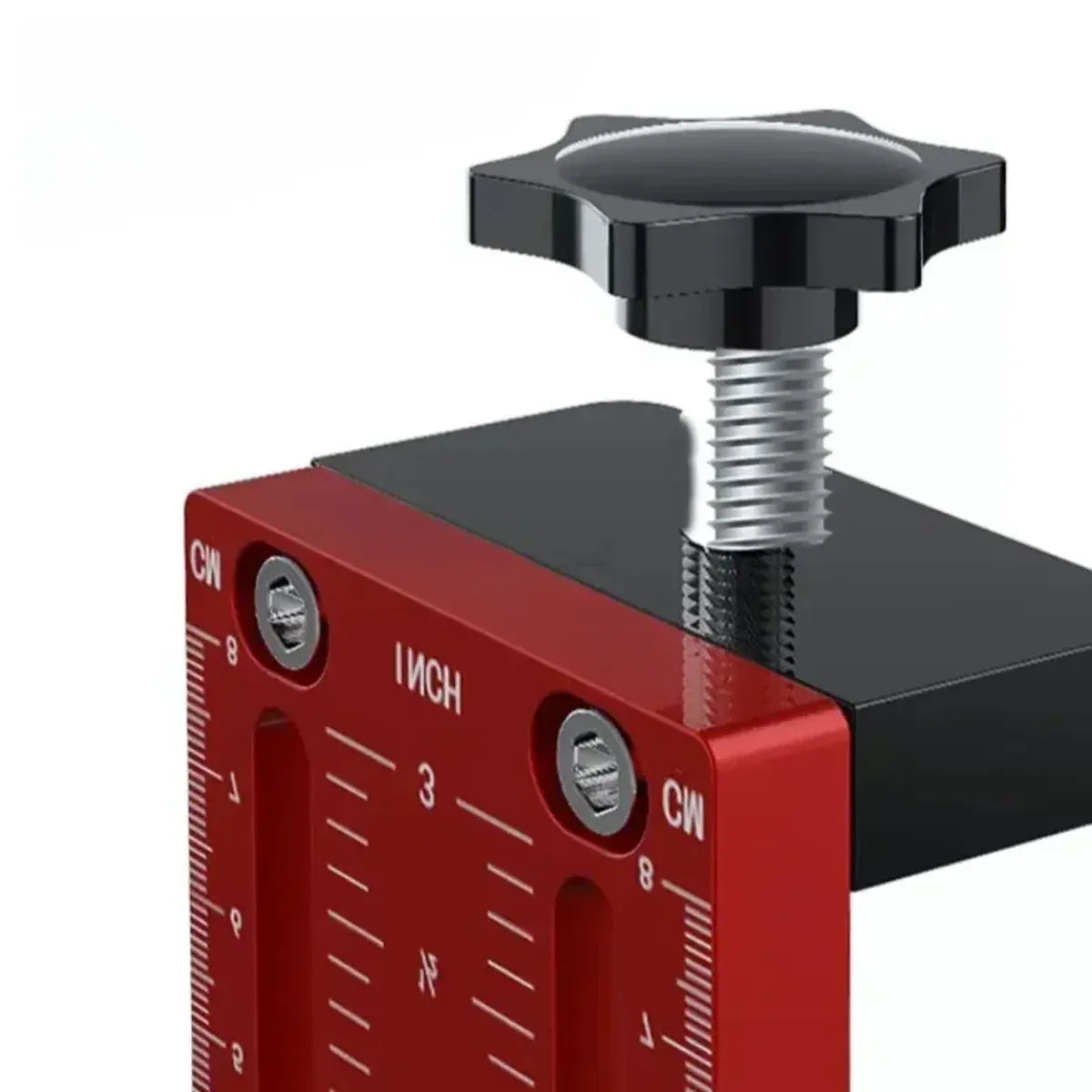

Use caution to avoid injury when adjusting the tightening knobs or clamping onto surfaces.

Slight colour differences may exist due to lighting and screen settings.

A 1-3cm size error is permitted due to manual measurement.
