Aluminum Alloy Door Hinge Installation Locator Jig with Adjustable Sliding Blocks for Woodworking Door Fitting, Routing, and Screw Hole Positioning (Red)

Product Title

Aluminum Alloy Door Hinge Installation Locator Jig with Adjustable Sliding Blocks for Woodworking Door Fitting, Routing, and Screw Hole Positioning

Product Description

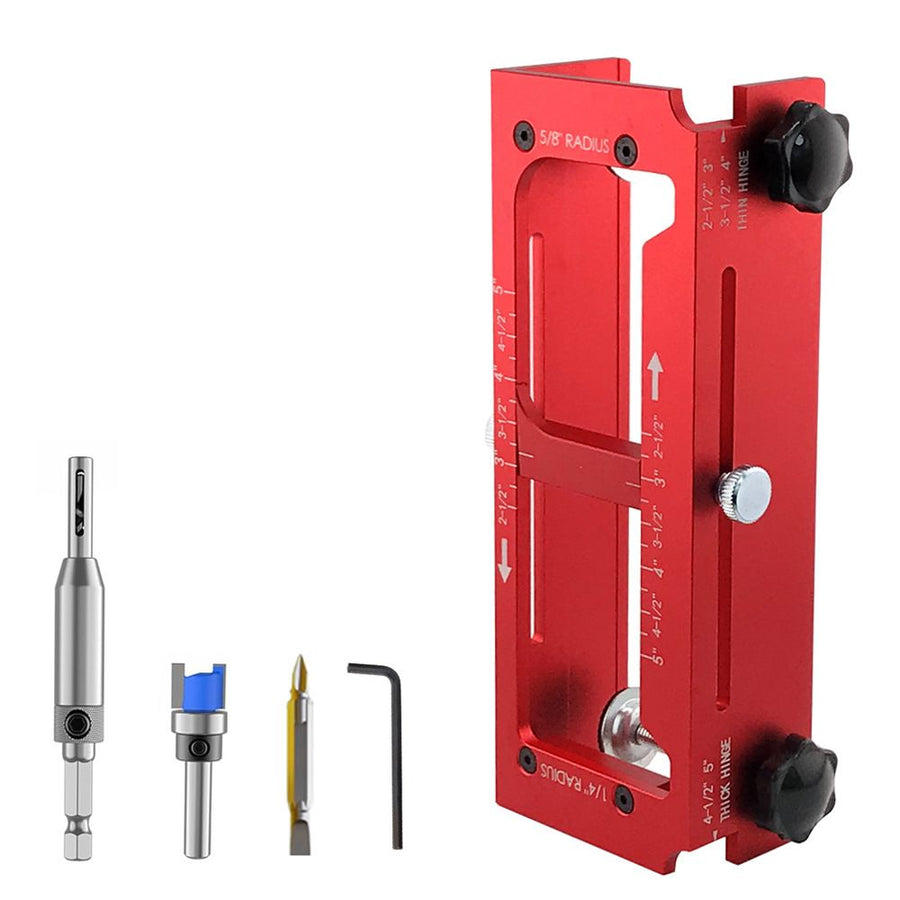

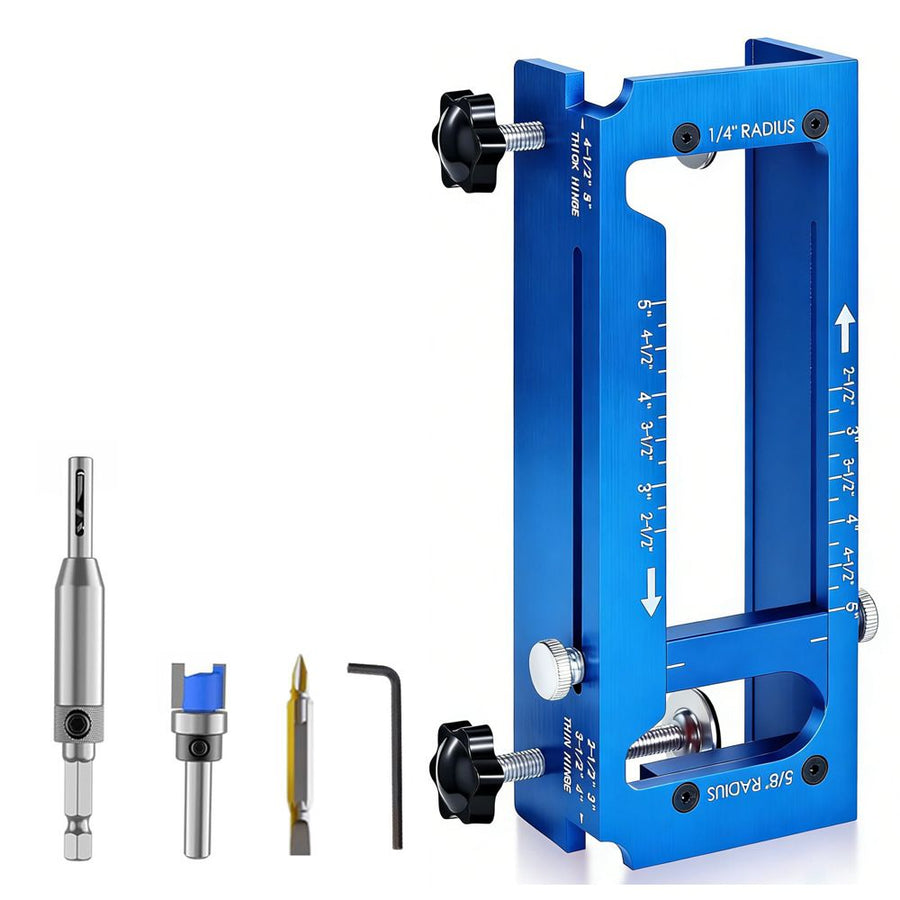

Achieving perfectly aligned door hinges has never been easier with this aluminum alloy hinge installation locator. Designed for woodworking and home improvement enthusiasts, this rectangular frame-style jig features adjustable limit sliders and clamping screws that securely hold your door in place while you work. The sturdy construction combines a lightweight aluminum body with durable metal components, ensuring long-lasting performance across multiple projects. Available in red, blue, or black, each unit includes silver scale markings and black adjustment knobs for precise, repeatable setups.

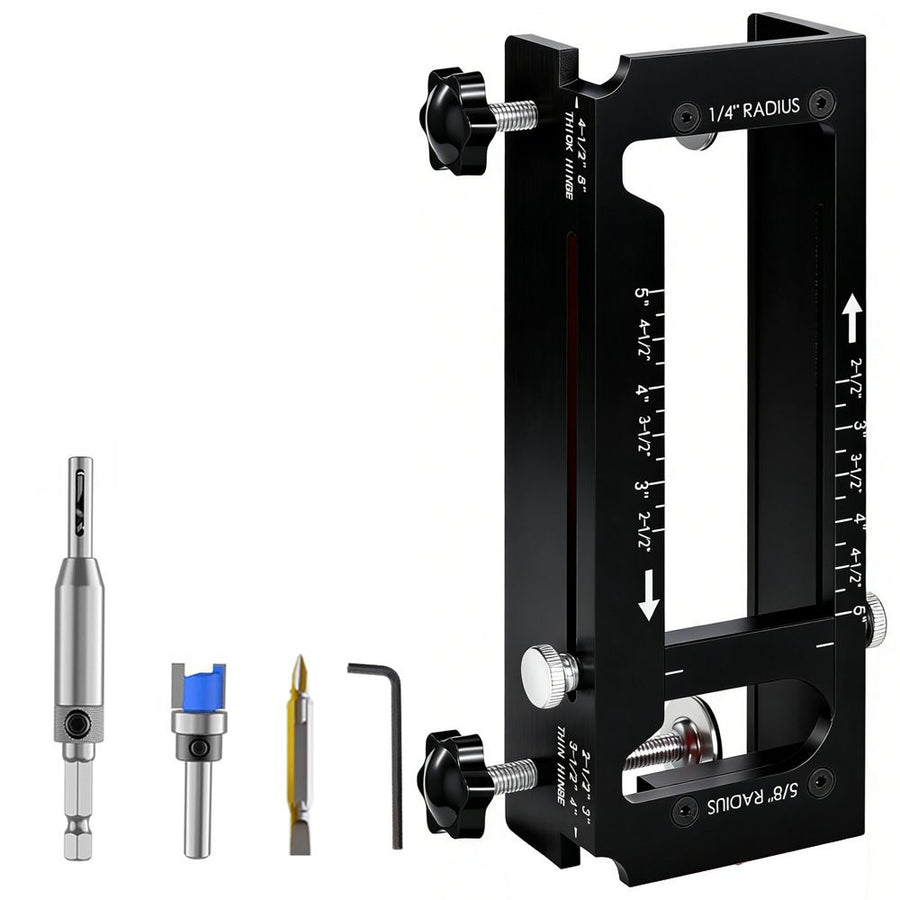

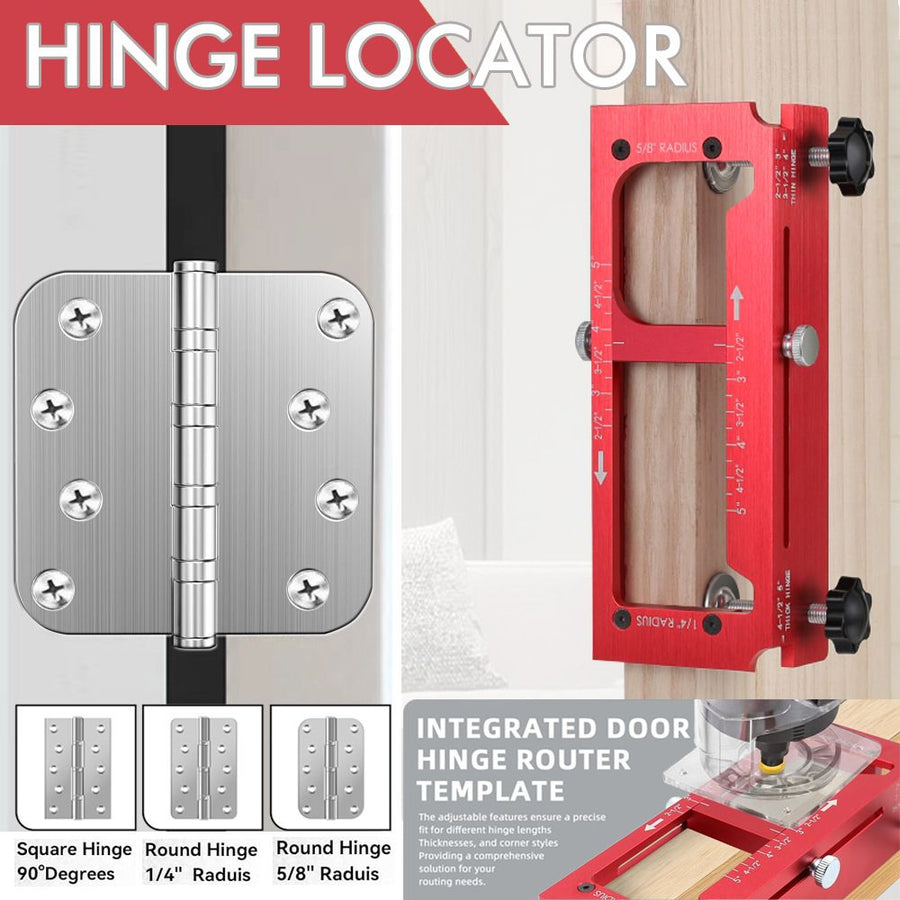

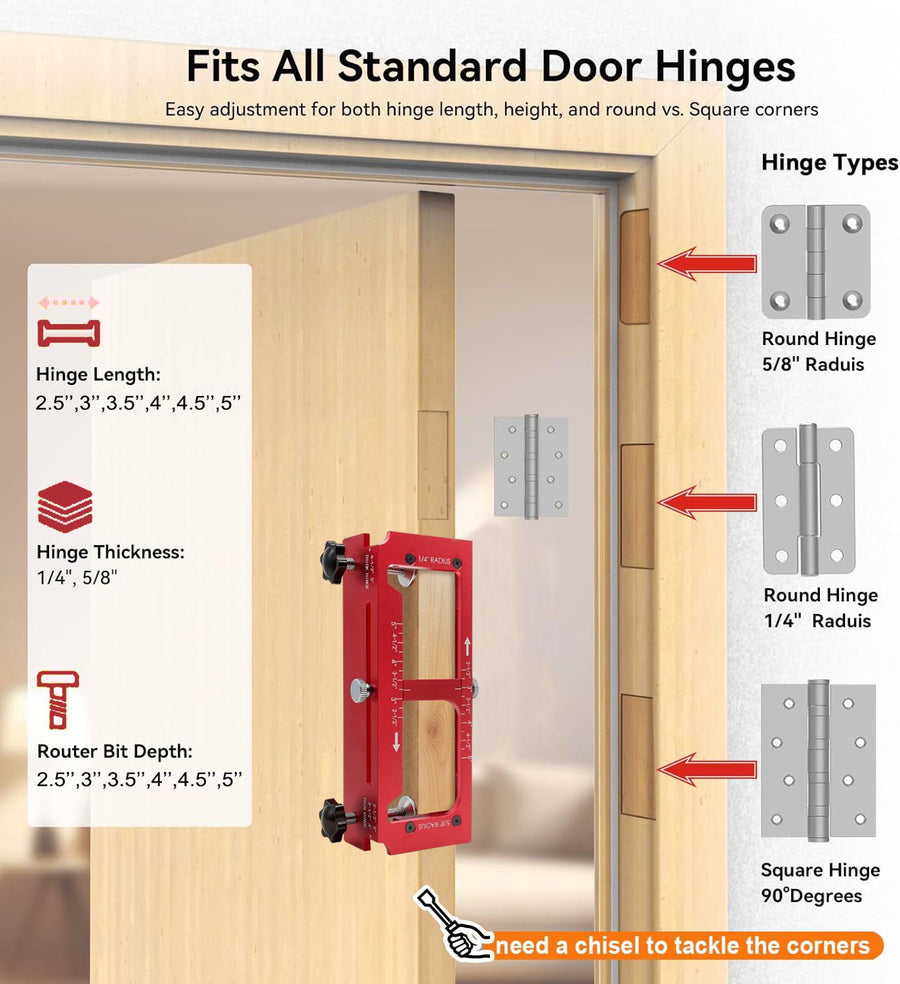

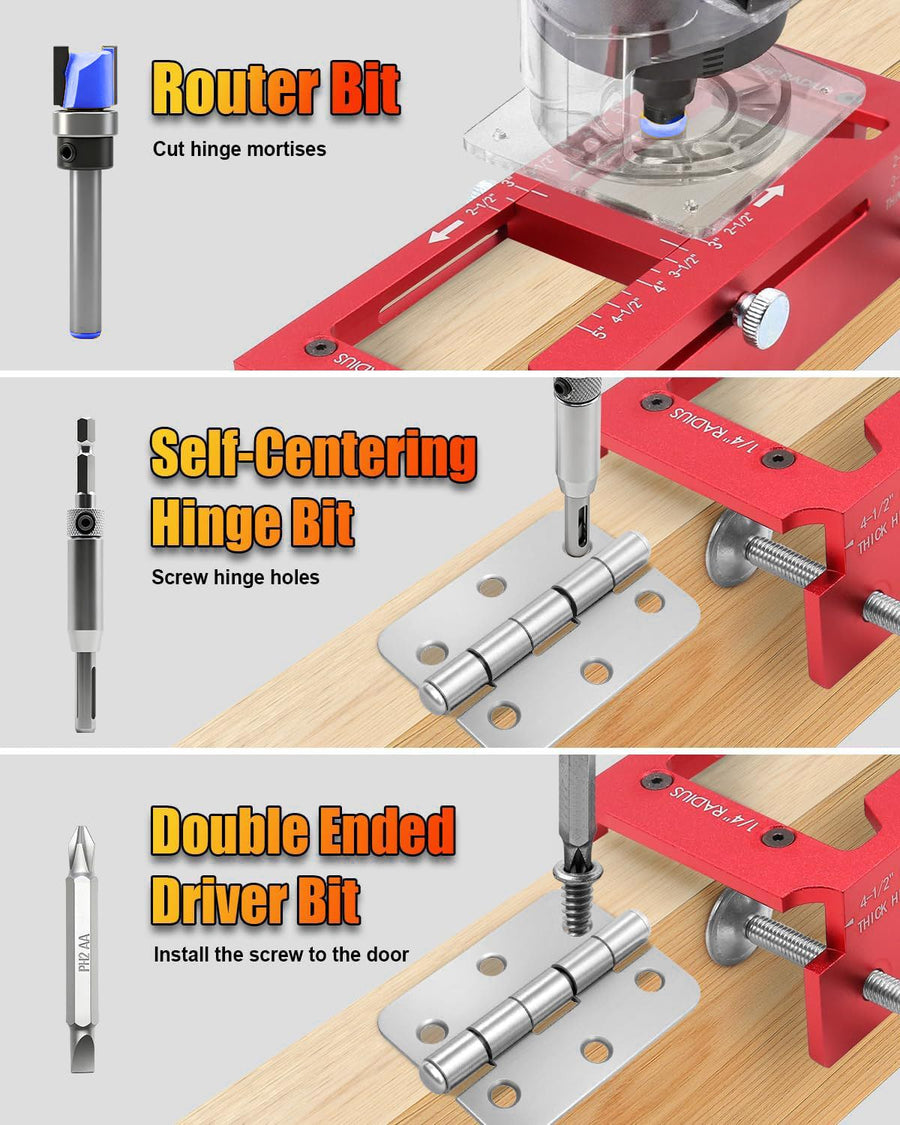

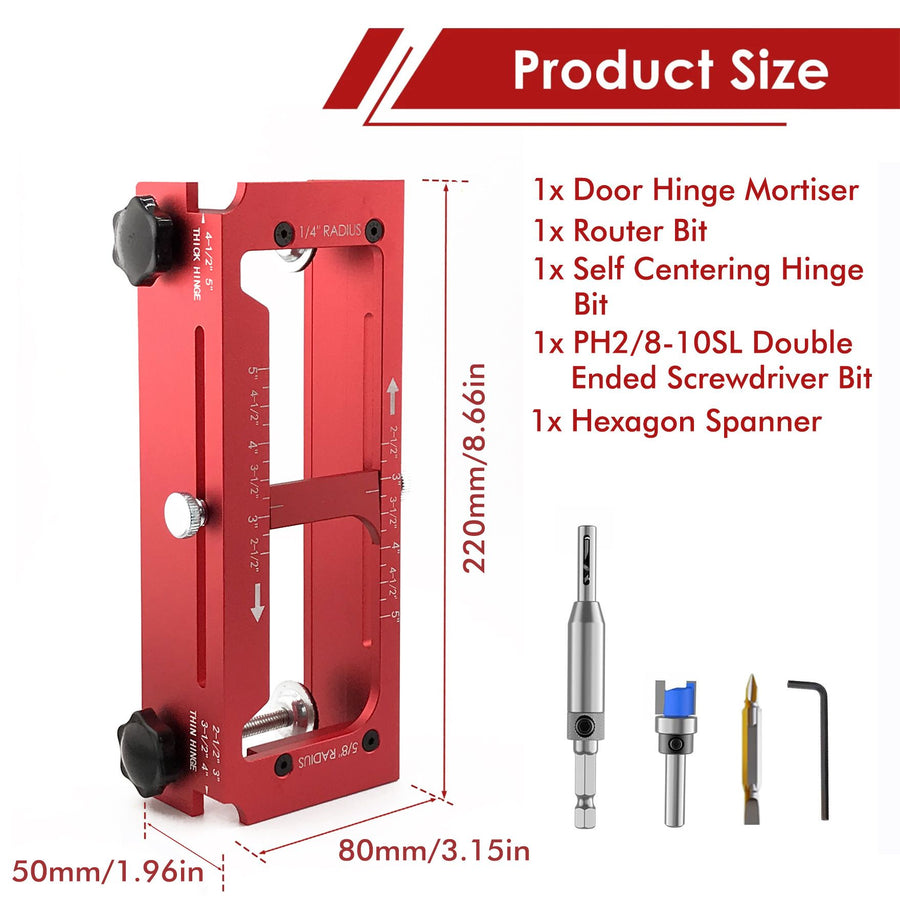

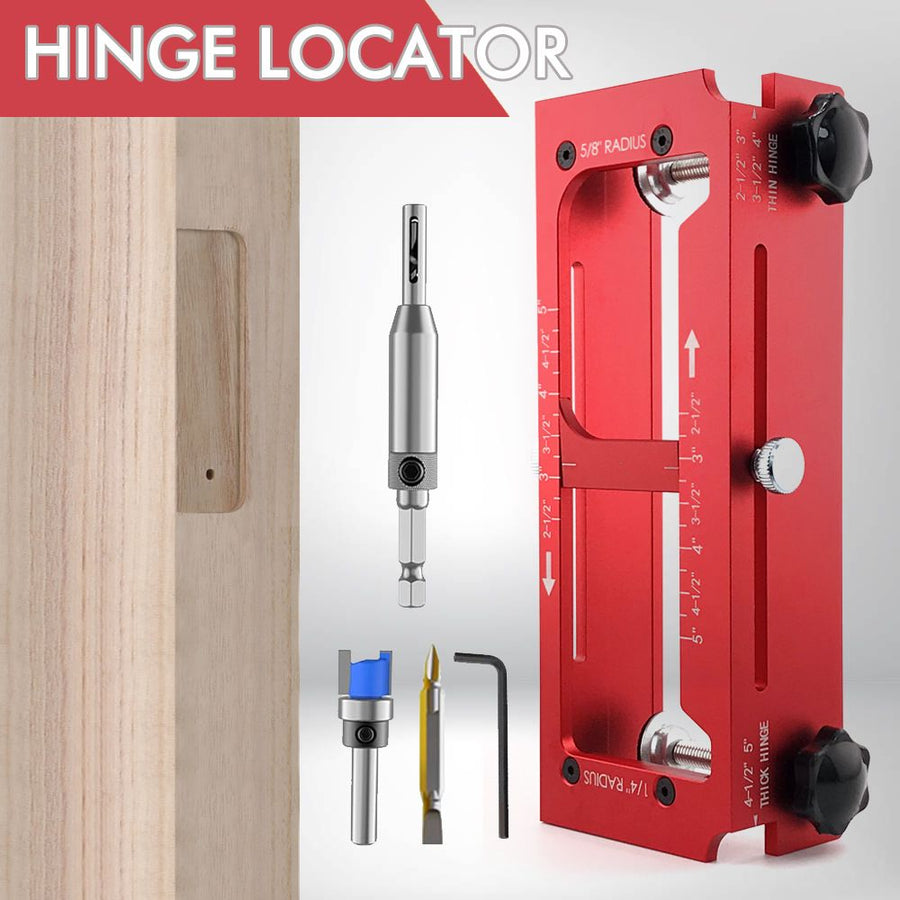

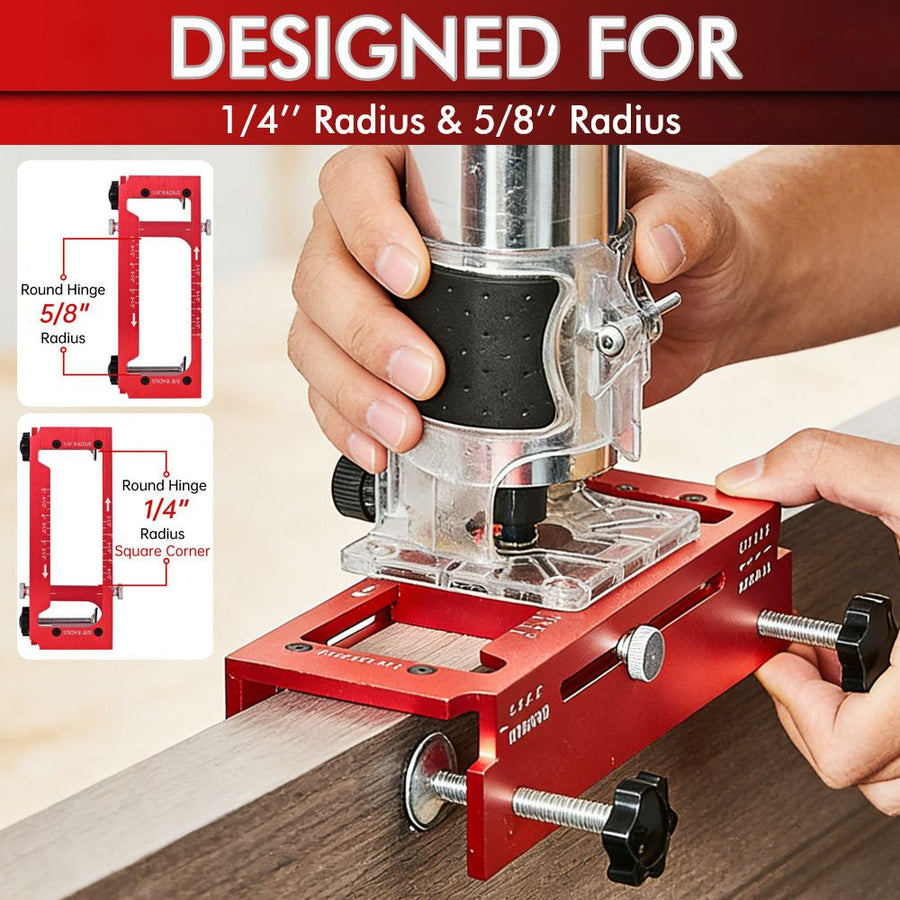

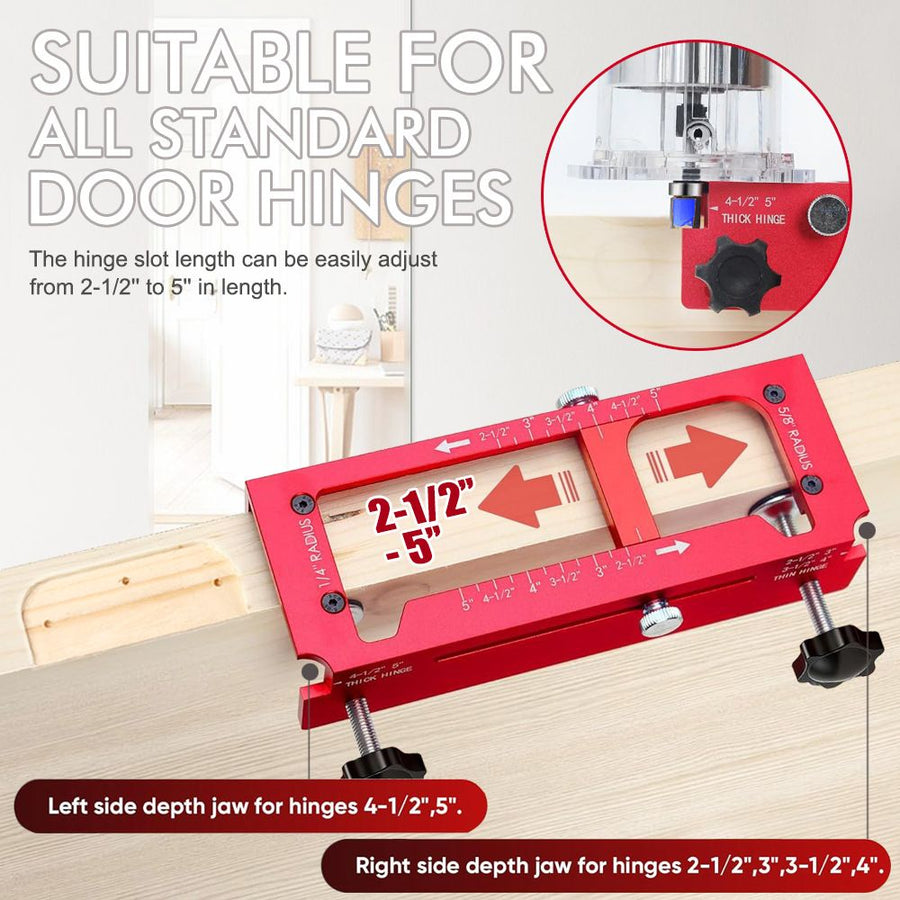

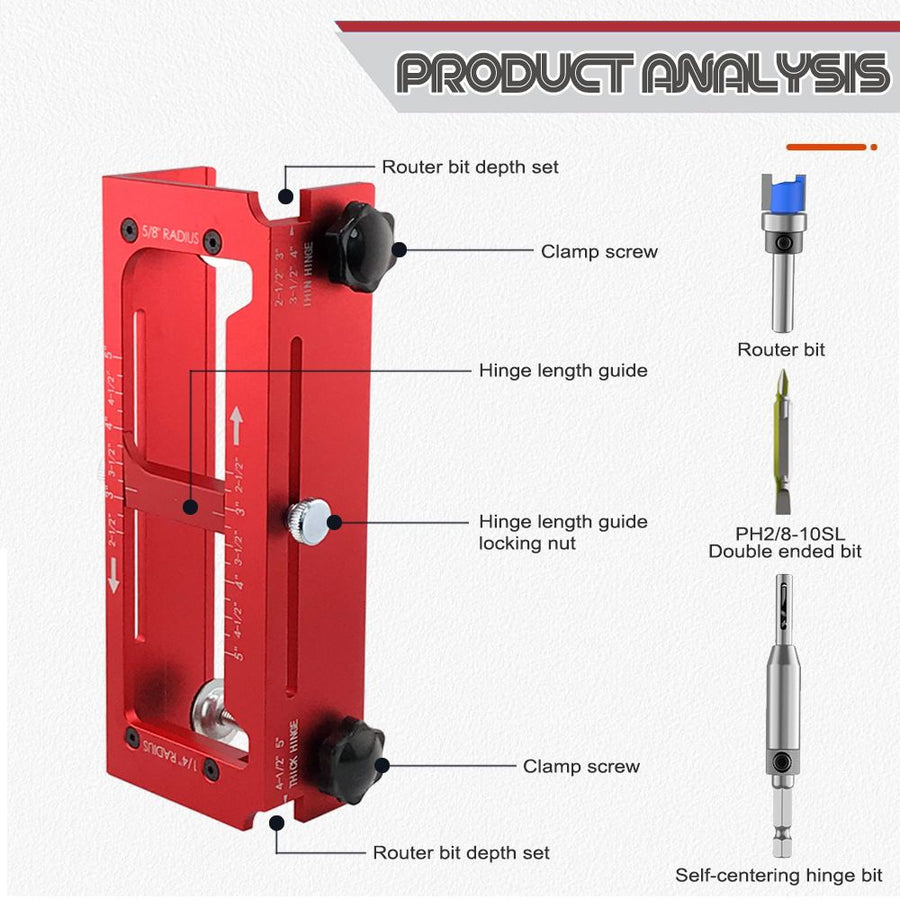

This versatile tool accommodates standard door hinges from 2-1/2 inches to 5 inches, supporting 1/4-inch radius, 5/8-inch radius, and 90-degree square corner configurations. Whether you are installing new doors or replacing old hinges, this locator helps you rout clean hinge mortises, drill screw holes accurately, and position hinges without guesswork. The included kit comes with a trimmer router bit, self-centering hinge drill bit, double-ended screwdriver bit, and hex wrench, giving you everything you need to get started right away. Measure twice, cut once – and with this jig, your first measurement will be spot on.

By keeping the hinge mortise and screw holes perfectly aligned, this tool reduces installation time and minimizes costly mistakes. The adjustable design lets you fine-tune the fit for different hinge sizes and door styles, making it a must-have for cabinet makers, carpenters, and DIY renovators. Its compact footprint and rugged build mean it can handle job site conditions while still delivering the precision you expect from a professional-grade accessory.

Key Features

Important Notes
