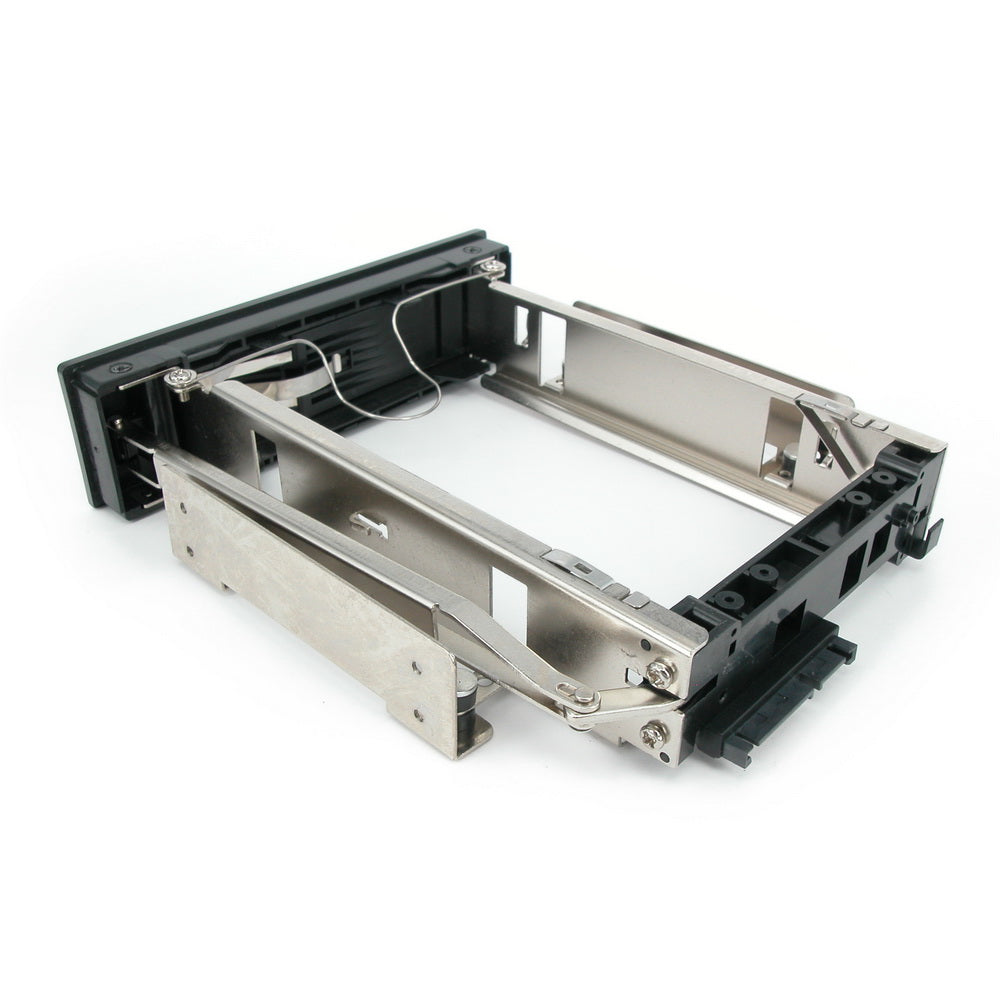

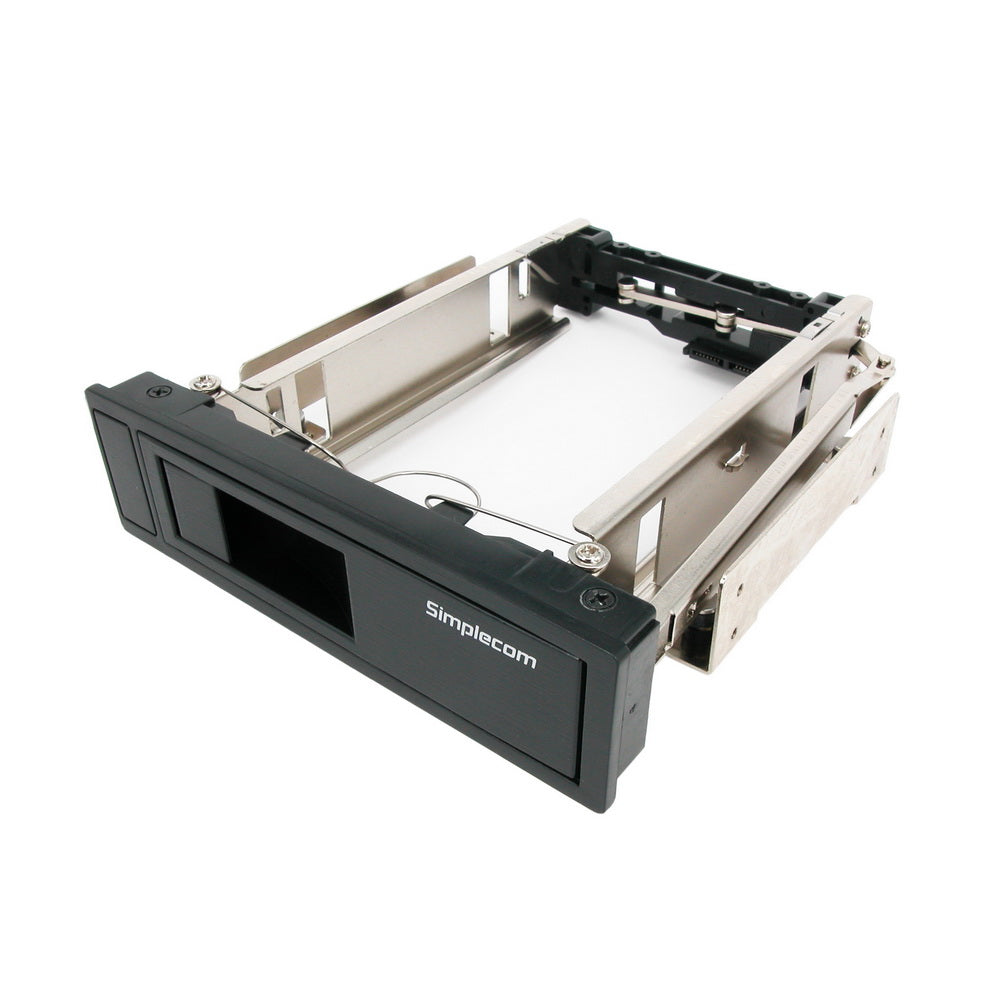

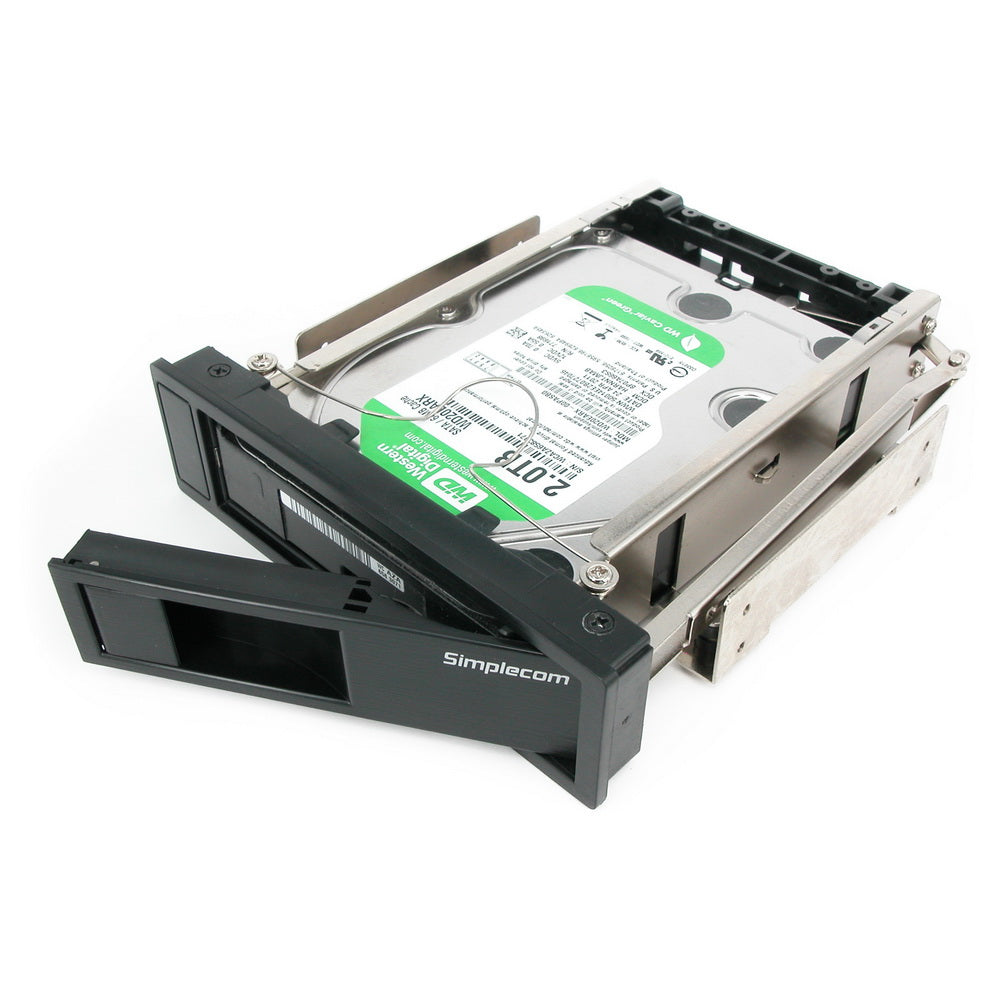

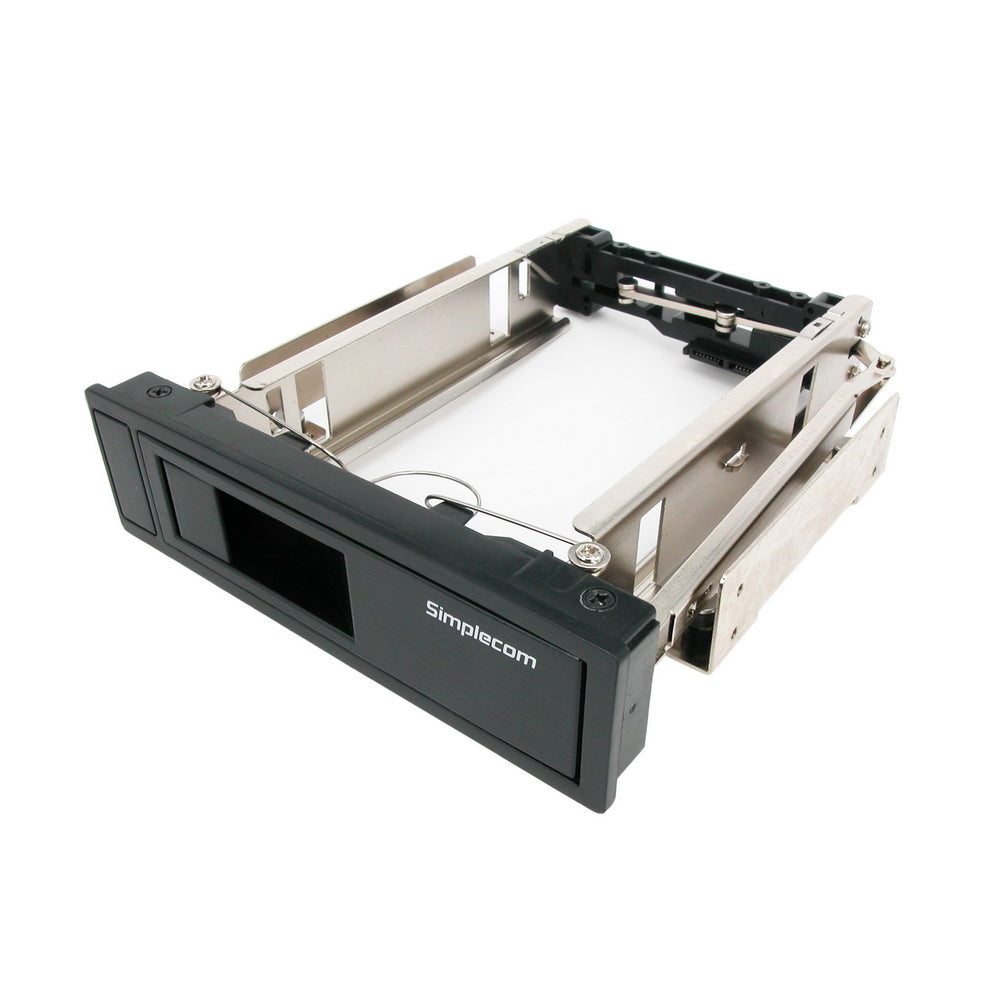

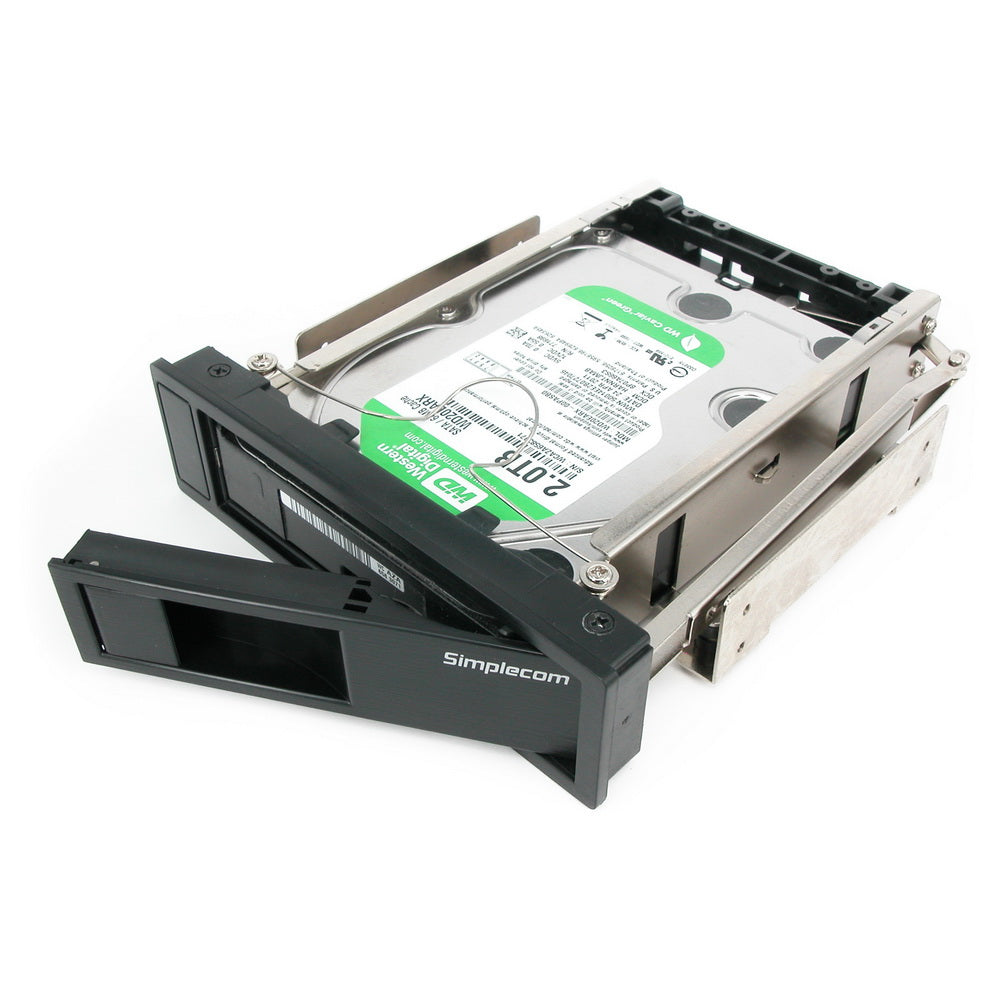

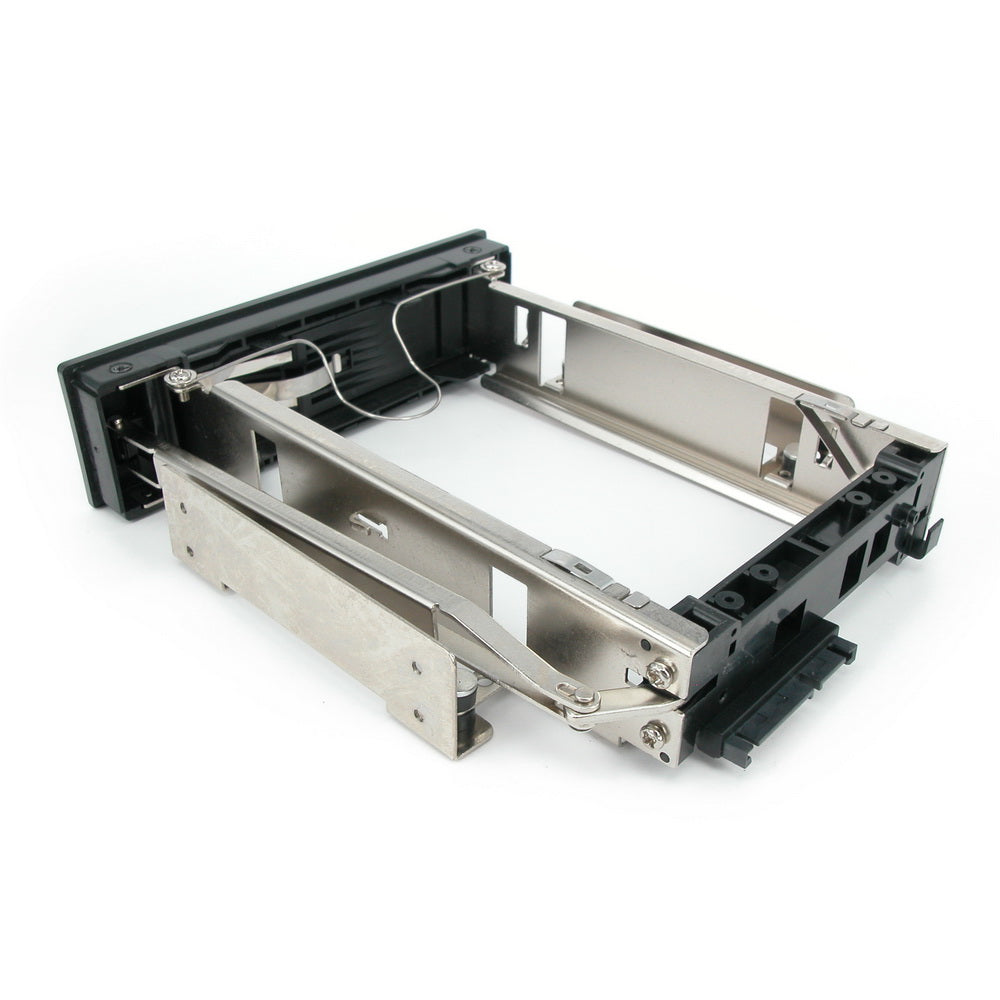

Simplecom SC314 Internal 5.25" Bay Mobile Rack 3.5" SATA HDD Backplane Enclosure

The SC314 SATA Mobile Rack lets you turn a standard 5.25 inch CD-ROM space into a 3.5 inch hard drive dock. It features a SATA interface to deliver the performance you expect from SATA, SATA II, and SATA III hard drives. Tool Free allow mounting or unmounting Hard Drive without Tools and Screws in seconds. Designed to provide a durable and reliable operation, the mobile rack features high quality solid metal construction.

With support for SATA3 up to 6Gbps, this mobile rack backplane is ideal for RAID installations to ensure maximum performance and versatility for enhanced storage applications. Trayless design with hot swapping that makes it the ideal solution for quick and easy drive removals and insertions as part of a system building process, or integration into rackmount systems or industrial environments.

Feature

Tool Free allow to mount or unmount 3.5” Hard Drive without Tools and Screws in Seconds

Holds a 3.5" SATA drive in a front accessible 5.25" bay

Trayless design, drives are not mounted into separate trays/enclosures

Supports 3.5" form factor SATA hard drives

Plug-and-Play and Hot-Swap compatible (for AHCI mode)

Stylish brushed Front Panel Design

Ideal for environments where drives need to be replaced/removed regularly

Specifications

Form Factor: 5.25 inch Optical Drive Bay

Supported HDD Type:3.5 inch SATA I/II/III (1.5/3.0/6.0 Gbps)

Insertion Rating: 50000+ Cycles

Hot Swap Capability: Yes

Material Type: Metal and Plastic

Operating Temperature: 0°C to 50°C

Compatibility: OS independent; No software or drivers required

Dimension: 184 x 149 x 42 mm

Package Contents

1x Internal 5.25" Bay Mobile Rack for 3.5" HDD

1x Screw Kit

1x User Manual
