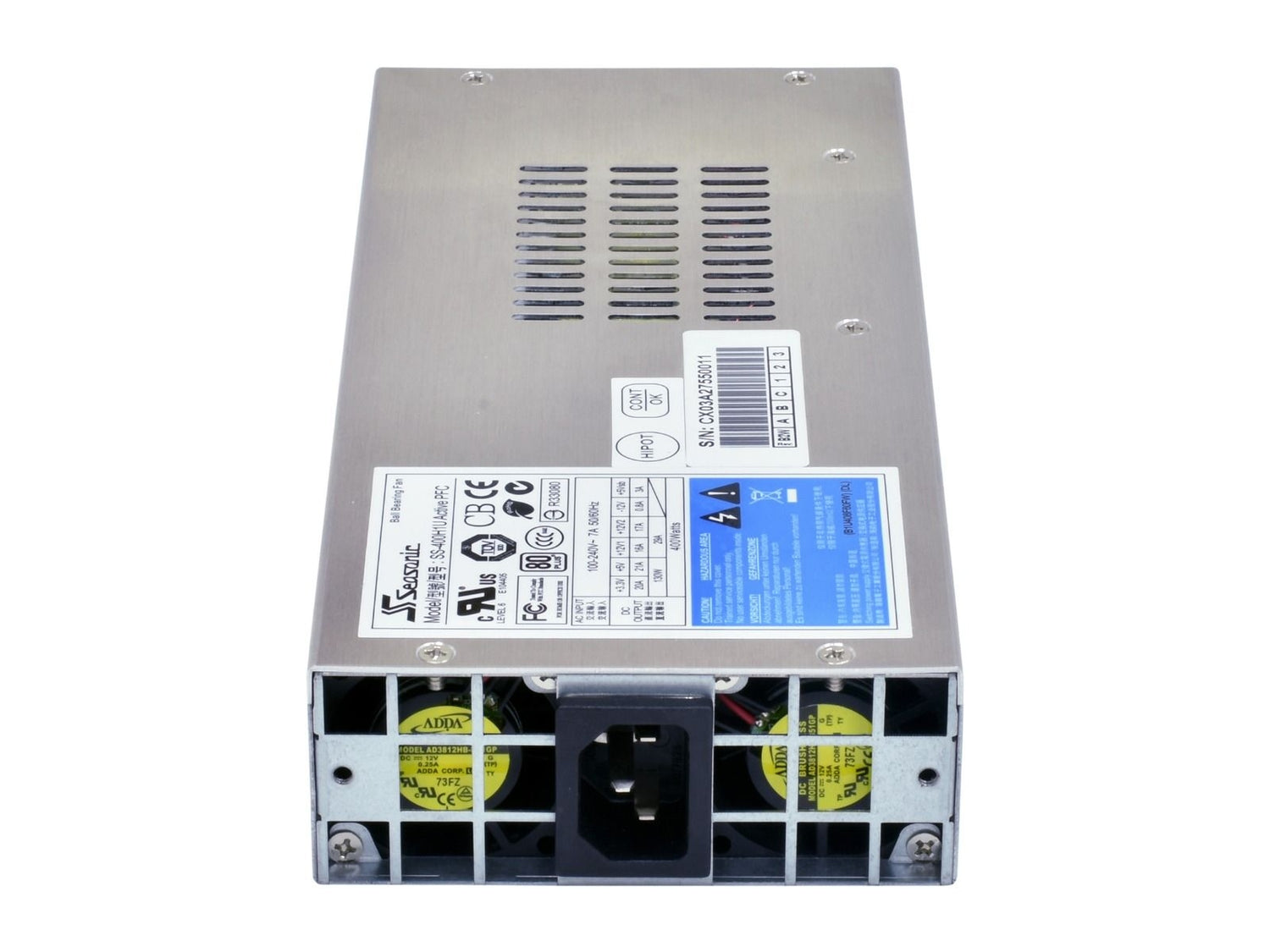

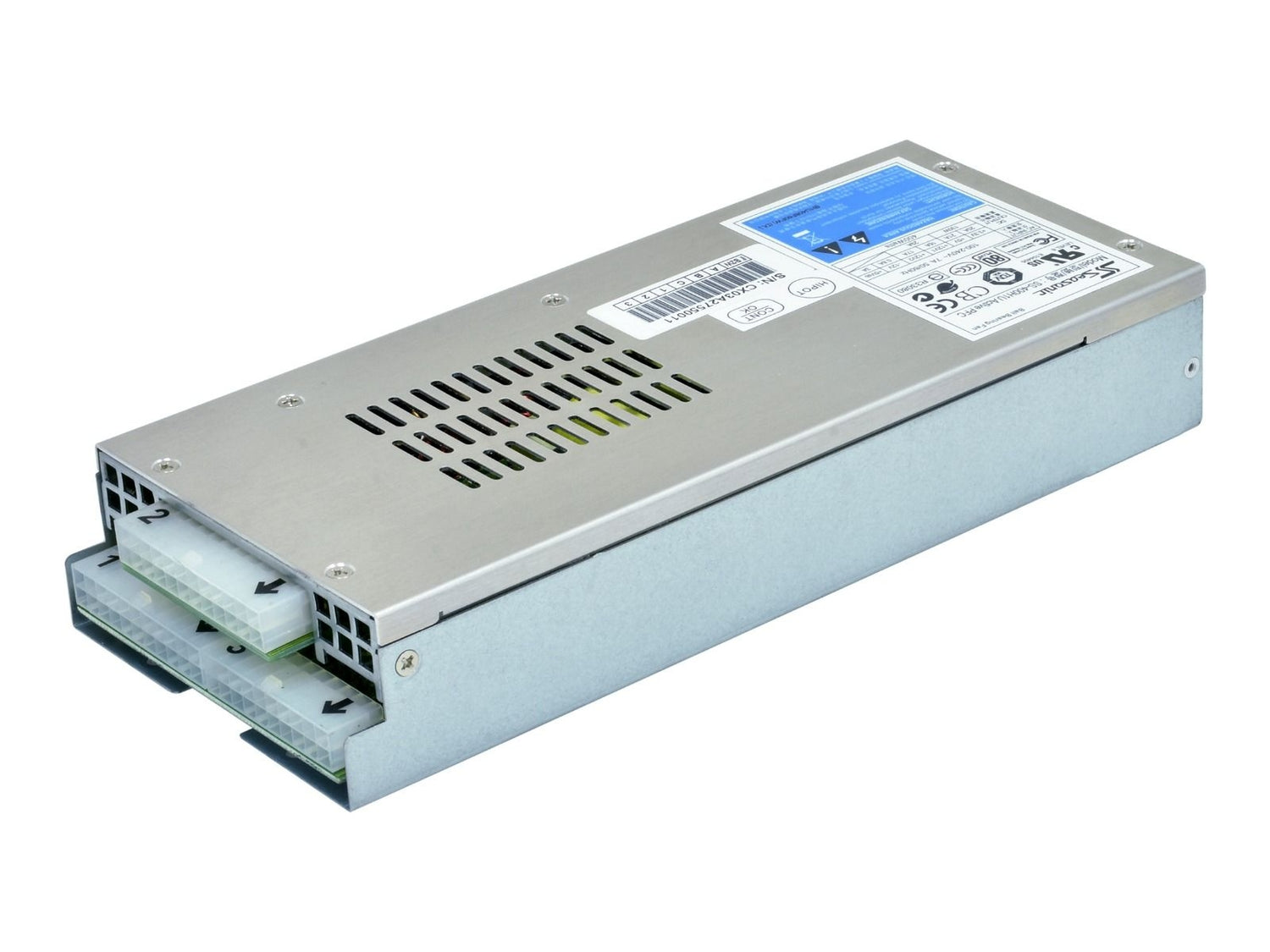

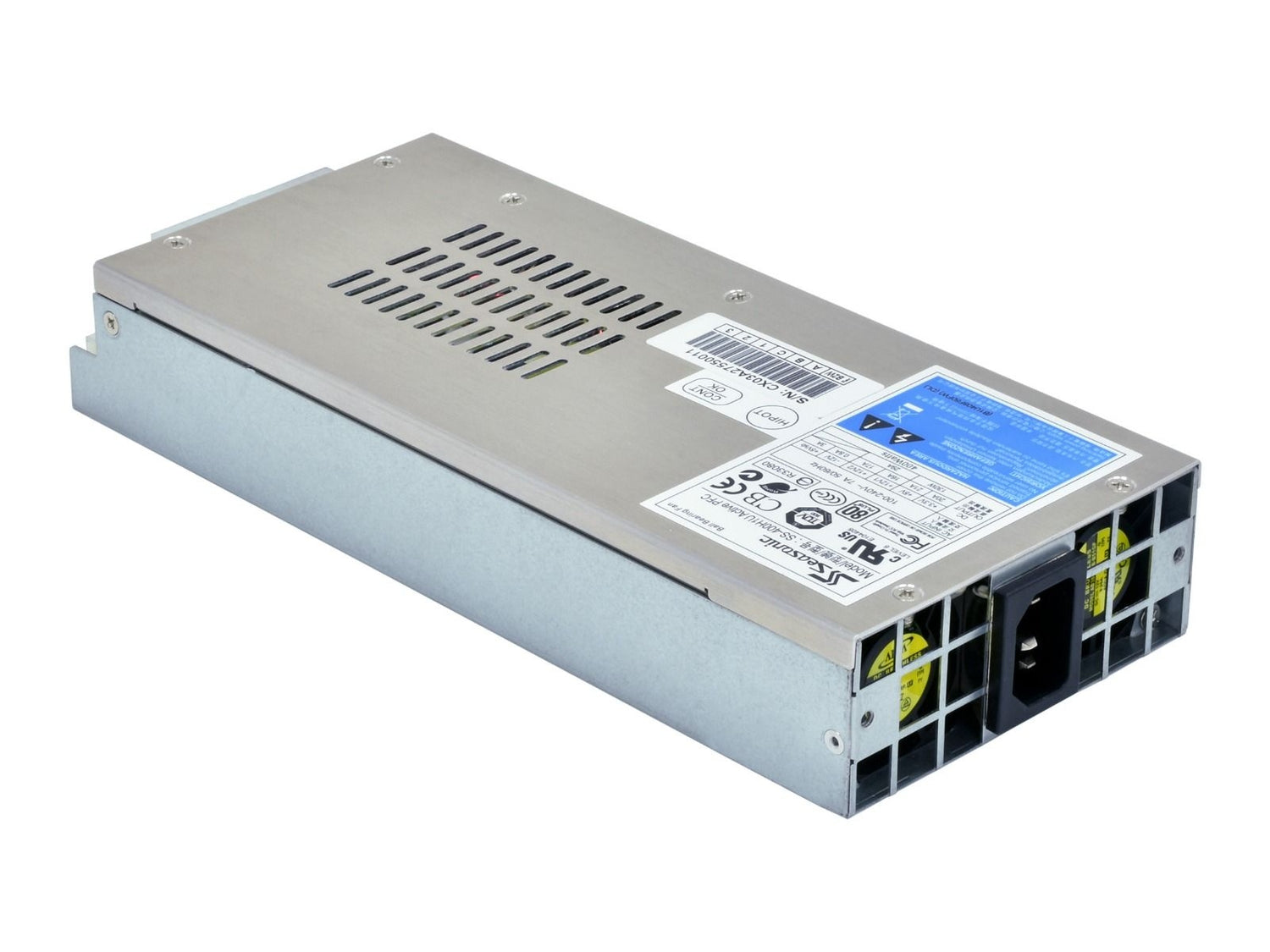

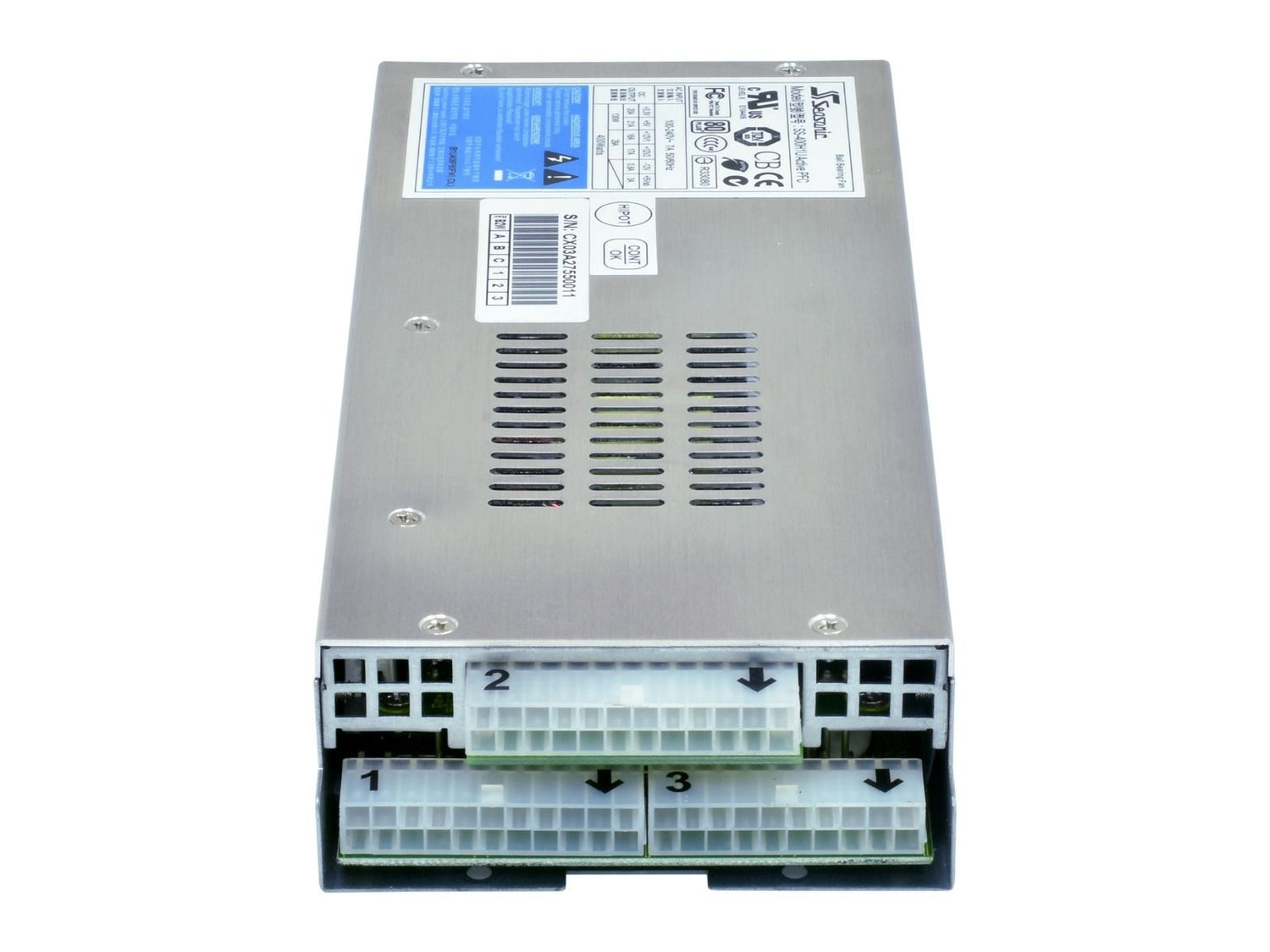

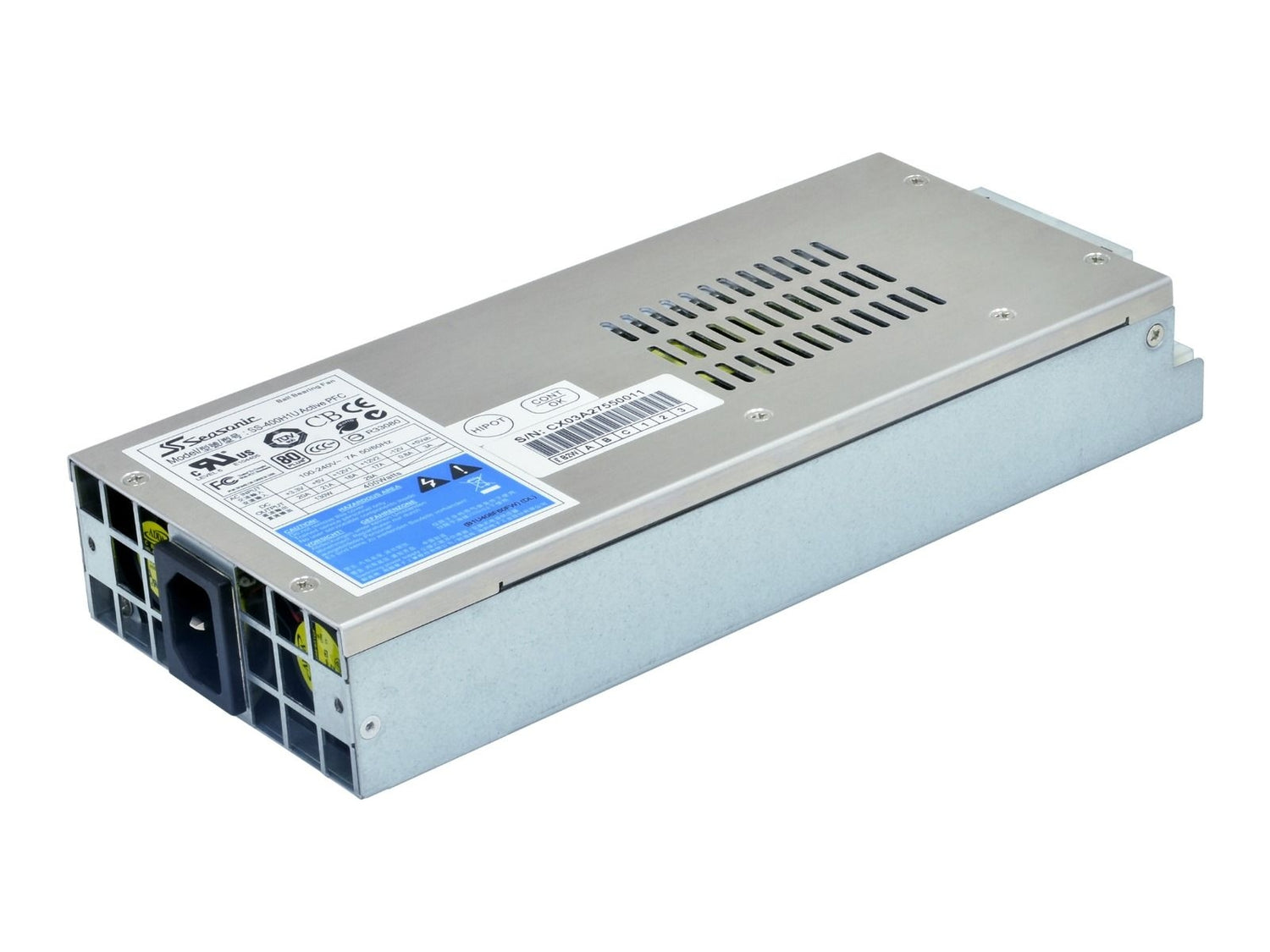

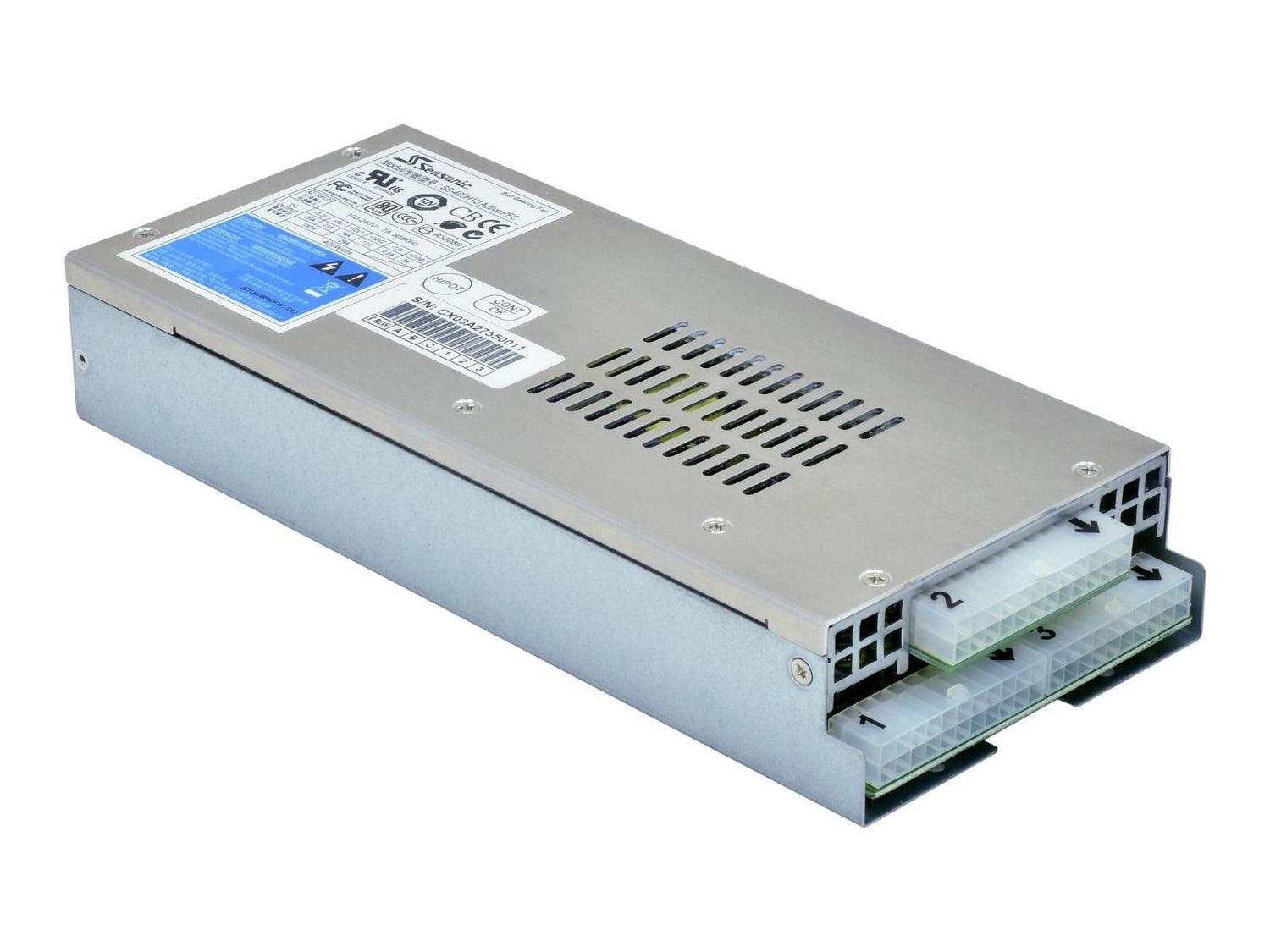

Seasonic SS-460H1U H1U 1U POWER SUPPLY

Name: Seasonic SS-460H1U H1U 1U POWER SUPPLY
Brand: Seasonic
SKU: V28-PSUSEA460H1U80P
Price: 273.99 AUD
Availability: InStock

Seasonic

$273.99$351.95Save $77.96 (22%)

Inc. GST. Free shipping on this item.

Secure checkout Visa Mastercard AMEX PayPal Shop Pay

Fast Dispatch

Leaves warehouse in 1-2 business days

14-day returns Change of mind

1-year warranty ACL backed

Aussie owned Expert support available

Description

This Seasonic industrial power supply is 80 PLUS® efficiency rated and it features a high reliability ball bearing fan. Fully modular cables and easy-swap connectors add a new dimension to its versatility, while the Seasonic Smart and Silent Fan Control (S2FC) system make it a silent performer. These units comply with the latest PFC harmonics (IEC1000-3-2 and EN61000-3-2 standards) and are protected against short circuit, over voltage and over power. On the 3.3 V rail there is no minimum load requirement for this unit to work properly.

Specifications
Input frequency	50 / 60 Hz
Efficiency (220 V AC - 240 V AC, full load)	83 % (typical)
Efficiency(100 V AC - 120 V AC, full load)	80 % (typical)
Dielectric withstand, input to frame/ground	1800 VAC, 1 sec
Dielectric withstand, input to output	1800 VAC, 1 sec
Line regulation	± 1 % (typical)
Load regulation	± 5 % (typical)
Cross regulation	± 5 % (typical)
MTBF, full load @ 25 °C ambient (excl. DC fan)	> 100,000 hours
Active Power Factor Correction	99 % (typical)

DC Outputs
+3.3 V	+5 V	+12 Combined	-12 V	+5 V_sb	Total continuous power	Input Type
20 A	21 A	34 A	0.8 A	3 A	460 W	100–240 VAC
130 W (max.)		408 W	9.6 W	15 W	460 W	100–240 VAC
