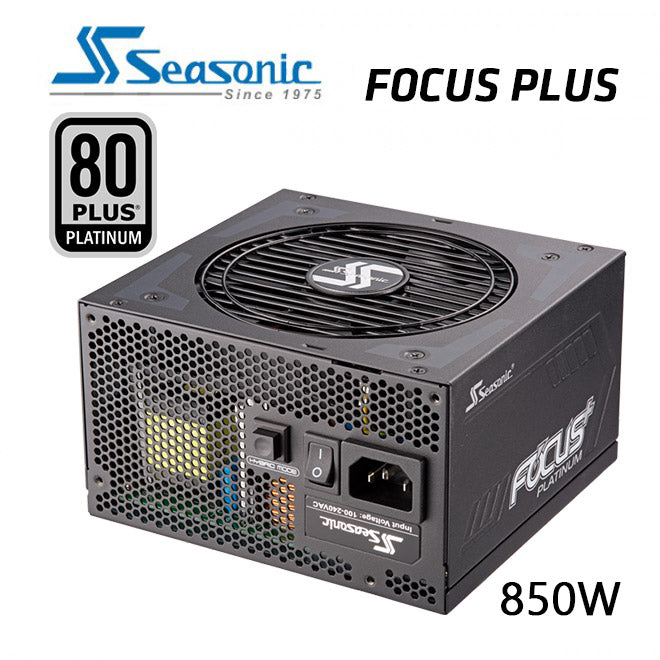

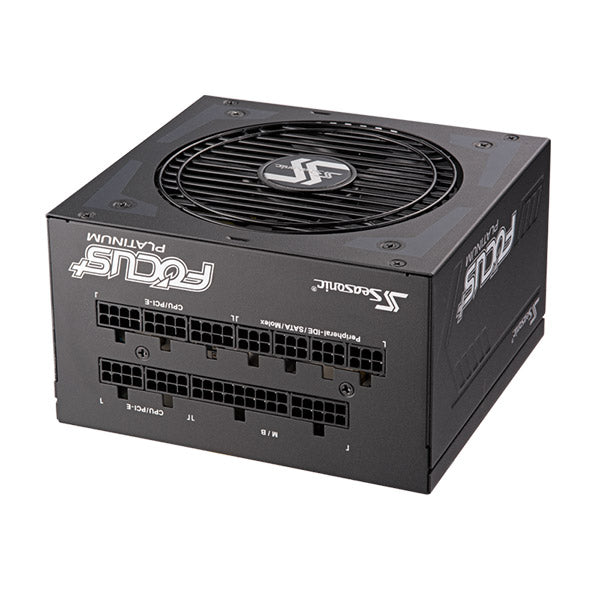

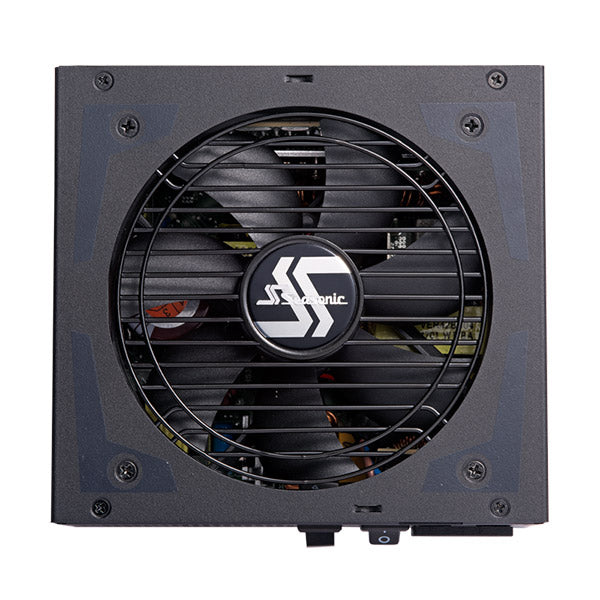

SeaSonic 850W FOCUS PLUS Platinum PSU (SSR-850PX)

Name: SeaSonic 850W FOCUS PLUS Platinum PSU (SSR-850PX)
Brand: Seasonic
SKU: V28-PSUSEA850PXFOCUS
Price: 368.99 AUD
Availability: OutOfStock

Seasonic

$368.99$472.95Save $103.96 (21%)

Inc. GST. Free shipping on this item.

Out of stock

Secure checkout: Visa Mastercard AMEX PayPal Shop Pay

Shipping Calculator

Delivering to your area Change

14-day returns Change of mind

1-year warranty ACL backed

Aussie owned Expert support available

Description

The newly upgraded FOCUS PX and GX series are the successors to the FOCUS PLUS Series, which became an instant top seller in the power supply market after its launch in 2017. In 2019, Seasonic engineers have made improvements to the popular series such as removing the inline capacitors on the supplied cables. Besides the small change in the series naming, the PSU housing and its packaging are also updated to be in line with the concept of the OneSeasonic Initiative.

80 PLUS Platinum certified
Compact Size - 140 mm deep
Tight Voltage Regulation
Cable-free Connection Design
S3FC - Fanless until 30 % load
Multi-GPU setup
Gold plated connectors
10 years warranty

Specifications

Technical Specifications
80PLUS		Platinum
Cybenetics Efficiency Level		TBA
Cybenetics Noise Level		TBA
Form Factor		Intel ATX 12 V
Dimensions		140 mm (L) x 150 mm (W) x 86 mm (H)
Fan Information	Fan Size	120 mm
	Fan Control	S3FC - Fanless until 30 % load
	Fan Bearing	Fluid Dynamic Bearing
	Life Expectancy	50,000 hours at 40 °C, 15 % - 65 % RH
Cable Information	Modularity	Fully Modular
Cable Information	Cable type	Flat black cables
Electrical Features	Operating Temperature	0 - 50 °C (derating from 100 % to 80 % from 40 °C to 50 °C)
	MTBF @ 25 °C, excl. fan	100,000 hours
	AC Input	Full Range
	Protection	OPP, OVP, UVP, OCP, OTP, SCP
Safety and Environmental	Safety and EMC	cTUVus, TUV, CB, CCC, BSMI, EAC, CE
Safety and Environmental	Environmental Compliance	Energy Star, RoHS, WEEE, ErP Lot 6, REACH
Warranty		10 Years

Power Output
AC Input	Voltage: 100 V - 240 V
	Current: 11 - 5.5 A
	Frequency: 50 Hz - 60 Hz
DC Output	Rail	+3.3 V	+5 V	+12 V	-12 V	+5 VSB
	Maximum Power	20 A	20 A	70 A	0.3 A	3 A
	Maximum Power	100 W		840 W	3.6 W	15 W
	Total continuous power	850 W
