Lockmaster Solar Sliding Gate Opener Kit, 40W Panel, 6m 600kg Automatic
Inc. GST.
10+ bought in Australia in the past month
- Max gate weight: 600kg
- Max gate length: 6m
- Solar panel: 24V / 40W
- Power source: Solar-powered with 2 spare batteries (12V 20Ah)
- Remotes: 3 programmable, 30m operating range
Shipping Calculator
Description
+
The Lockmaster Solar Sliding Gate Opener Kit is an automatic, solar-powered opener for sliding gates up to 6m long and 600kg. It includes a 40W solar panel and 3 programmable remote controls for effortless gate control.
Key features

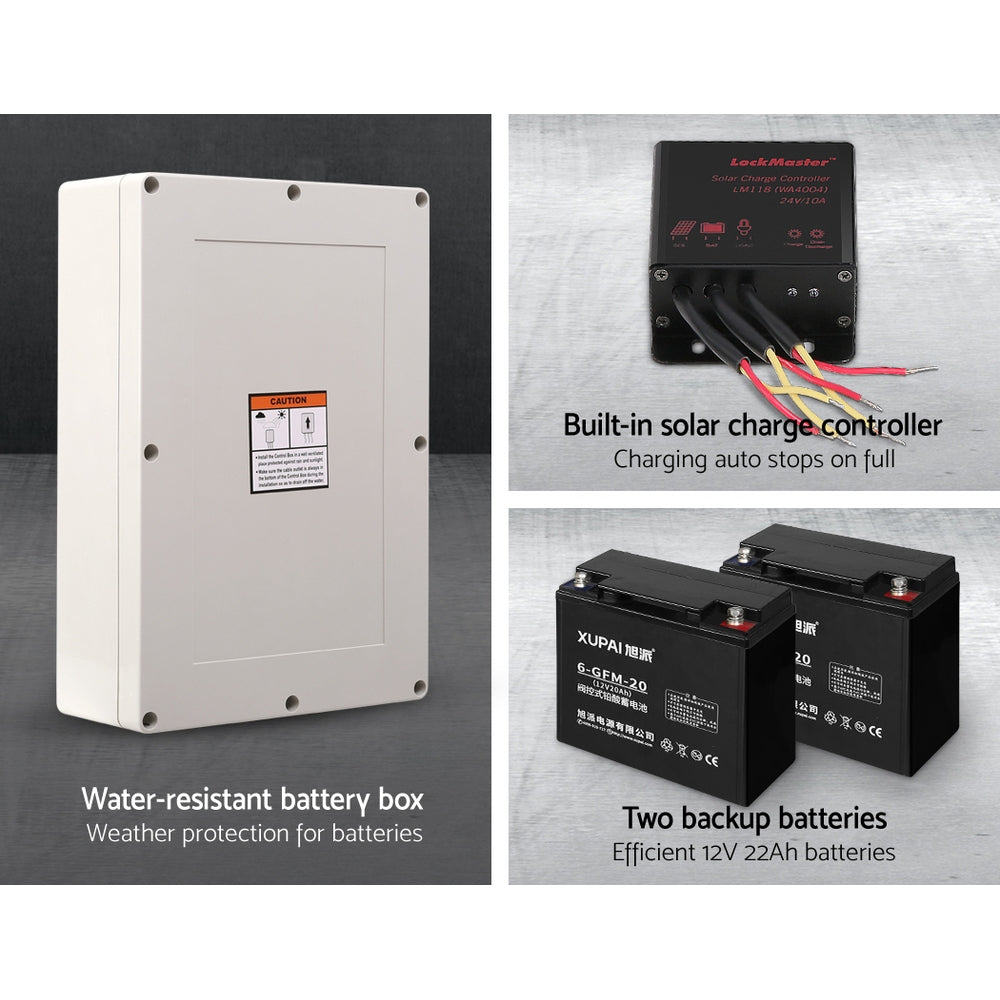

- Solar-powered, with a 40W solar kit included as main power and 2 spare batteries (12V 20Ah)
- Gentle start and stop features to help the lifespan of your gate
- Automatically stops or reverses when an obstruction is detected
- Midway mode lets the gate pause at a predetermined midway point
- Programmable auto-close, adjustable between 0-99s

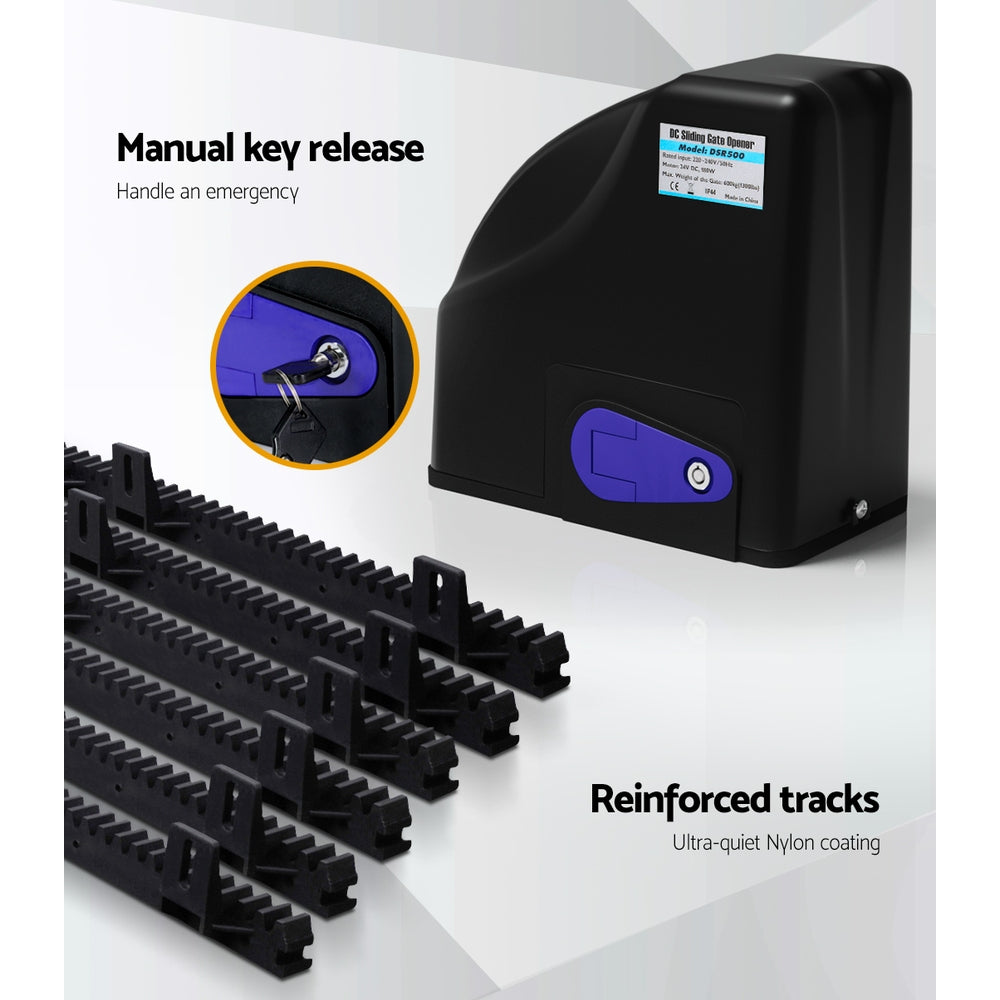

- Emergency release key in case of power failure
- Weather and dust resistant control box
- Suits steel, wood and vinyl gates in panel, tube and chain-link styles
Specifications

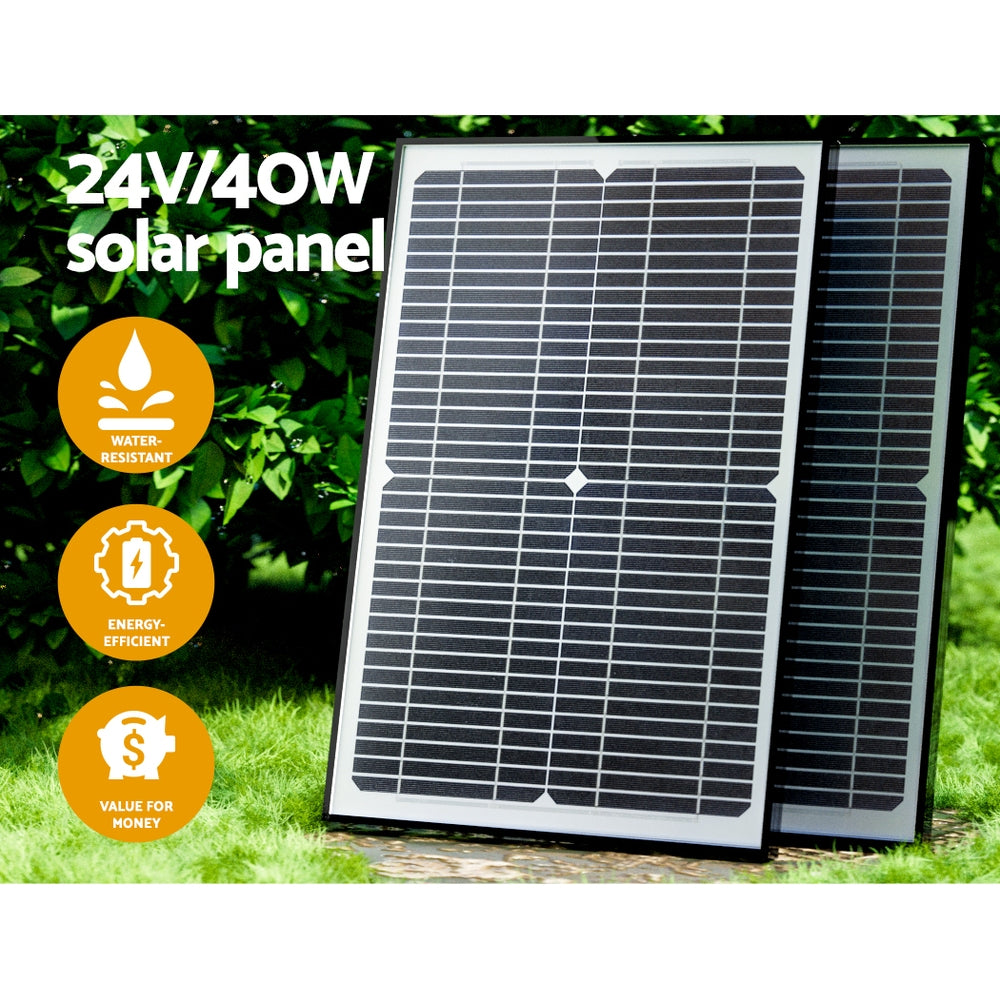

- Solar panel: 24V / 40W
- Motor: 24V DC, 180W
- Max gate weight: 600kg
- Max gate length: 6m
- Gate moving speed: 12.6m/min
- Protection class: IP44
- Remote operating range: 30m

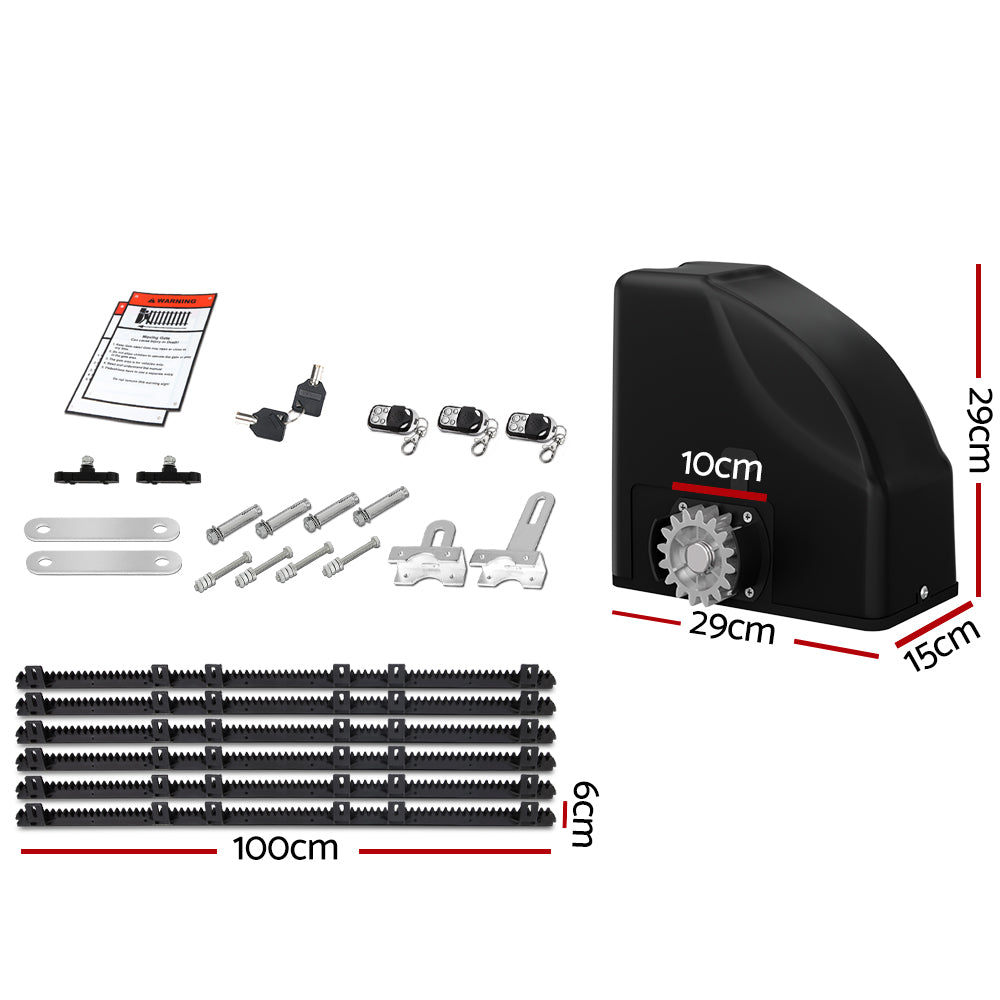

- Control box dimensions: 29cm x 29cm x 15cm
- Assembly required: Yes (5 packages)

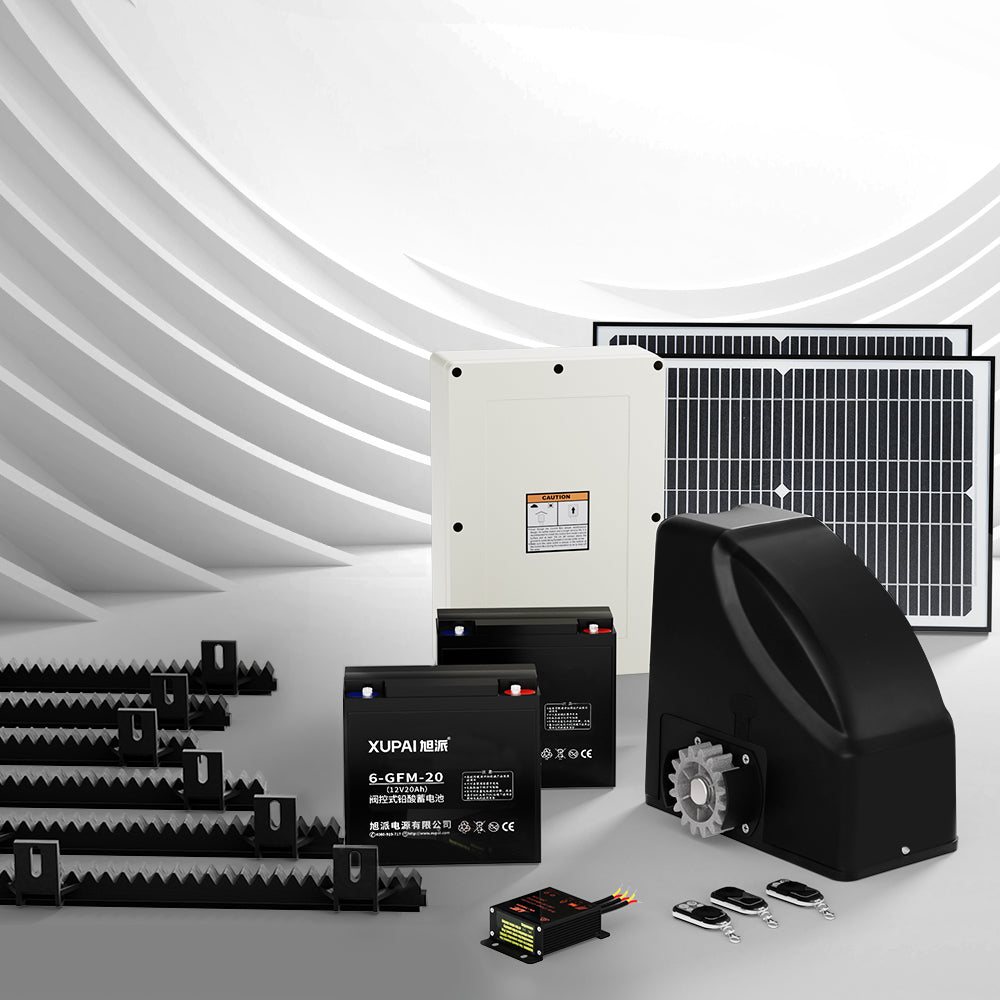

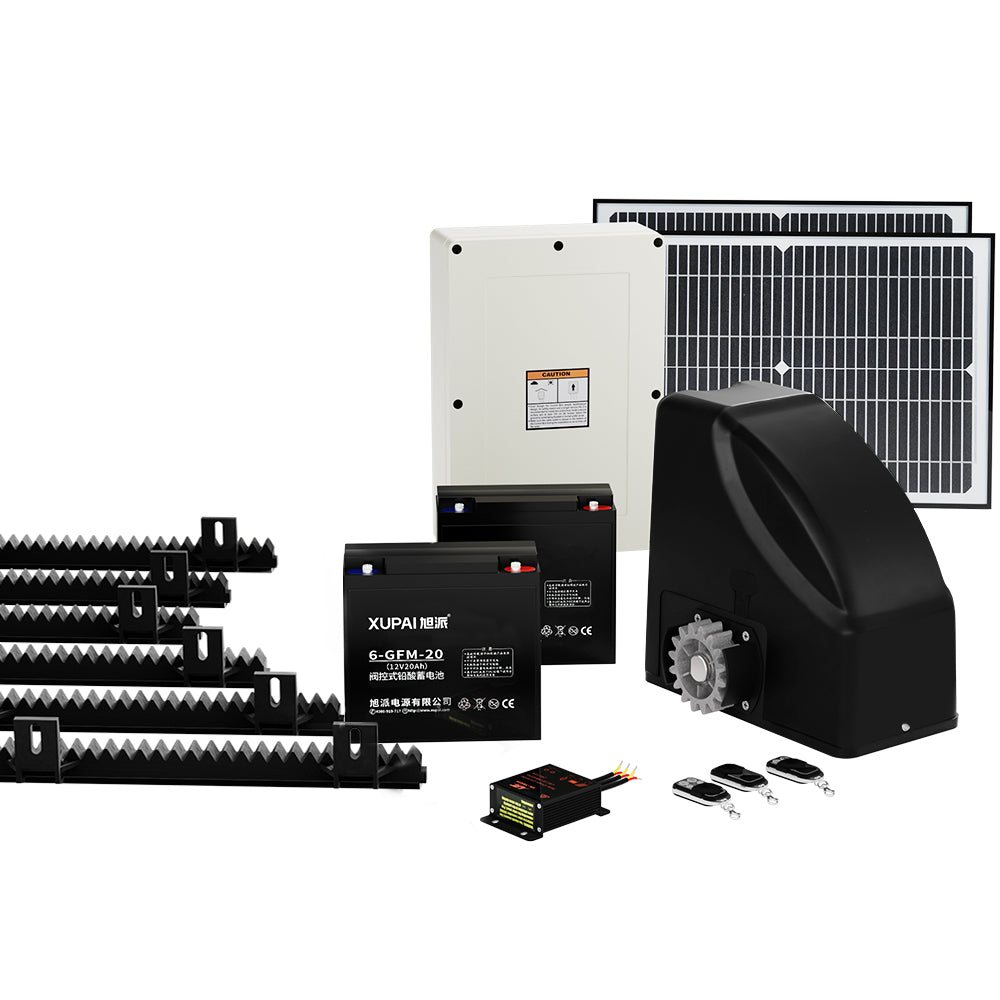

What's included
- Gate Opener x 1
- 1M Rail x 6
- Remote Control x 3
- 40w Solar Panel x 1
- Installation Accessories x 1 set
- User Manual x 1 set
The included 40W solar kit acts as main power. Mains connection with solar backup is recommended only for the 10W or 20W solar kits. It comes with a 1 year warranty.
Specifications
+
| Type | Sliding gate opener kit |
|---|---|
| Power source | Solar-powered with 2 spare batteries (12V 20Ah) |
| Solar panel | 24V / 40W |
| Motor | 24V DC, 180W |
| Max gate weight | 600kg |
| Max gate length | 6m |
| Gate moving speed | 12.6m/min |
| Remotes | 3 programmable, 30m operating range |
| Auto-close | Programmable, adjustable between 0-99s |
| Protection class | IP44 |
| Gate types | Steel, wood, vinyl gates |
| Assembly | Required, 5 packages |
| What's in the box | Opener x 1, 1M Rail x 6, 3 remotes, 40w solar panel, accessories, manual |
| Warranty | 1 year |
Questions & answers
+
What gate size can it handle?
It handles gates weighing up to 600kg and up to 6m long.
Does it need mains power?
The included 40W solar kit acts as the main power. Connecting to the mains with the solar kit as backup is recommended only for the 10W or 20W solar kits.
What safety features does it have?
It automatically stops or reverses when an obstruction is detected, and has an emergency release key in case of power failure.
What gate types does it suit?
It suits steel, wood and vinyl gates in panel, tube and chain-link styles.
What is included and what delivery applies?
It includes the gate opener, 6 x 1M rails, 3 remote controls, a 40W solar panel, installation accessories and a user manual. Assembly is required. It dispatches in 1-3 business days, delivery takes 2-8 business days to metro areas, and 14-day returns apply. It has a 1-year warranty.
